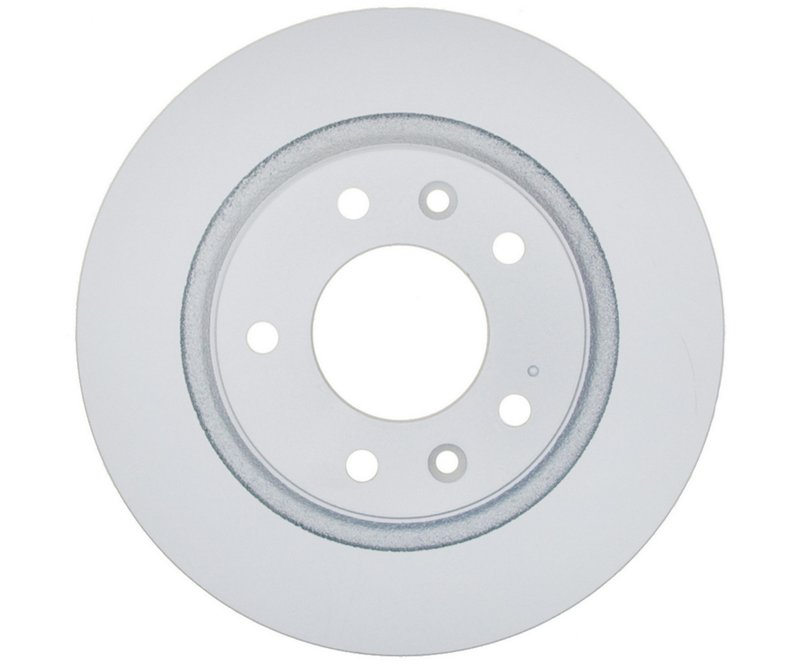

Raybestos 680958 Disc Brake Rotor - Rear

Overview of Raybestos 680958 Disc Brake Rotor

The Raybestos Specialty - Street Performance; Coated Rotor 680958 is engineered for reliable braking performance on Ford Fusion and Lincoln MKZ models. This solid, smooth-surfaced disc brake rotor is designed to meet specific thickness and diameter requirements for optimal fit and function.

• Compatible with Ford Fusion and Lincoln MKZ vehicles
• Part number 680958 for precise identification
• Solid rotor design with smooth surface type
• Nominal thickness of 0.429 inches (10.900 mm)
• Discard thickness of 0.315 inches (8.000 mm)
• Outside diameter of 11.024 inches (280.000 mm)
• Inside diameter of 7.480 inches (190.000 mm)
• Five mounting bolt holes with 4.500 inch (114.300 mm) bolt circle diameter
• Overall height of 1.604 inches (40.750 mm)
• Center hole diameter of 2.835 inches (72.000 mm)

Detailed Product Description

This Raybestos disc brake rotor, part number 680958, is a solid rotor designed for street performance applications on Ford Fusion and Lincoln MKZ models. The rotor features a smooth surface type that ensures consistent pad contact and braking efficiency. With a nominal thickness of 0.429 inches and a discard thickness of 0.315 inches, this rotor maintains structural integrity throughout its service life. The outside diameter measures 11.024 inches, while the inside diameter is 7.480 inches, providing a precise fit for the specified vehicles. The rotor includes five mounting bolt holes arranged on a 4.500 inch bolt circle diameter, matching factory specifications for easy installation. The overall height of 1.604 inches and center hole diameter of 2.835 inches further ensure compatibility with the brake assembly.

Specialty - Street Performance; Coated Rotor Line

The Raybestos Specialty - Street Performance; Coated Rotor line is designed to provide enhanced durability and corrosion resistance for street-driven vehicles. The coating helps protect the rotor surface from rust and environmental damage, extending the rotor's usable life. This product line targets drivers who require dependable braking performance under typical street conditions, making it suitable for Ford Fusion and Lincoln MKZ owners seeking reliable replacement rotors.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Ford Fusion and Lincoln MKZ
• Addressing brake pulsation caused by uneven rotor surfaces
• Resolving noise issues related to rotor surface imperfections
• Improving braking consistency after rotor thinning or damage
• Preventing corrosion-related rotor degradation with coated surface

Installation Notes and Tips

• Verify rotor thickness before installation; replace if below discard thickness of 0.315 inches
• Ensure mounting bolt holes align with vehicle specifications (5 holes, 4.500 inch bolt circle)
• Clean rotor surface and hub mounting area to prevent uneven contact
• Torque mounting bolts to manufacturer specifications for secure fit
• Inspect brake pads and replace if worn to maintain optimal braking performance

Quality Assurance and Warranty

Raybestos rotors are manufactured to meet or exceed OEM standards for fit, form, and function. The Specialty - Street Performance; Coated Rotor line undergoes rigorous quality control to ensure durability and performance. While specific warranty details for part number 680958 should be confirmed with the supplier, Raybestos typically offers limited warranties covering defects in materials and workmanship.
