Part #: 681013R

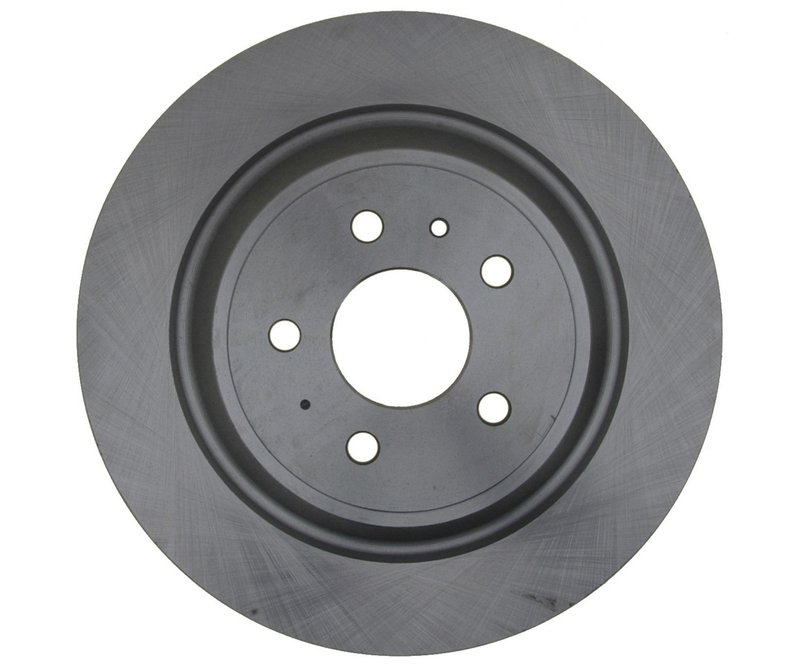

Raybestos 681013R Disc Brake Rotor - Rear

R-Line, Rear
36 vehicles fit this part
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$57.76Free Shipping
Free ShippingNo Cost to Continental U.S.
Free Returns*Wrong fit? No cost
60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
In Stock · Ready To Ship Most orders ship same-day if ordered before 1pm CST.
OE Direct Replacement — Bolt-on fit, no modifications needed
R-Line, Rear
Fitment: Ford and Lincoln, Fusion, Escape, MKC, and MKZ
Easy Returns — Return within 60 days for a full refund
Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? See all Disc Brake Rotor options

Overview of Raybestos R-Line Disc Brake Rotor 681013R

The Raybestos R-Line Disc Brake Rotor 681013R is engineered for reliable braking performance on select Ford and Lincoln vehicles. Designed as a solid, conventional rotor, it offers consistent stopping power for models like the Ford Escape, Fusion, and Lincoln MKC and MKZ.

  • Part Number: 681013R
  • Brand: Raybestos R-Line
  • Type: Solid, conventional disc brake rotor
  • Mounting Bolt Hole Quantity: 5
  • Outside Diameter: 316.000 mm (12.441 inches)
  • Nominal Thickness: 11.000 mm (0.433 inches)
  • Discard Thickness: 9.500 mm (0.374 inches)
  • Center Hole Diameter: 63.500 mm (2.500 inches)
  • Mounting Bolt Hole Circle Diameter: 108.000 mm (4.252 inches)
  • Surface Type: Smooth
  • Compatible with Ford Escape, Fusion and Lincoln MKC, MKZ

Detailed Product Specifications

This Raybestos R-Line rotor features a solid, smooth surface design optimized for conventional braking systems. The rotor’s outside diameter measures 316 mm, providing ample surface area for effective brake pad contact. With a nominal thickness of 11 mm and a discard thickness of 9.5 mm, this rotor maintains structural integrity and safety throughout its service life. The 5-bolt mounting pattern with a 108 mm bolt circle diameter ensures secure fitment on compatible Ford and Lincoln models. The center hole diameter of 63.5 mm allows precise alignment on the hub, reducing vibration and promoting even wear.

R-Line Product Line Information

The Raybestos R-Line product line focuses on delivering dependable, OE-quality brake components designed to meet or exceed factory specifications. The R-Line rotors, including part number 681013R, are manufactured with attention to dimensional accuracy and material consistency, making them suitable replacements for original equipment on Ford Escape, Fusion, Lincoln MKC, and MKZ vehicles.

Applications and Problem Solving

  • Replacement for worn or warped rotors causing brake pulsation
  • Restores braking performance on Ford Escape, Fusion, Lincoln MKC, and MKZ
  • Addresses rotor thickness below discard limits to maintain safety
  • Eliminates noise and vibration from uneven rotor surfaces
  • Supports smooth braking response in conventional disc brake systems

Installation Notes and Tips

  • Verify rotor thickness before installation; replace if below 9.5 mm discard thickness
  • Ensure mounting surface and hub are clean and free of debris
  • Torque mounting bolts to manufacturer specifications for secure fitment
  • Inspect brake pads for wear and replace if necessary during rotor installation
  • Perform a brake system test after installation to confirm proper operation

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring consistent performance and durability. While specific warranty details for part number 681013R should be confirmed with the supplier, Raybestos typically offers coverage against defects in materials and workmanship. This rotor is designed to provide reliable service when installed and maintained according to vehicle manufacturer guidelines.

BrandRaybestos
Part Number681013R
PositionR-Line, Rear
Center Hole Diameter2.500
Center Hole Diameter63.500
Conventional Or Drum-In-Hat Type RotorConventional
Discard Thickness0.374
Discard Thickness9.500
Inside Diameter8.819
Inside Diameter224.000
Mounting Bolt Hole Circle Diameter4.252
Mounting Bolt Hole Circle Diameter108.000
Mounting Bolt Hole Quantity5
Nominal Thickness0.433
Nominal Thickness11.000
Outside Diameter12.441
Outside Diameter316.000
Overall Height2.004
Overall Height50.900
Solid Or Vented Type RotorSolid
Stud/Lug Hole Quantity5
Surface TypeSmooth

This part fits 36 vehicles. Search below:

YearMakeModelSubmodelLitersCylindersFuel TypePositionNotes
2020FordFusionEnergi TitaniumRearR-Line
2019FordEscapeRearR-Line
2019FordFusionEnergi TitaniumRearR-Line
2019LincolnMKCRearR-Line
2018FordEscapeRearR-Line
2018FordFusionS HybridRearR-Line
2018FordFusionSE HybridRearR-Line
2018LincolnMKCRearR-Line
2017FordEscapeRearR-Line
2017FordFusionEnergi SE2.0LL4RearR-Line
2017FordFusionEnergi Titanium2.0LL4RearR-Line
2017FordFusionEnergi Platinum2.0LL4RearR-Line
2017LincolnMKCRearR-Line
2016FordFusionEnergi TitaniumRearR-Line
2016LincolnMKCRearR-Line
2016LincolnMKZBaseRearR-Line
2016LincolnMKZHighRearR-Line
2016LincolnMKZReserveRearR-Line
2016LincolnMKZBlack LabelRearR-Line
2016LincolnMKZBlack Label HybridRearR-Line
2015FordFusionEnergi TitaniumRearR-Line
2015LincolnMKCRearR-Line
2015LincolnMKZBaseRearR-Line
2015LincolnMKZHighRearR-Line
2015LincolnMKZReserveRearR-Line
2015LincolnMKZBlack LabelRearR-Line
2015LincolnMKZBlack Label HybridRearR-Line
2014FordFusionEnergi SERearR-Line
2014FordFusionEnergi TitaniumRearR-Line
2014LincolnMKZBaseRearR-Line
2014LincolnMKZEliteRearR-Line
2014LincolnMKZHighRearR-Line
2014LincolnMKZReserveRearR-Line
2013FordFusionEnergi SERearR-Line
2013FordFusionEnergi TitaniumRearR-Line
2013LincolnMKZGASRearR-Line

* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.

This part directly replaces or is cross-referenced with the following part numbers:

120.61107121.61107126.61107SL126.61107SR14-541952901166320.61107600-54072611011RGS681013681013R75020DG75020DLAR85166EVCAX901168BD180653EBD180699EBR901168BRRF314BRRF398DG9Z2C026BDG9Z2C026DKJ5Z2C026ANBRR106NBRR112PRT6226R1168R1426WS1-154195YH527285P

Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
