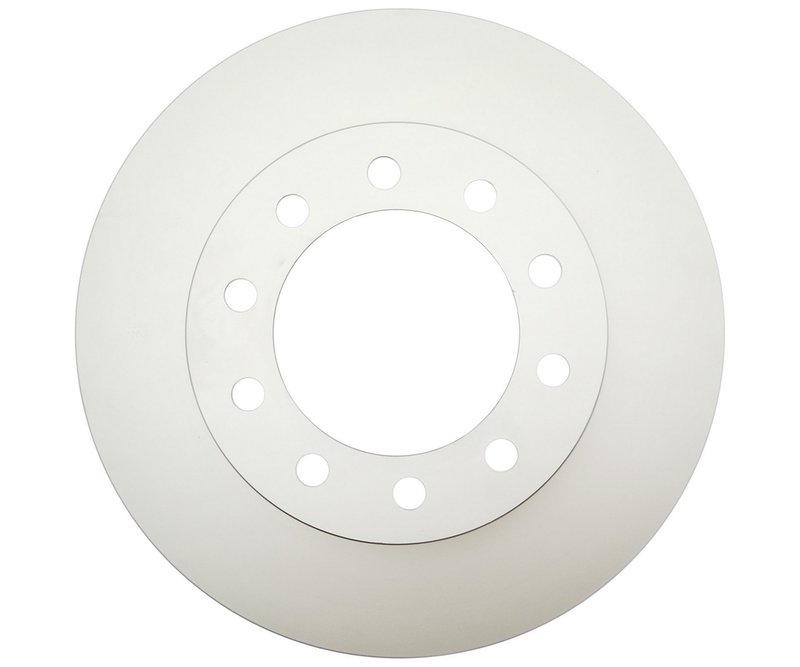

Raybestos 682089 Disc Brake Rotor - Front
| Brand | Raybestos 682089 |
|---|---|
| Position | Front |
| Discard Thickness | 1.472 |
| Discard Thickness | 37.400 |
| Nominal Thickness | 1.535 |
| Nominal Thickness | 39.000 |
| Inside Diameter | 247.900 |
| Inside Diameter | 9.760 |
| Overall Height | 101.600 |
| Overall Height | 4.000 |
| Outside Diameter | 15.390 |
| Outside Diameter | 390.900 |
| Mounting Bolt Hole Quantity | 10 |
| ABS Tone Ring Included | No |
| Surface Type | Smooth |
| Solid Or Vented Type Rotor | Vented |
| Center Hole Diameter | 129.100 |
| Center Hole Diameter | 5.083 |
| Mounting Bolt Hole Circle Diameter | 170.000 |
| Mounting Bolt Hole Circle Diameter | 6.693 |
| Mounting Bolt Hole Diameter | 0.638 |
| Mounting Bolt Hole Diameter | 16.200 |
| Stud/Lug Hole Quantity | 10 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Fits | — |
Coated rotor. Specialty Truck line helps resist corrosion for longer-lasting appearance.
Vented design. Promotes airflow through the rotor for more consistent braking performance.
Smooth surface. Provides a clean contact area for dependable brake pad engagement.
Cross-references Centric Parts 120.65152, Centric Parts 121.65152 and Centric Parts 320.65152F for the same application. See all 22.
Raybestos 682089 Coated Truck Rotor
Raybestos 682089 is a vented disc brake rotor from the Specialty - Truck line, built for heavy-duty braking service. With a smooth surface and coated construction, it is made for applications that need consistent rotor geometry and dependable brake contact.
Key Features
- Part number: 682089
- Raybestos Specialty - Truck coated rotor
- Vented, conventional disc brake rotor design
- Smooth surface type for brake pad contact
- Outside diameter: 390.900 mm (15.390 in.)
- Nominal thickness: 39.000 mm (1.535 in.)
- Discard thickness: 37.400 mm (1.472 in.)
- Overall height: 101.600 mm (4.000 in.)
- Center hole diameter: 129.100 mm (5.083 in.)
- Mounting bolt hole quantity: 10
- Mounting bolt hole circle diameter: 170.000 mm (6.693 in.)
- Mounting bolt hole diameter: 16.200 mm (0.638 in.)
- ABS tone ring included: No
Product Details
Raybestos 682089 is a conventional vented rotor with a 10-bolt mounting pattern, 390.900 mm outside diameter, and 129.100 mm center hole diameter. The Specialty - Truck rotor line is aimed at truck and heavy-duty brake service where correct dimensions, stable rotor thickness, and smooth braking surfaces matter. If you are sourcing a Raybestos 682089 replacement rotor for a truck brake repair, verify the rotor dimensions and hub pattern against the original part before installation.
This part cross-references Ford OE-style service part HC3Z1125A for the same application.
Common Brake Issues It Can Address
- Brake pulsation caused by rotor wear or thickness variation
- Reduced braking performance from a worn or scored rotor surface
- Rotor replacement needs during pad and brake service
- Noise or vibration linked to an out-of-spec front or rear rotor
- Service replacement for truck brake systems using a 10-lug rotor pattern
Installation Notes and Tips
Confirm outside diameter, center hole diameter, bolt circle diameter, and overall height before installation. Measure the existing rotor and compare it to the Raybestos 682089 specifications to ensure proper hub fitment and caliper clearance. Clean the hub mounting surface thoroughly, inspect pads and caliper hardware, and follow the vehicle manufacturer’s torque sequence during wheel installation.
Compatible With truck brake applications that use a 390.900 mm vented rotor with a 10-bolt, 170.000 mm bolt circle pattern. Fits vehicle-specific brake setups where the original rotor matches these dimensions.
Quality Assurance
Raybestos is a recognized brake parts brand with a Specialty - Truck product line focused on application-specific rotor construction and dimensional accuracy. The coated rotor design helps support long-term service in demanding brake environments.
