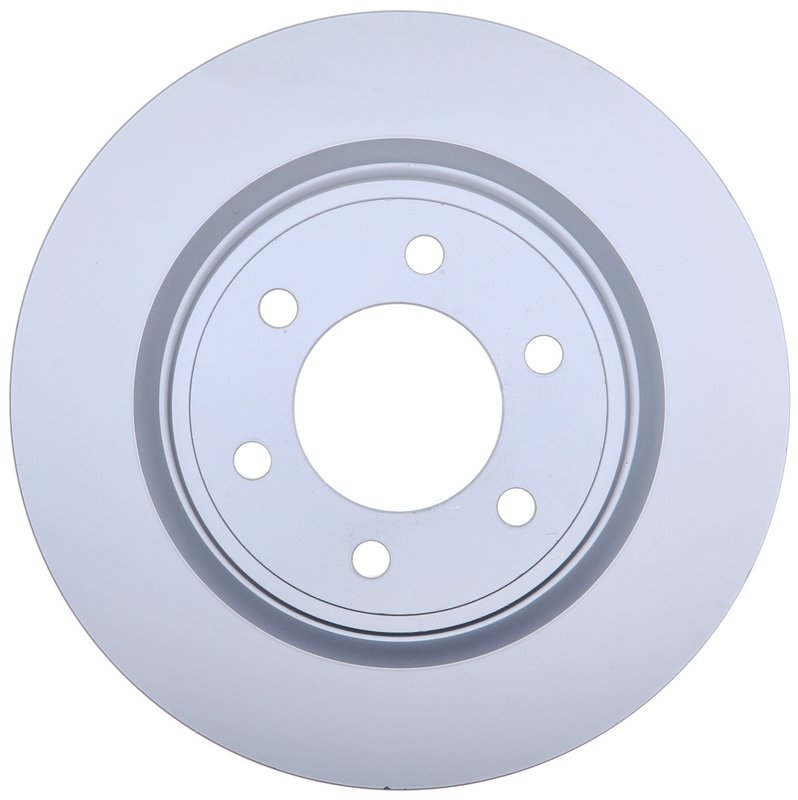

Raybestos 682746P Disc Brake Rotor - Front

Front Brake Rotor for Police Applications

The Raybestos Specialty - Police 682746P is a front disc brake rotor built for select Ford and Lincoln vehicles used in police-duty applications. It features a full cast iron construction, a vented design, and a smooth, non-directional braking surface for consistent service performance.

Compatible With 2021-2025 Ford F-150 front, 2022-2025 Ford Expedition front, 2022-2024 Ford Bronco front, 2025 Ford F-150 Lightning front, and 2022-2024 Lincoln Navigator front brake applications. The Raybestos 682746P is also listed for 2024 Lincoln Navigator front brake discs and calipers service.

Key Features

• Cast iron, full cast rotor construction
• Vented rotor design for front brake use
• Rust resistant coating included
• Smooth, non-directional brake surface
• Conventional rotor design with no ABS tone ring
• 6-bolt mounting pattern with 6 stud/lug holes
• Outside diameter: 350.0 mm (13.8 in.)
• Nominal thickness: 34.0 mm (1.3 in.)
• Center hole diameter: 89.9 mm (3.5 in.)

Product Details

Raybestos Specialty - Police brake components are built for demanding fleet service, and this rotor follows that application focus with a conventional, vented cast iron design. The 682746P uses a rust resistant coating to help protect the rotor surface before installation, while the smooth, non-directional finish supports even pad contact during braking. Cross-reference part numbers for the same application include Centric Parts 120.65168 and DuraGo BR901896.

Common Brake Issues This Rotor Can Address

• Front brake pulsation caused by rotor wear or thickness variation
• Brake noise related to uneven rotor surface condition
• Reduced braking consistency from heat-stressed front rotors
• Corrosion on exposed rotor surfaces
• Service replacement needs on police-duty Ford and Lincoln front brake systems

Installation Notes

Verify rotor diameter, thickness, center hole diameter, and bolt pattern before installation. This rotor is for front position applications only and does not include bearings or an ABS tone ring. Confirm pad condition, caliper operation, and hub surface cleanliness during brake service to help ensure proper rotor seating and braking performance.

Quality Assurance

Built under the Raybestos Specialty - Police product line for select fleet and pursuit-duty applications, the 682746P is engineered to match the listed vehicle fitments and brake dimensions. Confirm vehicle year, model, and front brake configuration before ordering.
