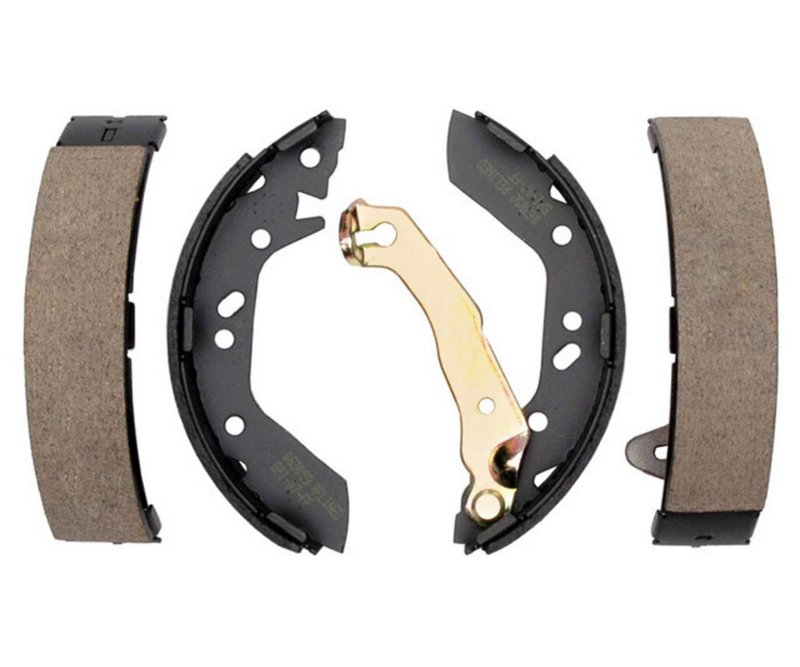

Raybestos 749PG Drum Brake Shoe - Rear

Raybestos 749PG Rear Drum Brake Shoe

Raybestos 749PG is a rear drum brake shoe for select 2000-2002 Hyundai Accent applications. It uses organic friction material and is built around a 5.000-inch shoe assembly radius for a direct-fit brake service on the rear axle.

The Raybestos Element3; Organic line focuses on organic friction construction for controlled braking characteristics in everyday driving. For shoppers searching for a rear drum brake shoe for 2000-2002 Hyundai Accent, 749PG provides the key dimensions needed to match the drum and shoe geometry.

Key Features

• Part number: 749PG
• Brand: Raybestos
• Brand line: Element3; Organic
• Friction material: Organic
• Brake shoe width: 1.378 in. / 35.000 mm
• Brake drum diameter: 7.087 in. / 180.000 mm
• Shoe assembly radius: 5.000 in.
• Steel width: 1.970 in.
• Rear position application

Detailed Description

Raybestos 749PG is a rear drum brake shoe engineered for 2000-2002 Hyundai Accent models. The organic friction material is paired with a 7.087-inch brake drum diameter and a 5.000-inch shoe assembly radius, helping the shoe match the drum geometry specified for the application. If you are replacing rear drum brake shoes on a Hyundai Accent, 749PG gives you the dimensional details needed for a proper service match.

This part cross-references Wagner Brake Z749 for the same application. It also aligns with other interchange references commonly used for this rear drum brake shoe application, including Beck/Arnley 081-3161 and PowerStop B749L.

What It Helps Address

• Rear brake shoe wear that reduces braking performance
• Squealing or uneven rear drum brake operation
• Reduced contact between the shoe and drum surface
• Brake service needs on 2000-2002 Hyundai Accent rear drums
• Replacement of worn organic friction material in drum brake systems

Installation Notes and Tips

Confirm drum diameter, shoe width, and shoe radius before installation. Inspect the brake drum, wheel cylinder, return springs, and adjuster components during service so the new rear drum brake shoe can seat correctly. For fitment, this part fits 2000-2002 Hyundai Accent, rear.

Use the vehicle year and rear-position fitment data exactly as listed for 2000-2002 Hyundai Accent, rear. The part number 749PG should be matched to the application before ordering or installation.

Quality Assurance

Raybestos is a recognized brake parts brand with coverage across aftermarket brake applications. The Element3; Organic product line identifies this shoe as an organic-friction brake service part for the listed Hyundai Accent rear fitment.
