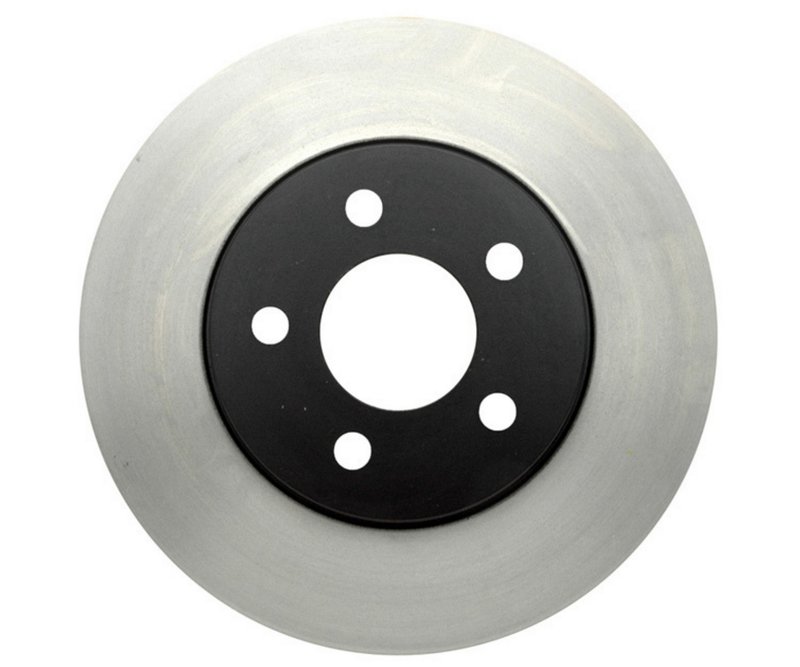

Raybestos 76561 Disc Brake Rotor - Front

Raybestos 76561 Vented Disc Brake Rotor

The Raybestos 76561 is a vented disc brake rotor for front and rear applications on select Chrysler, Dodge, and Plymouth vehicles. Built to match the listed dimensions and bolt pattern, it supports consistent brake service on vehicles such as the Chrysler Grand Voyager, Dodge Caravan, and Plymouth Voyager.

Key Features

• Part number 76561 from Raybestos Specialty - Truck
• Vented, conventional rotor design for service replacement use
• Outside diameter: 10.090 in. / 256.300 mm
• Nominal thickness: 0.945 in. / 24.000 mm
• Discard thickness: 0.880 in. / 22.350 mm
• Overall height: 1.500 in. / 38.100 mm
• 5-bolt mounting pattern with 5 stud/lug holes
• Center hole diameter: 2.402 in. / 61.000 mm
• Mounting bolt hole circle diameter: 3.937 in. / 100.000 mm
• Conventional rotor construction, not drum-in-hat

Product Details

Raybestos Specialty - Truck focuses on brake components for demanding truck and van service, and this rotor follows that approach with a vented, conventional design and precise dimensional specs. The 76561 rotor is listed for 1995-2002 Chrysler Grand Voyager, 1995-2000 Chrysler Voyager, 1996-2000 Dodge Caravan, 1996-2000 Dodge Grand Caravan, 1996-2000 Plymouth Grand Voyager, 1996-2000 Plymouth Voyager, and 1996-1999 Chrysler Town & Country applications, including front and rear positions where specified. This part cross-references Bosch 16010149 and DuraGo BR5371 for the same application.

Common Brake Issues It Can Address

• Brake pulsation caused by rotor wear or thickness variation
• Reduced braking consistency from a rotor at or near discard thickness
• Noise or vibration during stops from an out-of-spec rotor surface
• Service replacement needs on 5-lug Chrysler, Dodge, and Plymouth vans
• Front or rear rotor replacement on listed 256 mm brake setups

Installation Notes

Verify rotor diameter, center hole, bolt circle, and thickness before installation. Confirm whether your vehicle uses a front or rear rotor application, and match the listed fitment notes for 14-inch wheel or 256 mm rotor configurations where shown. Clean the hub mounting surface, inspect pads and caliper components, and measure the new rotor before service to confirm it meets the required dimensions for your Chrysler Grand Voyager, Dodge Caravan, or Plymouth Voyager application.

Quality Assurance

Raybestos brake rotors are built to published dimensional specifications for service replacement accuracy. The 76561 part number is supported by multiple interchange references, which helps confirm application matching during brake parts lookup and catalog verification.
