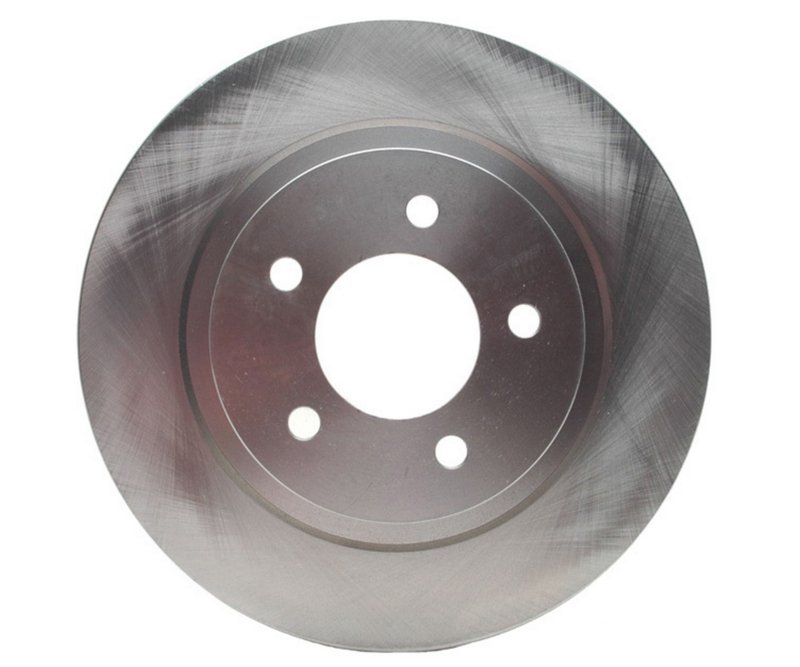

Raybestos 76722R Disc Brake Rotor - Front
| Brand | Raybestos 76722R |
|---|---|
| Position | Front |
| Center Hole Diameter | 2.890 |
| Center Hole Diameter | 73.400 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.960 |
| Discard Thickness | 24.400 |
| Mounting Bolt Hole Circle Diameter | 4.500 |
| Mounting Bolt Hole Circle Diameter | 114.300 |
| Mounting Bolt Hole Diameter | 0.546 |
| Mounting Bolt Hole Diameter | 13.850 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 1.025 |
| Nominal Thickness | 26.050 |
| Outside Diameter | 11.700 |
| Outside Diameter | 297.200 |
| Overall Height | 2.120 |
| Overall Height | 53.850 |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Product line | R-Line |
| Fits | Chrysler and Dodge · 40 vehicles |
Vented rotor. Promotes efficient airflow for more consistent braking performance.
Conventional design. A straightforward disc brake rotor for standard replacement needs.
R-Line series. Raybestos line focused on dependable everyday braking.
Cross-references Bosch 16010177, Centric Parts 120.63045 and Centric Parts 121.63045 for the same application. See all 66.
Raybestos R-Line Front Brake Rotor
The Raybestos R-Line 76722R is a front disc brake rotor built for select Chrysler and Dodge applications that use a 5-lug, vented, conventional rotor design. With an 11.700-inch outside diameter and 26.050 mm nominal thickness, it matches the dimensional requirements for listed 1998-2004 Chrysler 300M, Concorde, LHS, Intrepid, and Dodge Intrepid front brake setups.
Raybestos R-Line focuses on direct-fit replacement brake components for everyday service work. This rotor is specified with a 114.300 mm bolt circle, 73.400 mm center hole diameter, and 13.850 mm mounting bolt hole diameter for proper hub alignment on the listed vehicles.
- Part number 76722R front disc brake rotor
- Vented, conventional rotor construction
- 11.700 in. outside diameter for listed Chrysler and Dodge front applications
- 5-lug pattern with 114.300 mm bolt circle diameter
- 73.400 mm center hole diameter for hub-centered fitment
- Nominal thickness: 26.050 mm; discard thickness: 24.400 mm
- Raybestos R-Line replacement rotor for routine brake service
Fitment Details
Compatible with 1998 Chrysler 300M, front; 1999 Chrysler 300M, front; 2000 Chrysler 300M, front; 2001-2004 Chrysler 300M, front; 1998-1999 Chrysler Intrepid, front; 2000-2001 Chrysler Intrepid, front; 2002-2004 Chrysler Intrepid, front; 1998-2001 Chrysler Concorde, front; 2002-2004 Chrysler Concorde, front; 1999-2001 Chrysler LHS, front; 2000-2001 Dodge Intrepid, front; 2002-2004 Dodge Intrepid, front.
For search relevance, this Raybestos 76722R rotor is commonly referenced for front brake service on Chrysler 300M and Dodge Intrepid applications, including vehicles with 16-inch or 17-inch wheels where noted in the fitment data.
What This Rotor Helps Address
- Brake pulsation caused by rotor wear or thickness variation
- Reduced braking performance from a worn front rotor
- Rotor scoring, grooves, or heat-related surface damage
- Noise during braking from an out-of-spec rotor surface
- Service replacement needs on listed Chrysler and Dodge front brake systems
Installation Notes and Tips
Verify wheel size, performance package exclusions, and model-year notes before installation. This rotor is not compatible with vehicles equipped with the Performance Package where noted in the fitment data. Confirm the rotor dimensions, bolt pattern, and center bore against the original part before service. Part number 76722R should be matched to the vehicle’s front axle application only.
Quality Assurance
Raybestos R-Line brake parts are built as direct replacement components for service technicians and DIY brake repairs. This part cross-references Bosch 16010177 for the same application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Chrysler | 300M | Front | Not compatible with vehicles equipped with Performance Package.; R-Line |
| 2004 | Chrysler | Concorde | Front | R-Line |
| 2004 | Chrysler | Concorde | Front | Not compatible with vehicles equipped with Performance Package.; R-Line |
| 2004 | Chrysler | Intrepid | Front | R-Line |
| 2004 | Chrysler | Intrepid | Front | Not compatible with vehicles equipped with Performance Package.; R-Line |
| 2004 | Dodge | Intrepid | Front | R-Line |
| 2004 | Dodge | Intrepid | Front | Not compatible with vehicles equipped with Performance Package.; R-Line |
| 2003 | Chrysler | 300M | Front | Not compatible with vehicles equipped with Performance Package.; R-Line |
| 2003 | Chrysler | Concorde | Front | R-Line |
| 2003 | Chrysler | Concorde | Front | Not compatible with vehicles equipped with Performance Package.; R-Line |
| 2003 | Chrysler | Intrepid | Front | R-Line |
| 2003 | Chrysler | Intrepid | Front | Not compatible with vehicles equipped with Performance Package.; R-Line |
| 2003 | Dodge | Intrepid | Front | R-Line |
| 2003 | Dodge | Intrepid | Front | Not compatible with vehicles equipped with Performance Package.; R-Line |
| 2002 | Chrysler | 300M | Front | Not compatible with vehicles equipped with Performance Package.; R-Line |
| 2002 | Chrysler | Concorde | Front | R-Line |
| 2002 | Chrysler | Concorde | Front | Not compatible with vehicles equipped with Performance Package.; R-Line |
| 2002 | Chrysler | Intrepid | Front | R-Line |
| 2002 | Chrysler | Intrepid | Front | Not compatible with vehicles equipped with Performance Package.; R-Line |
| 2002 | Dodge | Intrepid | Front | R-Line |
| 2002 | Dodge | Intrepid | Front | Not compatible with vehicles equipped with Performance Package.; R-Line |
| 2001 | Chrysler | 300M | Front | Not compatible with vehicles equipped with Performance Package.; R-Line |
| 2001 | Chrysler | Concorde | Front | Compatible with vehicles equipped with 16 IN and 17 IN wheels.; R-Line |
| 2001 | Chrysler | Intrepid | Front | Except Performance Package; with 16 IN Wheels; R-Line |
| 2001 | Chrysler | LHS | Front | w/ 16" Aluminum Wheels; with 17 IN Wheels; R-Line |
| 2001 | Dodge | Intrepid | Front | Except Performance Package; with 16 IN Wheels; R-Line |
| 2000 | Chrysler | 300M | Front | Except Performance Package; with 15 IN Wheels; R-Line |
| 2000 | Chrysler | Concorde | Front | Compatible with vehicles equipped with 16 IN and 17 IN wheels.; R-Line |
| 2000 | Chrysler | Intrepid | Front | Except Performance Package; with 16 IN Wheels; R-Line |
| 2000 | Chrysler | LHS | Front | w/ 16" Aluminum Wheels; with 17 IN Wheels; R-Line |
| 2000 | Dodge | Intrepid | Front | Except Performance Package; with 16 IN Wheels; R-Line |
| 1999 | Chrysler | 300M | Front | w/ 16" Aluminum Wheels; Except Performance Package; R-Line |
| 1999 | Chrysler | Concorde | Front | Compatible with vehicles equipped with 16 IN and 17 IN wheels.; R-Line |
| 1999 | Chrysler | Intrepid | Front | Canadian Built; with 16 IN Wheels; R-Line |
| 1999 | Chrysler | LHS | Front | w/ 16" Aluminum Wheels; with 17 IN Wheels; R-Line |
| 1999 | Dodge | Intrepid | Front | Fits vehicles with 16-inch wheels.; R-Line |
| 1998 | Chrysler | 300M | Front | R-Line |
| 1998 | Chrysler | Concorde | Front | Compatible with vehicles equipped with 16 IN and 17 IN wheels.; R-Line |
| 1998 | Chrysler | Intrepid | Front | Canadian Built; with 16 IN Wheels; R-Line |
| 1998 | Dodge | Intrepid | Front | Fits vehicles with 16-inch wheels.; R-Line |
