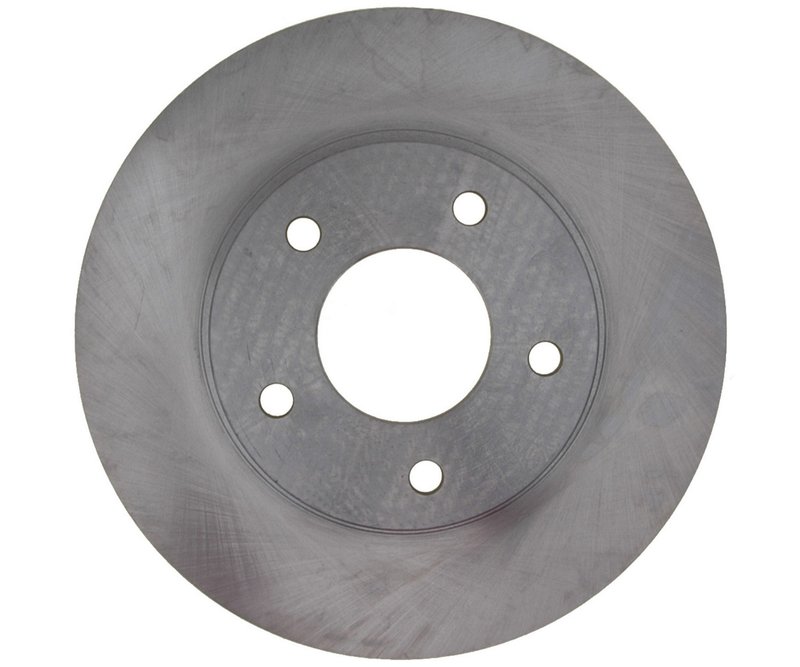

Raybestos 76735R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 76735R

The Raybestos R-Line Disc Brake Rotor 76735R is engineered for reliable braking performance on Mitsubishi Eclipse models. Designed as a vented, conventional rotor, it offers precise fitment and consistent stopping power tailored to your vehicle's specifications.

• Compatible with Mitsubishi Eclipse
• Vented disc brake rotor design for improved heat dissipation
• Overall diameter of 10.555 inches (268.1 mm)
• Nominal thickness of 1.025 inches (26.05 mm) with discard thickness at 0.960 inches (24.4 mm)
• Five mounting bolt holes with a 114.3 mm bolt circle diameter
• Center hole diameter of 2.72 inches (69.1 mm)
• Conventional rotor type suitable for standard brake systems

Detailed Specifications and Features

This Raybestos R-Line rotor (part number 76735R) features a vented design that enhances cooling during braking, reducing the risk of brake fade under demanding conditions. The rotor's overall height measures 1.815 inches (46.1 mm), ensuring proper clearance and compatibility with the Mitsubishi Eclipse brake assembly. The five mounting bolt holes and stud/lug hole quantity of five provide secure installation, matching the vehicle's factory specifications. The nominal thickness of 1.025 inches (26.05 mm) and discard thickness of 0.960 inches (24.4 mm) indicate the rotor's usable lifespan and replacement threshold, helping maintain optimal braking performance.

Raybestos R-Line Product Line Information

The R-Line by Raybestos is a product line focused on delivering dependable brake components that meet or exceed OEM standards. This line emphasizes quality materials and precise manufacturing tolerances, making it suitable for drivers seeking reliable replacement parts for their Mitsubishi Eclipse. The R-Line rotors are designed to provide consistent braking performance and durability without unnecessary features, aligning with professional repair and maintenance requirements.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Mitsubishi Eclipse
• Addresses brake noise caused by uneven rotor surfaces
• Improves braking response and reduces pedal vibration
• Prevents overheating and brake fade during extended use
• Restores proper rotor thickness for safe braking operation

Installation Notes and Tips

When installing the Raybestos R-Line 76735R rotor, ensure the mounting surface is clean and free of rust or debris to promote proper seating. Verify that the rotor thickness is within the nominal range before installation and replace if below discard thickness. Use the correct torque specifications for the five mounting bolts to avoid rotor warping. It is recommended to inspect brake pads and hardware during rotor replacement to maintain overall brake system integrity.

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet stringent quality standards, ensuring consistent performance and durability. While specific warranty details for part number 76735R may vary, Raybestos typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or contact the manufacturer for precise warranty information related to your purchase.
