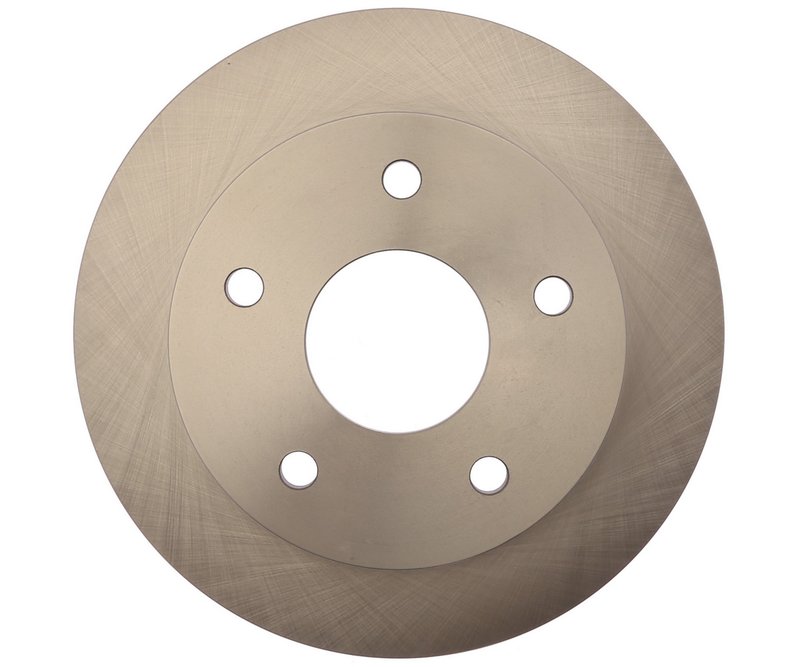

Raybestos 76917R Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
 R-Line

Raybestos 76917R Disc Brake Rotor - Front

Brand Raybestos 76917R
Position Front
Center Hole Diameter 3.092
Center Hole Diameter 78.550
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 1.118
Discard Thickness 28.400
Mounting Bolt Hole Circle Diameter 5.500
Mounting Bolt Hole Circle Diameter 139.700
Mounting Bolt Hole Diameter 5.500
Mounting Bolt Hole Diameter 139.700
Mounting Bolt Hole Quantity 5
Nominal Thickness 1.180
Nominal Thickness 29.950
Outside Diameter 12.110
Outside Diameter 307.600
Overall Height 2.885
Overall Height 73.300
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
Product line R-Line
Fits Dodge · 6 vehicles

Vented design. Helps promote airflow for more consistent braking performance.

Conventional rotor. A straightforward disc brake rotor for standard replacement needs.

R-Line series. Raybestos line focused on dependable everyday braking parts.

Cross-references Bosch 16010168, Centric Parts 120.67050 and Centric Parts 121.67050 for the same application. See all 56.

$48.40Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $48.40
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos R-Line Front Brake Rotor

The Raybestos R-Line 76917R is a vented front disc brake rotor built for 2000-2001 Dodge Ram 1500, 2000-2001 Dodge Ram 2500, and 2000-2001 Dodge Ram 3500 applications. With a 12.110-inch outside diameter, 5-lug bolt pattern, and conventional drum-in-hat rotor design, it matches the dimensional requirements for these front brake setups.

Raybestos R-Line focuses on direct-fit brake service parts for everyday repair work. This rotor is a practical replacement choice when you need the correct hub and mounting dimensions for a front brake rotor on a Dodge Ram 1500, Ram 2500, or Ram 3500.

Key Features

  • Part number 76917R for direct identification
  • Vented front disc brake rotor construction
  • 12.110-inch outside diameter for listed Ram truck fitments
  • 5 mounting bolt holes and 5 stud/lug holes
  • 3.092-inch center hole diameter
  • 139.700 mm / 5.500-inch bolt circle diameter
  • Nominal thickness: 1.180 in (29.950 mm)
  • Discard thickness: 1.118 in (28.400 mm)
  • Overall height: 2.885 in (73.300 mm)
  • Conventional rotor design

Detailed Description

Built for front brake service, the Raybestos 76917R rotor uses a vented design to support heat management during repeated stops. Its 307.600 mm outside diameter, 78.550 mm center hole, and 5-lug mounting pattern align with the specified Dodge Ram 1500, Ram 2500, and Ram 3500 front brake applications. If you are replacing a worn front rotor on a 2000-2001 Dodge Ram 1500, 2000-2001 Dodge Ram 2500, or 2000-2001 Dodge Ram 3500, this rotor provides the dimensional match needed for a proper brake service.

This part cross-references PowerStop AR8748 and Bosch 16010168 for the same application. The Raybestos R-Line 76917R also appears under Raybestos Brakes 76917FZN and 76917R interchange references.

What It Helps Address

  • Brake pulsation from rotor wear or thickness variation
  • Front-end vibration during braking
  • Reduced braking consistency from a worn rotor surface
  • Rotor replacement needs during front brake service
  • Fitment issues caused by incorrect diameter, bolt pattern, or center bore

Installation Notes and Tips

Verify rotor dimensions against the existing front brake setup before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect pads, calipers, and hardware condition during service. For best results, replace rotors in pairs on the same axle and follow the vehicle manufacturer’s torque specifications and bedding procedure.

Quality Assurance

Raybestos R-Line parts are built as direct replacement brake components for routine service applications. Confirm fitment by matching the vehicle year, make, model, and front position to the listed applications before installation.

Related reading

This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelDrive TypePositionNotes
2001DodgeRam 15004WDFrontR-Line
2001DodgeRam 25004WDFrontReplaces 76917RGS; Raybestos R-Line
2001DodgeRam 35004WDFrontReplaces 76917RGS; Raybestos R-Line
2000DodgeRam 15004WDFrontR-Line
2000DodgeRam 25004WDFrontReplaces 76917RGS; Raybestos R-Line
2000DodgeRam 35004WDFrontReplaces 76917RGS; Raybestos R-Line
Directly replaces or cross-references 56 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Bosch — 16010168Centric Parts — 120.67050Centric Parts — 121.67050Centric Parts — 320.67050Centric Parts — 320.67050FDavico Mfg — 662664DENSO Auto Parts — 5394DuraGo — BR5394Four Seasons — 76917PowerStop — AR8748PowerStop — AR8748EVCPromax — 14-5394Raybestos Brakes — 76917FZNRaybestos Brakes — 76917RSchaeffler — 103167StopTech — 126.67050SLStopTech — 126.67050SRStopTech — 127.67050LStopTech — 127.67050RStopTech — 128.67050LStopTech — 128.67050RStopTech — 227.67050LStopTech — 227.67050R09.8917.8552-12574481-12574489-40050125.67050126.67050CSL126.67050CSR127.67050CL127.67050CR5394DG5394DL2714176917RGS103455145305211274-C325514491230621002253973052009801AAAR8748EBD125744BD125744ECW30714DL5394PS125744RBR5394X51360YH2664YH145305YH145305CYH145305P
