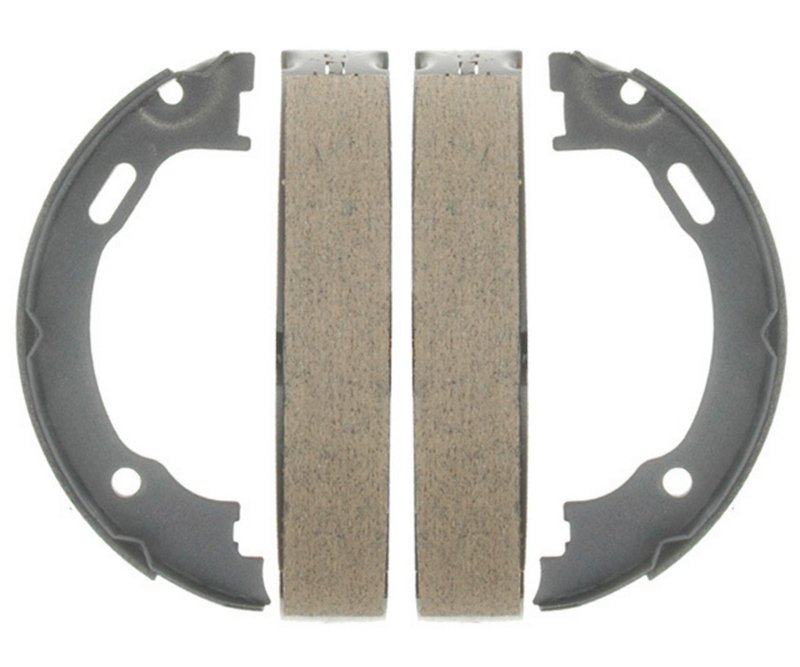

Raybestos 777PG Parking Brake Shoe - Rear

Raybestos 777PG Parking Brake Shoe

Raybestos 777PG is a rear parking brake shoe built with organic friction material for controlled engagement and consistent holding performance. It is sized for the specified drum diameter and shoe geometry, making it a direct replacement option for select Chrysler, Dodge, and Mercedes-Benz applications.

The Raybestos Element3; Organic line focuses on dependable braking feel with organic lining construction. For drivers searching for a rear parking brake shoe for Chrysler 300, Dodge Charger, or Dodge Challenger applications, 777PG provides the fitment and dimensions needed for service work on the parking brake system.

Key Features

• Organic friction material for smooth parking brake engagement
• Brake shoe width: 1.181 in. / 30.000 mm
• Brake drum diameter: 7.244 in. / 184.000 mm
• Friction lining length: 8.130 in.
• Friction lining width: 1.200 in.
• Shoe assembly radius: 3.620 in.
• Steel radius: 3.502 in.
• Steel width: 1.220 in.
• Web thickness: 0.165 in.

Detailed Description

Built under the Raybestos Element3; Organic product line, this parking brake shoe uses organic lining material to deliver a predictable contact surface for rear drum-style parking brake operation. The listed dimensions, including shoe width, lining size, radius, and drum diameter, help ensure proper alignment in the parking brake assembly. Raybestos 777PG is a fitment-based replacement for rear applications on 2022-2023 Chrysler 300, Dodge Challenger, and Dodge Charger, plus earlier Chrysler, Dodge, and Mercedes-Benz models listed below.

This part cross-references Wagner Brake Z777 for the same application.

Vehicle Fitment

• Fits 2022-2023 Chrysler 300, rear. Replaces 777SG; Raybestos Element 3.
• Fits 2022-2023 Dodge Challenger, rear. Replaces 777SG; Raybestos Element 3.
• Fits 2022-2023 Dodge Charger, rear. Replaces 777SG; Raybestos Element 3.
• Fits 2005-2021 Chrysler 300, rear.
• Fits 2008-2021 Dodge Challenger, rear.
• Fits 2006-2021 Dodge Charger, rear.
• Fits 2014 Dodge Avenger, rear.
• Fits 2004-2008 Chrysler Pacifica, rear.
• Fits 2005-2008 Dodge Magnum, rear.
• Fits 2003-2005 Mercedes-Benz ML350, rear.
• Fits 2002-2005 Mercedes-Benz ML500, rear.
• Fits 1998-2003 Mercedes-Benz ML320, rear.
• Fits 2000-2003 Mercedes-Benz ML55 AMG, rear.
• Fits 1999-2001 Mercedes-Benz ML430, rear.

Common Service Uses

• Rear parking brake shoe replacement for worn organic lining
• Correction for reduced parking brake holding force
• Service for noise caused by worn or uneven shoe contact
• Replacement when parking brake engagement feels inconsistent
• Restoration of proper drum contact in the rear parking brake system

Installation Notes and Tips

Verify drum diameter, shoe width, and radius before installation to confirm the correct rear parking brake shoe for the vehicle. Inspect the parking brake drum surface, backing plate contact points, and related hardware condition during service, and compare the removed part to the listed dimensions and fitment notes for Chrysler 300, Dodge Charger, Dodge Challenger, and Mercedes-Benz ML applications.

Quality Assurance

Raybestos is a recognized brake parts brand with the Element3; Organic line positioned around organic friction construction and application-specific fitment. Use the listed vehicle coverage and dimensional specifications to confirm compatibility before installation.
