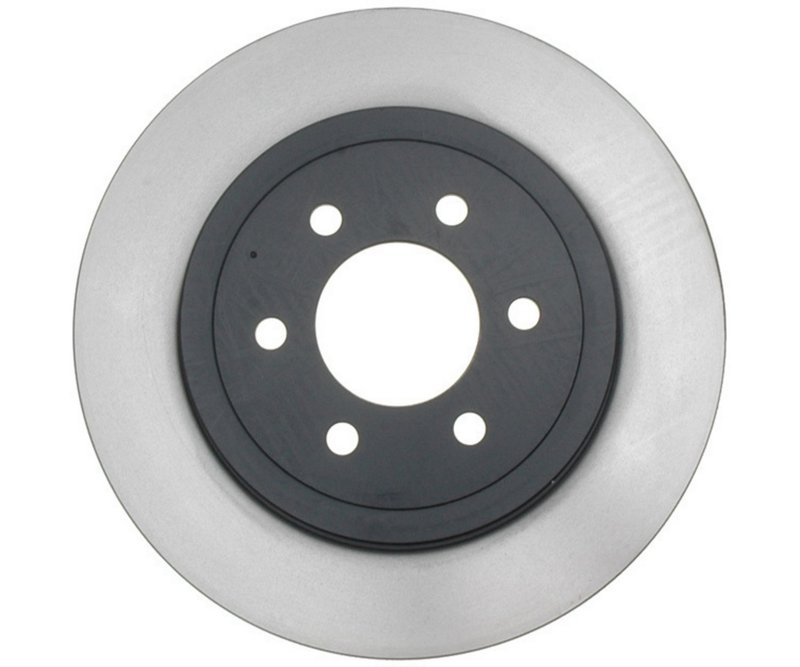

Raybestos 780145 Disc Brake Rotor - Front
| Brand | Raybestos 780145 |
|---|---|
| Position | Front |
| Center Hole Diameter | 2.890 |
| Center Hole Diameter | 73.400 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.965 |
| Discard Thickness | 24.500 |
| Mounting Bolt Hole Circle Diameter | 4.500 |
| Mounting Bolt Hole Circle Diameter | 114.300 |
| Mounting Bolt Hole Diameter | 4.500 |
| Mounting Bolt Hole Diameter | 114.300 |
| Mounting Bolt Hole Quantity | 6 |
| Nominal Thickness | 1.025 |
| Nominal Thickness | 26.050 |
| Outside Diameter | 12.125 |
| Outside Diameter | 307.950 |
| Overall Height | 2.475 |
| Overall Height | 62.850 |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 6 |
| Product line | Specialty - Truck |
| Fits | Dodge · 2 vehicles |
Solid rotor design. Provides a simple, durable braking surface.
Conventional rotor type. A straightforward replacement for standard brake setups.
Raybestos Specialty - Truck. Built for truck-focused braking applications.
Cross-references Bosch 16010174, Centric Parts 120.67057 and Centric Parts 121.67057 for the same application. See all 51.
Front Disc Brake Rotor for Dodge Dakota
Raybestos Specialty - Truck rotor 780145 is a front solid disc brake rotor built for 2003-2004 Dodge Dakota applications. With a 12.125-inch outside diameter, 6-lug mounting, and conventional one-piece construction, it matches the dimensional requirements for the listed fitment.
Use this rotor when you need a direct replacement for a front brake service on a Dodge Dakota. The Raybestos 780145 part number is also referenced in cross applications such as Bosch 16010174 and Timken 710102.
Key Features
- Fits 2003-2004 Dodge Dakota, front
- Raybestos Specialty - Truck brake rotor
- Solid, conventional rotor design
- 12.125 in. outside diameter and 2.475 in. overall height
- 6 mounting bolt holes and 6 stud/lug holes
- Center hole diameter: 2.890 in.
- Nominal thickness: 1.025 in.; discard thickness: 0.965 in.
- Mounting bolt circle diameter: 4.500 in.
Detailed Description
Raybestos 780145 is a front disc brake rotor from the Specialty - Truck line, engineered for the 2003-2004 Dodge Dakota. The rotor uses a solid, conventional design with a 307.950 mm outside diameter, 62.850 mm overall height, and 73.400 mm center hole diameter. Its 6-bolt pattern and 4.500-inch bolt circle support the specified front brake fitment.
This rotor is a practical replacement choice when servicing front brake wear on a Dodge Dakota. The Raybestos 780145 part number is commonly cross-referenced in the aftermarket, including Bosch 16010174 and Timken 710102 for the same application.
What It Helps Address
- Front brake rotor wear
- Brake pulsation from rotor thickness variation
- Scoring or surface damage on the braking surface
- Reduced braking consistency during routine service
- Replacement needs for a worn Dodge Dakota front rotor
Installation Notes and Tips
Verify rotor dimensions, bolt pattern, and hub fitment before installation on the 2003-2004 Dodge Dakota, front. Inspect pads, calipers, and hub surfaces during brake service, and clean the mounting area so the rotor seats evenly. Measure rotor thickness during installation to confirm it meets service requirements.
Quality Assurance
Raybestos is a recognized brake parts brand with coverage across truck and passenger vehicle applications. This rotor is built to match the listed dimensional specifications for the confirmed fitment.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2004 | Dodge | Dakota | Front | Specialty - Truck |
| 2003 | Dodge | Dakota | Front | Specialty - Truck |
| No rows match your filter. | ||||
