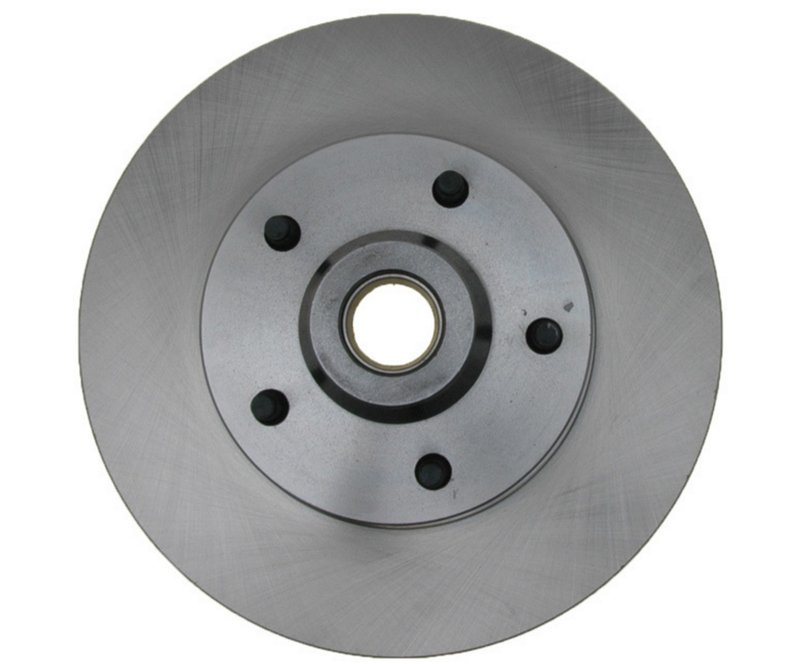

Raybestos 780224R Disc Brake Rotor and Hub Assembly - Front

Overview of Raybestos R-Line Disc Brake Rotor and Hub Assembly

The Raybestos R-Line 780224R disc brake rotor and hub assembly is engineered for reliable braking performance on Dodge Ram 1500 Van models. Designed to meet precise specifications, this assembly ensures proper fitment and consistent operation for your vehicle's braking system.

• Compatible with Dodge Ram 1500 Van
• Part number 780224R for exact identification
• Includes disc brake rotor and hub assembly
• Mounting bolt hole quantity: 5 with 139.7 mm bolt circle diameter
• Nominal rotor thickness: 30.000 mm (1.181 inches)
• Discard rotor thickness: 28.400 mm (1.118 inches)
• Mounting bolt hole diameter: 16.450 mm (0.647 inches)
• Stud/lug hole quantity: 5

Detailed Product Specifications

This Raybestos R-Line disc brake rotor and hub assembly (part number 780224R) is designed with precise dimensions to ensure proper installation and performance on Dodge Ram 1500 Van vehicles. The rotor features a nominal thickness of 30.000 mm (1.181 inches) and a discard thickness of 28.400 mm (1.118 inches), which helps maintain optimal braking efficiency and safety. The assembly includes five mounting bolt holes arranged on a 139.7 mm bolt circle diameter, with each hole measuring 16.450 mm in diameter. Additionally, the hub assembly accommodates five stud/lug holes, providing secure attachment to the vehicle’s wheel hub.

About the Raybestos R-Line Product Line

The R-Line by Raybestos is a product line focused on delivering reliable and consistent brake components that meet or exceed OEM specifications. This line is designed to provide dependable braking performance and durability for vehicles like the Dodge Ram 1500 Van. The 780224R rotor and hub assembly is part of this line, ensuring compatibility and quality for your vehicle’s braking system.

Common Applications and Problem Solving

• Replacement for worn or warped brake rotors on Dodge Ram 1500 Van
• Resolves issues related to brake noise and vibration
• Addresses uneven brake pad wear caused by rotor damage
• Improves braking response and pedal feel
• Restores proper wheel hub alignment and stability

Installation Notes and Tips

When installing the Raybestos R-Line 780224R disc brake rotor and hub assembly, ensure the mounting surfaces are clean and free of debris. Verify the bolt hole pattern matches the vehicle’s specifications (5 holes on a 139.7 mm circle). Torque all mounting bolts to the manufacturer’s recommended specifications to avoid premature wear or damage. It is advisable to inspect related brake components such as pads and calipers during installation for optimal system performance.

Quality Assurance and Warranty

Raybestos R-Line brake components are manufactured to meet strict quality standards, ensuring durability and consistent performance. While specific warranty details for part number 780224R should be confirmed with the supplier, Raybestos typically offers coverage against defects in materials and workmanship. This provides added confidence in the reliability of the disc brake rotor and hub assembly for your Dodge Ram 1500 Van.
