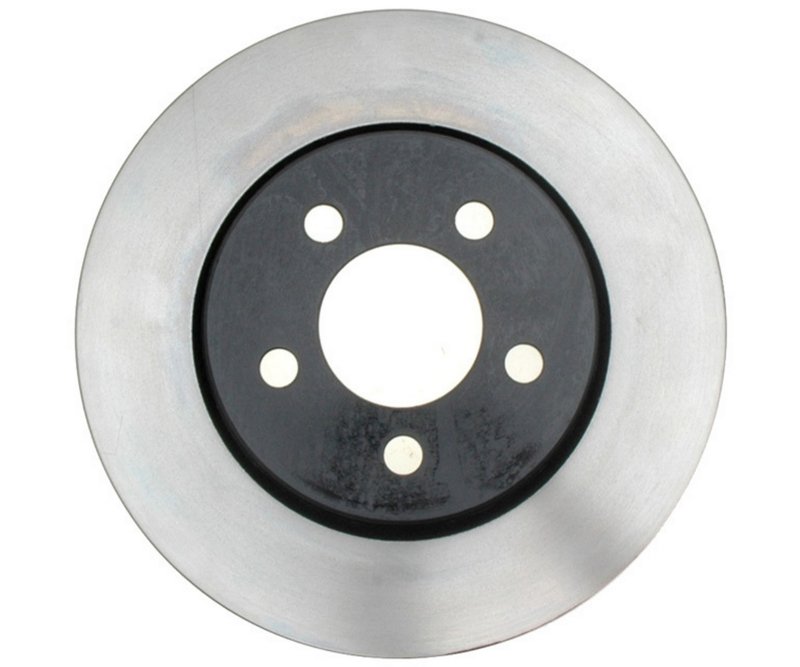

Raybestos 780540 Disc Brake Rotor - Front
| Brand | Raybestos 780540 |
|---|---|
| Position | Front |
| Discard Thickness | 1.039 |
| Discard Thickness | 26.400 |
| Nominal Thickness | 1.102 |
| Nominal Thickness | 28.000 |
| Overall Height | 2.524 |
| Overall Height | 64.100 |
| Outside Diameter | 11.896 |
| Outside Diameter | 302.150 |
| Mounting Bolt Hole Quantity | 5 |
| Solid Or Vented Type Rotor | Vented |
| Mounting Bolt Hole Circle Diameter | 114.300 |
| Mounting Bolt Hole Circle Diameter | 4.500 |
| Mounting Bolt Hole Diameter | 114.300 |
| Mounting Bolt Hole Diameter | 4.500 |
| Stud/Lug Hole Quantity | 5 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Product line | Specialty - Truck |
| Fits | Dodge and Jeep · 10 vehicles |
Vented rotor. Helps promote airflow for more consistent braking performance.
Conventional design. A straightforward brake rotor built for dependable service.
Specialty - Truck line. Raybestos engineering for demanding brake applications.
Cross-references Bosch 16010265, Centric Parts 120.63071 and Centric Parts 121.63071 for the same application. See all 46.
Front Brake Rotor for Jeep Liberty and Dodge Nitro
Raybestos Specialty - Truck brake rotor 780540 is a vented front disc brake rotor built for specific Jeep and Dodge truck applications. It is sized for 302 mm front brake setups and is listed for 2008-2012 Jeep Liberty and 2007-2011 Dodge Nitro front positions.
Key Features
- Part number 780540
- Vented conventional disc brake rotor design
- Outside diameter: 11.896 in. / 302.150 mm
- Nominal thickness: 1.102 in. / 28.000 mm
- Discard thickness: 1.039 in. / 26.400 mm
- Overall height: 2.524 in. / 64.100 mm
- 5 bolt holes and 5 stud/lug holes
- Bolt circle diameter: 4.500 in. / 114.300 mm
Product Details
Raybestos 780540 is part of the Specialty - Truck line, which focuses on brake components for truck and SUV applications that require the correct rotor dimensions and fitment. This rotor uses a vented, conventional design with a 302 mm outside diameter and 5-lug mounting pattern, making it a direct match for front brake service on the listed Jeep Liberty and Dodge Nitro vehicles. This part cross-references Bosch 16010265 for the same application.
What It Helps Address
- Front brake pulsation caused by worn rotor surfaces
- Brake noise related to rotor wear or uneven contact
- Reduced braking consistency from rotor thickness loss
- Service replacement for damaged or heat-worn front rotors
- Fitment issues when the vehicle requires a 302 mm front rotor
Installation Notes
Verify rotor diameter, bolt pattern, and front position before installation. Confirm the vehicle uses the 302 mm brake package listed for the application. Inspect pads, calipers, and hub surfaces during service to help ensure proper rotor seating and braking performance. Use the vehicle’s service specifications for torque and brake system checks.
Quality Assurance
Raybestos Specialty - Truck brake components are cataloged for specific truck and SUV brake applications, with dimensions and fitment data provided for accurate replacement selection.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2012 | Jeep | Liberty | Front | Rotor Diameter 302 MM; Specialty - Truck |
| 2011 | Dodge | Nitro | Front | Rotor Diameter 302 MM; Specialty - Truck |
| 2011 | Jeep | Liberty | Front | Rotor Diameter 302 MM; Specialty - Truck |
| 2010 | Dodge | Nitro | Front | Rotor Diameter 302 MM; Specialty - Truck |
| 2010 | Jeep | Liberty | Front | Rotor Diameter 302 MM; Specialty - Truck |
| 2009 | Dodge | Nitro | Front | Rotor Diameter 302 MM; Specialty - Truck |
| 2009 | Jeep | Liberty | Front | Rotor Diameter 302 MM; Specialty - Truck |
| 2008 | Dodge | Nitro | Front | Rotor Diameter 302 MM; Specialty - Truck |
| 2008 | Jeep | Liberty | Front | Rotor Diameter 302 MM; Specialty - Truck |
| 2007 | Dodge | Nitro | Front | Specialty - Truck |
