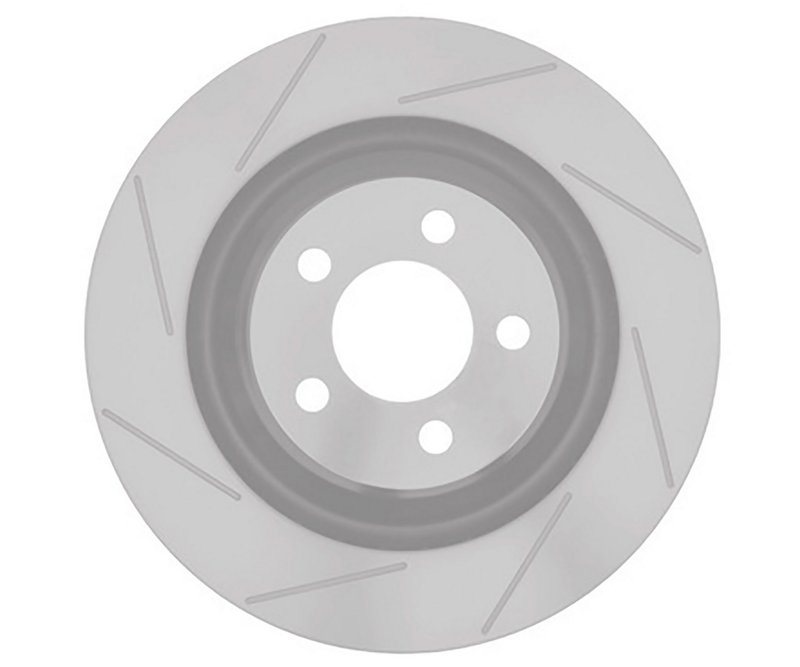

Raybestos 780723FZN Disc Brake Rotor - Rear

Raybestos Element3 Rear Rotor for Chrysler and Dodge

The Raybestos 780723FZN is a rear disc brake rotor built for select Chrysler 300, Dodge Challenger, Dodge Charger, and Dodge Magnum applications. This Element3 coated rotor combines a full cast construction with a slotted, vented drum-in-hat design for a direct-fit replacement on vehicles that use a 350 mm rear rotor setup.

Key Features

• Part number: 780723FZN
• Raybestos Element3 coated rotor for rear brake service
• Full cast construction for consistent braking performance
• Slotted surface type
• Vented drum-in-hat rotor design
• Outside diameter: 13.780 in. / 350.000 mm
• Nominal thickness: 1.100 in. / 27.950 mm
• Discard thickness: 1.020 in. / 25.900 mm
• Maximum brake diameter at discard: 26.000 in.
• 5-bolt mounting pattern
• Center hole diameter: 1.678 in. / 42.600 mm
• Bolt circle diameter: 4.520 in. / 114.800 mm
• ABS tone ring not included

Product Details

Raybestos Element3 rotors are positioned as a coated rotor line for drivers who want a direct replacement rotor with application-specific fitment and a corrosion-resistant finish. The 780723FZN is engineered for rear use on Chrysler 300 and Dodge performance sedans and coupes, including 2005-2023 Chrysler 300 rear applications, 2006-2020 Dodge Charger rear applications, 2006-2022 Dodge Challenger rear applications, and 2006-2008 Dodge Magnum rear applications. This part cross-references Bosch 16010247 for the same application.

What This Rotor Helps Address

• Brake pulsation caused by worn or uneven rear rotors
• Reduced braking consistency from rotor wear beyond discard thickness
• Corrosion on exposed rotor surfaces
• Noise or vibration associated with damaged rear brake rotors
• Service replacement needs on Brembo-equipped Dodge Challenger and Charger models where listed

Installation Notes and Fitment

Fits 2023 Chrysler 300, rear. Fits 2021-2022 Dodge Charger, rear. Fits 2019-2020 Dodge Challenger, rear, compatible with vehicles equipped with Brembo brakes. Fits 2012-2020 Dodge Challenger, rear. Fits 2008-2010 Dodge Challenger, rear. Fits 2012-2020 Dodge Charger, rear. Fits 2008-2010 Dodge Charger, rear. Fits 2020 Dodge Charger, rear, compatible with vehicles equipped with Brembo brakes. Fits 2017-2019 Chrysler 300, rear, except Police Pkg. Fits 2012-2014 Chrysler 300, rear. Fits 2008-2010 Chrysler 300, rear. Fits 2006-2008 Dodge Magnum, rear. Fits 2005-2007 Chrysler 300, rear. Fits 2007 Dodge Charger, rear. Fits 2006 Dodge Charger, rear.

Verify rotor diameter, center hole, bolt pattern, and discard thickness before installation. Because this is a drum-in-hat rear rotor, confirm parking brake and caliper clearance during service. Professional brake inspection and proper torque procedures are recommended.

Quality Assurance

Raybestos Element3 brake components are built around application-specific fitment and coated rotor construction for dependable service in everyday and performance-oriented rear brake applications. Part number 780723FZN is a direct replacement option for the listed Chrysler and Dodge vehicles.
