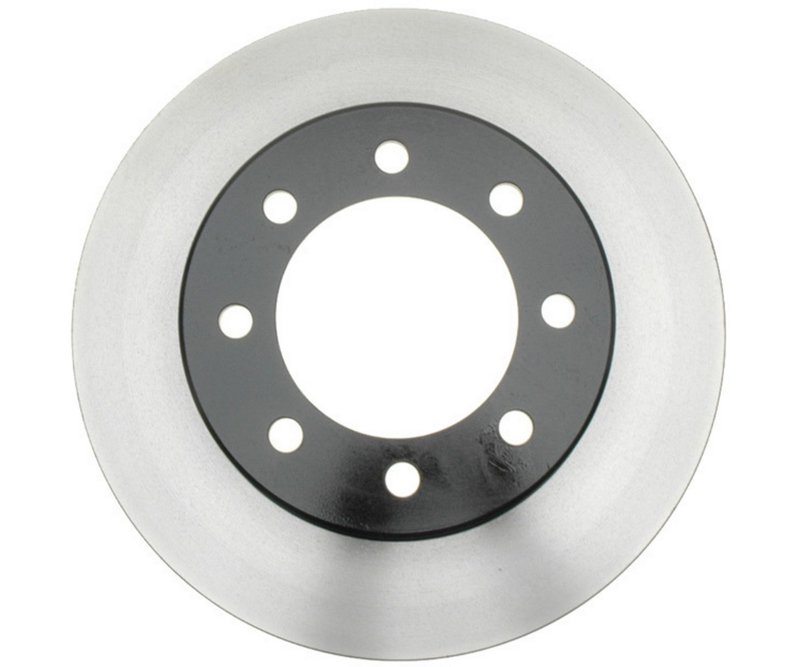

Raybestos 780736 Disc Brake Rotor - Front

Overview of Raybestos Specialty - Truck Disc Brake Rotor 780736

The Raybestos Specialty - Truck Disc Brake Rotor 780736 is engineered for reliable braking performance on Dodge Ram trucks. Designed specifically for models including the Ram 1500, 2500, 3500, and 4000, this vented rotor meets the demands of heavy-duty truck applications.

• Vented disc brake rotor for improved heat dissipation
• Compatible with Dodge Ram 1500, 2500, 3500, and 4000 models
• Overall diameter of 360.05 mm (14.175 inches) for precise fitment
• Nominal thickness of 39.15 mm (1.541 inches) with discard thickness at 37.4 mm (1.472 inches)
• Eight mounting bolt holes with a 165 mm (6.496 inches) bolt circle diameter
• Smooth surface type for consistent braking contact
• Center hole diameter of 123 mm (4.843 inches) for proper hub alignment

Detailed Product Specifications

This Raybestos disc brake rotor features a vented design that enhances cooling during braking, reducing the risk of brake fade under heavy loads. The rotor's overall height measures 102.15 mm (4.021 inches), ensuring compatibility with the brake caliper assembly on Dodge Ram trucks. With eight mounting bolt holes arranged on a 165 mm bolt circle diameter, installation aligns precisely with factory specifications. The smooth surface finish promotes even pad wear and consistent braking performance. The nominal thickness of 39.15 mm provides durability, while the discard thickness of 37.4 mm indicates the minimum safe thickness before replacement is necessary.

Raybestos Specialty - Truck Product Line

The Specialty - Truck line from Raybestos is tailored for truck and heavy-duty vehicle applications, focusing on durability and performance under demanding conditions. This product line includes components designed to meet the rigorous requirements of trucks like the Dodge Ram series, ensuring reliable braking and extended service life in commercial and personal use scenarios.

Applications and Problem Solving

• Replaces worn or warped rotors causing brake pulsation
• Addresses overheating issues by improving heat dissipation with vented design
• Restores braking efficiency on Dodge Ram 1500, 2500, 3500, and 4000 models
• Eliminates uneven pad wear due to rotor surface irregularities
• Ensures proper fitment and alignment with factory bolt pattern and dimensions

Installation Notes and Tips

• Verify rotor thickness before installation; replace if below discard thickness of 37.4 mm
• Clean mounting surface and hub to prevent rotor runout
• Torque mounting bolts to manufacturer specifications for secure fit
• Inspect brake pads and calipers during rotor replacement for optimal performance
• Use proper tools to avoid damage to rotor surface and mounting holes

Quality Assurance and Warranty

Raybestos disc brake rotors undergo rigorous quality control to meet industry standards for durability and performance. The Specialty - Truck line is manufactured to provide consistent braking characteristics suitable for Dodge Ram trucks. Warranty information is available through Raybestos and typically covers defects in materials and workmanship under normal use conditions.
