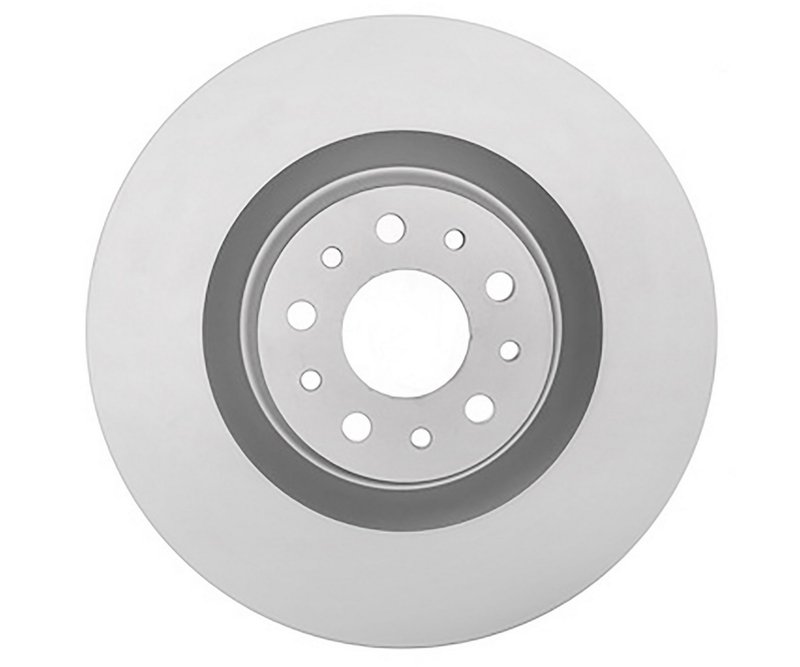

Raybestos 781770 Disc Brake Rotor - Front

Overview of Raybestos Specialty - Street Performance Rotor

The Raybestos Specialty - Street Performance disc brake rotor 781770 is engineered for reliable braking on the Fiat 500L. Designed to meet specific fitment requirements, this rotor ensures consistent performance and durability for street driving conditions.

• Compatible with Fiat 500L models
• Part number 781770 for precise identification
• Vented rotor design for improved heat dissipation
• Nominal thickness of 1.104 inches (28.05 mm)
• Discard thickness at 1.004 inches (25.5 mm)
• Overall height of 1.801 inches (45.75 mm)
• Outside diameter of 12.008 inches (305 mm)
• Inside diameter of 7.598 inches (193 mm)
• 5 mounting bolt holes with 0.516 inch (13.1 mm) diameter
• Smooth surface type for consistent pad contact

Raybestos Specialty - Street Performance Product Line

The Specialty - Street Performance line by Raybestos focuses on delivering rotors that balance everyday street driving with enhanced performance characteristics. This product line is designed to provide dependable braking with vented rotors that help manage heat buildup during typical urban and suburban driving scenarios. The 781770 rotor fits within this line by offering a vented, smooth surface rotor that meets the exact specifications required for the Fiat 500L.

Detailed Product Description

This Raybestos disc brake rotor 781770 is a vented, conventional rotor designed specifically for the Fiat 500L. The vented design improves airflow to reduce heat and maintain braking efficiency during repeated stops. With a nominal thickness of 1.104 inches and a discard thickness of 1.004 inches, this rotor provides a clear service life indicator to ensure safe replacement timing. The rotor’s overall height is 1.801 inches, and it features a smooth surface type to promote even brake pad wear and consistent braking performance. The rotor includes five mounting bolt holes with a bolt circle diameter of 3.858 inches (98 mm), ensuring proper fitment and secure installation.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Fiat 500L
• Improves braking consistency and reduces brake fade
• Addresses rotor thickness below manufacturer discard limits
• Resolves vibration or pulsation issues during braking
• Restores proper rotor dimensions for safe braking performance

Installation Notes and Tips

• Verify compatibility with Fiat 500L before installation
• Check rotor thickness and discard limits to confirm replacement necessity
• Ensure mounting bolt holes align with vehicle specifications
• Clean rotor surface before installation to remove any protective coatings
• Torque mounting bolts to manufacturer specifications for safety

Quality Assurance and Warranty

Raybestos rotors, including part number 781770, are manufactured to meet strict quality standards for durability and performance. The Specialty - Street Performance line undergoes rigorous testing to ensure consistent thickness, balanced construction, and reliable heat dissipation. Warranty coverage details should be confirmed with the product documentation or manufacturer, as it may vary by region and application.
