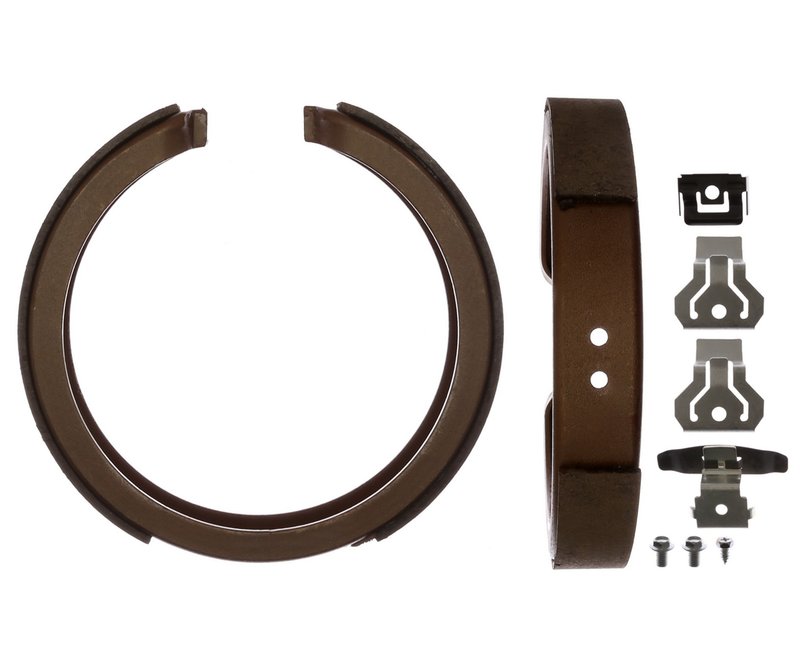

Raybestos 781PG Parking Brake Shoe - Rear

Raybestos 781PG Rear Parking Brake Shoe

Raybestos 781PG is a rear parking brake shoe built with organic friction material for controlled engagement and consistent holding performance. It is sized for 210 mm brake drums and is listed for a wide range of GM trucks, SUVs, and vans, including Chevrolet Silverado 1500, Tahoe, and GMC Sierra 1500 rear applications.

Key Features

• Organic friction lining for smooth parking brake engagement
• Brake drum diameter: 210.000 mm (8.268 in.)
• Brake shoe width: 29.600 mm (1.165 in.)
• Friction lining length: 9.330 in.
• Friction lining width: 1.200 in.
• Shoe assembly radius: 4.140 in.
• Steel radius: 4.000 in.
• Steel width: 1.274 in.
• Web thickness: 0.602 in.

Product Details

The Raybestos Element3; Organic line focuses on parking brake shoes with organic friction material for predictable contact inside the drum. Part number 781PG is engineered around the listed drum and shoe dimensions, helping maintain proper shoe-to-drum geometry on rear parking brake systems. This part cross-references Wagner Brake Z781 and PowerStop B781 for the same application.

Compatible With rear parking brake applications on Cadillac Escalade, Chevrolet Suburban 1500, GMC Yukon, Chevrolet Silverado 1500, and related GM platforms across the listed model years. The 781PG part number is also used across multiple interchange references for service matching on these vehicles.

What It Helps Address

• Weak parking brake holding force
• Uneven shoe contact inside the drum
• Noise or chatter from worn parking brake shoes
• Reduced parking brake effectiveness on rear drum-in-hat systems
• Service replacement for worn organic friction linings

Installation Notes

Verify rear drum diameter, shoe width, and parking brake hardware condition before installation. Confirm vehicle-specific fitment by year, make, model, and rear position, especially on applications with four-wheel steering notes or special parking brake cable configurations. After installation, adjust the parking brake to the manufacturer specification and test engagement before returning the vehicle to service.

Quality Assurance

Raybestos Element3; Organic brake components are built to match the listed application dimensions and friction material type for service replacement use. Part number 781PG is cataloged for rear fitment on 1999-2014 GM trucks, SUVs, and vans shown in the fitment data.

• Fits 2002-2014 Cadillac Escalade, rear
• Fits 2003-2014 Cadillac Escalade ESV, rear
• Fits 2003-2014 Chevrolet Express 1500, rear
• Fits 2000-2014 Chevrolet Suburban 1500, rear
• Fits 2000-2014 Chevrolet Tahoe, rear
• Fits 2000-2014 GMC Yukon, rear
• Fits 2000-2014 GMC Yukon XL 1500, rear
• Fits 2002-2013 Cadillac Escalade EXT, rear
• Fits 2007-2013 Chevrolet Avalanche, rear
• Fits 1999-2013 Chevrolet Silverado 1500, rear
• Fits 2003-2013 GMC Savana 1500, rear
• Fits 1999-2013 GMC Sierra 1500, rear
• Fits 2006-2011 Cadillac DTS, rear
• Fits 2002-2009 Chevrolet Trailblazer, rear
• Fits 2002-2009 GMC Envoy, rear
• Fits 2005-2009 Saab 9-7x, rear
• Fits 2003-2008 Isuzu Ascender, rear
• Fits 2004-2007 Buick Rainier, rear
• Fits 2007 Chevrolet Silverado 1500 Classic, rear
• Fits 2007 GMC Sierra 1500 Classic, rear
• Fits 2002-2006 Chevrolet Avalanche 1500, rear
• Fits 2006 Chevrolet Silverado 1500 HD, rear, 4 Wheel Steering - Compatible with vehicles equipped with 4 wheel steering configurations.
• Fits 2003-2006 Chevrolet SSR, rear
• Fits 2002-2006 Chevrolet Trailblazer EXT, rear
• Fits 2002-2006 GMC Envoy XL, rear
• Fits 2006 GMC Sierra 1500 HD, rear, 4 Wheel Steering - Compatible with vehicles equipped with 4 wheel steering configurations.
• Fits 2000-2005 Cadillac DeVille, rear
• Fits 2003-2005 Chevrolet Astro, rear
• Fits 2005 Chevrolet Silverado 1500 HD, rear
• Fits 2001-2003 Chevrolet Silverado 1500 HD, rear
• Fits 2004-2005 Chevrolet Silverado 2500 HD, rear, 4 Wheel Steering - Compatible with vehicles equipped with 4 wheel steering configurations.
• Fits 2003-2005 Chevrolet Suburban 2500, rear, Parking Brake Cable with Four Wheel Steering
• Fits 2004-2005 GMC Envoy XUV, rear
• Fits 2003-2005 GMC Safari, rear
• Fits 2005 GMC Sierra 1500 HD, rear
• Fits 2001-2003 GMC Sierra 1500 HD, rear
• Fits 2004-2005 GMC Sierra 2500 HD, rear, 4 Wheel Steering - Compatible with vehicles equipped with 4 wheel steering configurations.
• Fits 2003-2005 GMC Yukon XL 2500, rear, Parking Brake Cable with Four Wheel Steering
• Fits 2004 Chevrolet Silverado 2500, rear, 4 Wheel Steering - Compatible with vehicles equipped with 4 wheel steering configurations.
• Fits 2004 GMC Sierra 2500, rear, 4 Wheel Steering - Compatible with vehicles equipped with 4 wheel steering configurations.
• Fits 2002-2004 Oldsmobile Bravada, rear
