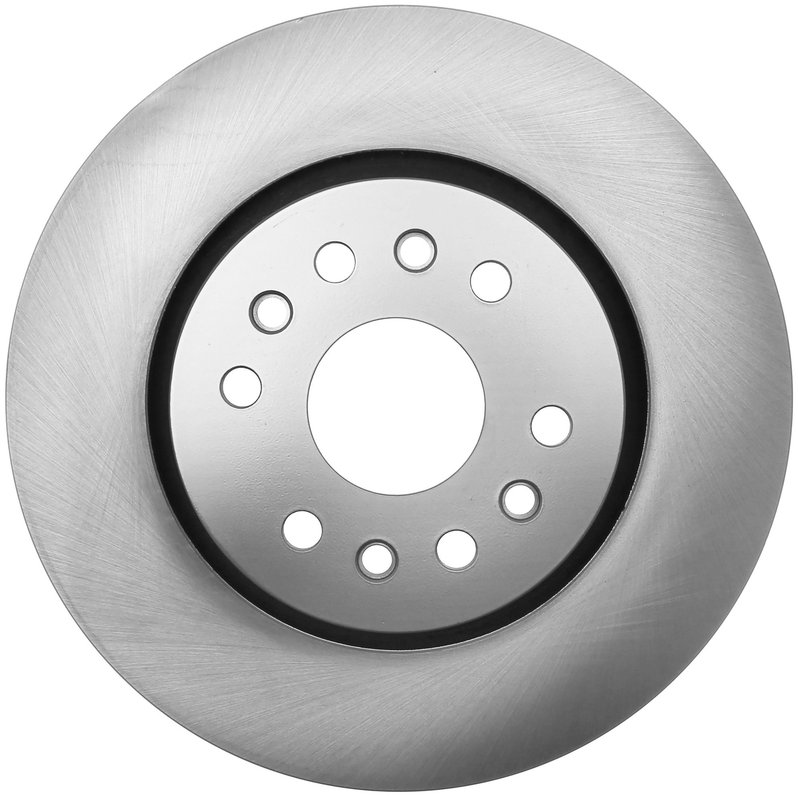

Raybestos 782776R Disc Brake Rotor - Front
| Brand | Raybestos 782776R |
|---|---|
| Position | Front |
| Discard Thickness | 1.118 |
| Discard Thickness | 28.4 |
| Nominal Thickness | 1.177 |
| Nominal Thickness | 29.9 |
| Construction | Full cast |
| Inside Diameter | 239.5 |
| Inside Diameter | 9.429 |
| Overall Height | 2.654 |
| Overall Height | 67.4 |
| Outside Diameter | 14.882 |
| Outside Diameter | 378 |
| Grade Type | Regular |
| ABS Tone Ring Included | No |
| Solid Or Vented Type Rotor | Vented |
| Bearings Included | No |
| Center Hole Diameter | 3.091 |
| Center Hole Diameter | 78.5 |
| Mounting Bolt Hole Circle Diameter | 139.7 |
| Mounting Bolt Hole Circle Diameter | 5.5 |
| Mounting Bolt Hole Diameter | 0.675 |
| Mounting Bolt Hole Diameter | 17.15 |
| Stud/Lug Hole Quantity | 6 |
| Stud/Lug Hole Diameter | 0.675 |
| Stud/Lug Hole Diameter | 17.15 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Harmonize Code | 8708.30.5030 |
| Salability Restrictions | No |
| UNSPSC Code | 25171715 |
| Product line | Raybestos R-Line |
| Fits | Jeep and Ram · 14 vehicles |
Full cast construction. Provides a solid, durable rotor design for dependable braking performance.
Vented design. Helps air flow through the rotor for more efficient heat management.
Conventional rotor. A straightforward brake rotor style for regular replacement needs.
Cross-references Centric Parts 120.67086, Centric Parts 121.67086 and DuraGo BR901978 for the same application. See all 13.
Raybestos R-Line Front Brake Rotor for Jeep and Ram
The Raybestos R-Line 782776R is a front disc brake rotor built for specific Jeep and Ram applications. It uses a full cast, vented construction with OE-style dimensions to support consistent brake performance and proper fitment.
Key Features
- Part number: 782776R
- Raybestos R-Line brake rotor for front axle applications
- Full cast construction
- Vented rotor design
- Outside diameter: 14.882 in. (378 mm)
- Nominal thickness: 1.177 in. (29.9 mm)
- Discard thickness: 1.118 in. (28.4 mm)
- Center hole diameter: 3.091 in. (78.5 mm)
- 6-lug bolt pattern with 5.5 in. (139.7 mm) bolt circle
- Conventional rotor design; ABS tone ring not included
Detailed Description
Raybestos R-Line focuses on OE-style replacement brake components for everyday service needs. This 782776R front rotor is built as a conventional, vented disc brake rotor with a full cast design and regular grade construction, making it a direct-fit option for select Jeep Grand Wagoneer, Jeep Wagoneer, Jeep Grand Wagoneer L, Jeep Wagoneer L, and Ram 1500 front brake applications. The rotor’s dimensions, including its 14.882-inch outside diameter, 2.654-inch overall height, and 6-lug mounting pattern, are specified to match the listed vehicle platforms.
This part cross-references Mopar 68437269AA for the same application. The Raybestos 782776R is also listed with interchange references used across the aftermarket, helping simplify replacement part selection when servicing the front brake system on a Jeep Grand Wagoneer or Ram 1500.
What It Helps Address
- Front brake pulsation caused by rotor wear or thickness variation
- Reduced braking consistency from a worn or heat-cycled rotor
- Rotor scoring or surface damage from normal brake use
- Brake service needs on vehicles with the listed OE brake package
- Replacement of a front rotor that no longer meets discard thickness
Installation Notes and Tips
Verify rotor dimensions, bolt pattern, and vehicle brake code before installation. This rotor is for front position use only and does not include bearings or an ABS tone ring. Confirm hub and knuckle compatibility on 2021-2024 Ram 1500 and 2022-2024 Jeep Grand Wagoneer/Wagoneer applications, including Grand Wagoneer L and Wagoneer L models where listed.
- Fits 2024 Jeep Grand Wagoneer, front
- Fits 2023-2024 Jeep Grand Wagoneer L, front
- Fits 2024 Jeep Wagoneer, front
- Fits 2023-2024 Jeep Wagoneer L, front
- Fits 2021-2024 Ram 1500, front
- Fits 2022-2023 Jeep Grand Wagoneer, front
- Fits 2022-2023 Jeep Wagoneer, front
Quality Assurance
Raybestos R-Line brake components are built for service replacement applications with OE-style fitment and dimensional accuracy. The 782776R is manufactured as a full cast, vented rotor with published specifications for thickness, diameter, and mounting geometry to support proper brake system service.
| Year | Make | Model | Liters | Cylinders | Position | Notes |
|---|---|---|---|---|---|---|
| 2024 | Jeep | Grand Wagoneer | — | — | Front | Brake & Knuckle Parts Module [X8X]; Raybestos R-Line |
| 2024 | Jeep | Grand Wagoneer L | — | — | Front | Brake & Knuckle Parts Module [X8X]; Raybestos R-Line |
| 2024 | Jeep | Wagoneer | — | — | Front | Brake & Knuckle Parts Module [X8X]; Raybestos R-Line |
| 2024 | Jeep | Wagoneer L | — | — | Front | Brake & Knuckle Parts Module [X8X]; Raybestos R-Line |
| 2024 | Ram | 1500 | 6.2L | V8 | Front | Chrysler Brake Code BNN; Raybestos R-Line |
| 2023 | Jeep | Grand Wagoneer | — | — | Front | Raybestos R-Line |
| 2023 | Jeep | Grand Wagoneer L | — | — | Front | Brake & Knuckle Parts Module [X8X]; Raybestos R-Line |
| 2023 | Jeep | Wagoneer | — | — | Front | Raybestos R-Line |
| 2023 | Jeep | Wagoneer L | — | — | Front | Brake & Knuckle Parts Module [X8X]; Raybestos R-Line |
| 2023 | Ram | 1500 | 6.2L | V8 | Front | Chrysler Brake Code BNN; Raybestos R-Line |
| 2022 | Jeep | Grand Wagoneer | — | — | Front | Raybestos R-Line |
| 2022 | Jeep | Wagoneer | — | — | Front | Raybestos R-Line |
| 2022 | Ram | 1500 | 6.2L | V8 | Front | Chrysler Brake Code BNN; Raybestos R-Line |
| 2021 | Ram | 1500 | 6.2L | V8 | Front | Chrysler Brake Code BNN; Raybestos R-Line |
