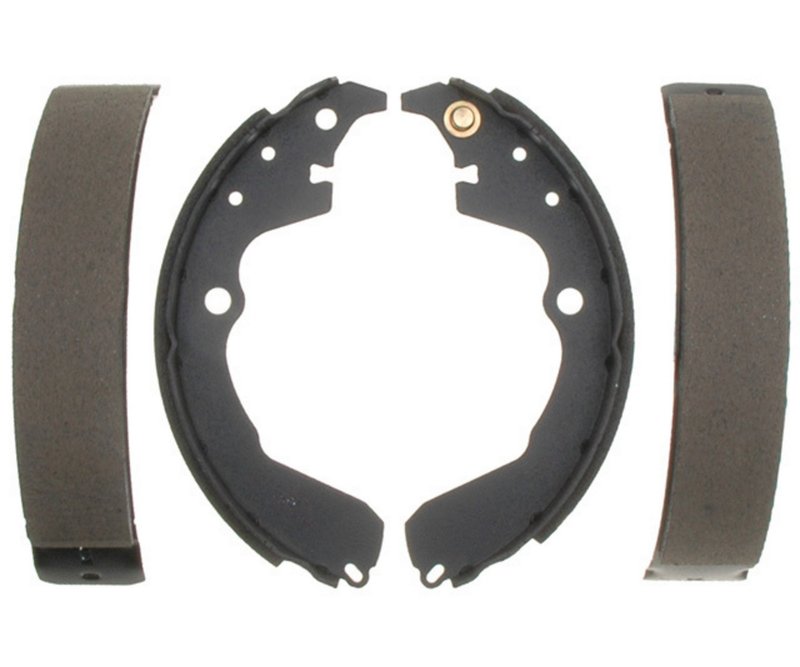

Raybestos 785PG Drum Brake Shoe - Rear

Raybestos 785PG Rear Drum Brake Shoe

Raybestos Element3 Organic drum brake shoe 785PG is built for rear brake service on select Pontiac Vibe and Toyota Matrix applications. It uses an organic friction material and a 1.575-inch (40.000 mm) shoe width for a direct-fit rear drum brake replacement.

Key Features

• Part number 785PG
• Raybestos Element3; Organic product line
• Organic friction material for rear drum brake service
• Brake shoe width: 1.575 in. / 40.000 mm
• Brake drum diameter: 9.016 in. / 229.000 mm
• Fits rear brake applications on 2003-2008 Pontiac Vibe and 2003-2008 Toyota Matrix

Product Details

The Raybestos Element3 Organic line focuses on a balanced brake shoe construction for everyday rear drum brake replacement. This 785PG shoe is specified for a 9.016-inch drum diameter and is sized to match the listed rear applications on the Pontiac Vibe and Toyota Matrix. If you are searching for a rear drum brake shoe for 2003-2008 Pontiac Vibe or 2003-2008 Toyota Matrix, part number 785PG matches the confirmed fitment data for those vehicles.

This part cross-references Wagner Brake Z785 for the same application.

Common Problems This Part Can Address

• Rear brake shoe wear that reduces braking performance
• Noise from worn drum brake friction surfaces
• Uneven rear braking caused by aged shoe material
• Reduced contact in a rear drum brake assembly
• Service replacement needs for 2003-2008 Pontiac Vibe and Toyota Matrix rear brakes

Installation Notes and Tips

Confirm drum diameter, shoe width, and rear position before installation. Inspect the brake drum, wheel cylinder, return springs, and adjuster components during service so the new shoe can seat correctly. After installation, adjust the rear drum brake assembly to factory specification and verify pedal feel and brake balance during a controlled test.

Quality Assurance

Raybestos Element3 Organic brake components are built around application-specific friction material and dimensional fitment for the listed rear drum brake service. This 785PG is matched to the confirmed vehicle applications and brake drum specifications provided above.
