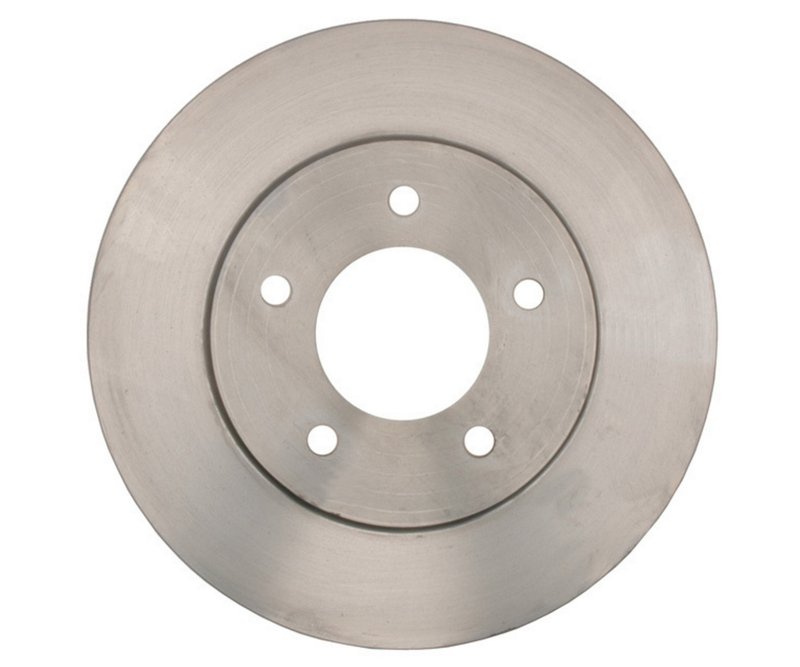

Raybestos 7929R Disc Brake Rotor - Front

Raybestos R-Line 7929R Front Brake Rotor

The Raybestos R-Line 7929R is a vented front disc brake rotor built for 1987-1990 Dodge Dakota applications. With a 11.315-inch outside diameter and conventional rotor design, it matches the fitment and dimensions needed for front brake service on these trucks.

The R-Line product line focuses on dependable replacement brake components for everyday repair work. For shoppers looking for a front brake rotor for a 1987-1990 Dodge Dakota, the 7929R provides the key dimensional specs needed for a direct replacement search.

Key Features

• Raybestos R-Line replacement rotor
• Part number 7929R
• Front disc brake rotor for 1987-1990 Dodge Dakota
• Vented rotor construction
• Conventional drum-in-hat style not used; conventional rotor design
• Outside diameter: 11.315 in. / 287.400 mm
• Nominal thickness: 0.865 in. / 21.950 mm
• Discard thickness: 0.811 in. / 20.600 mm
• Overall height: 2.495 in. / 63.350 mm
• 5-lug pattern with 5 mounting bolt holes
• Bolt circle diameter: 4.500 in. / 114.300 mm
• Center hole diameter: 2.901 in. / 73.700 mm

Detailed Description

Raybestos 7929R is a vented front brake rotor engineered for the 1987-1990 Dodge Dakota, front position. Its 5-bolt mounting pattern, 4.500-inch bolt circle, and 2.901-inch center hole diameter are important reference points when matching a replacement rotor to the vehicle hub and wheel setup. If you are searching for a front brake rotor for a Dodge Dakota 1987-1990, this part number is a direct fitment reference to verify against your existing rotor.

This part cross-references Centric Parts 121.67016 and Continental 60875 for the same application.

What It Helps Address

• Brake pulsation caused by rotor wear or thickness variation
• Reduced braking performance from a worn front rotor
• Rotor scoring or surface damage
• Brake noise related to uneven rotor surfaces
• Service replacement for a front rotor on a Dodge Dakota

Installation Notes and Tips

Confirm rotor dimensions, hub fit, and bolt pattern before installation. Inspect pads, calipers, and wheel bearings during brake service, and replace any worn components that could affect rotor life or braking feel. Clean the hub mounting surface thoroughly so the rotor seats flat and runs true.

For fitment, this rotor fits 1987-1990 Dodge Dakota, front. Verify the part number 7929R against your vehicle’s brake specifications before ordering.

Quality Assurance

Raybestos is a recognized brake parts brand with a broad replacement catalog, and the R-Line is positioned as a practical service line for routine brake repairs. The 7929R is specified with clear dimensional data to support accurate parts matching for front brake service.
