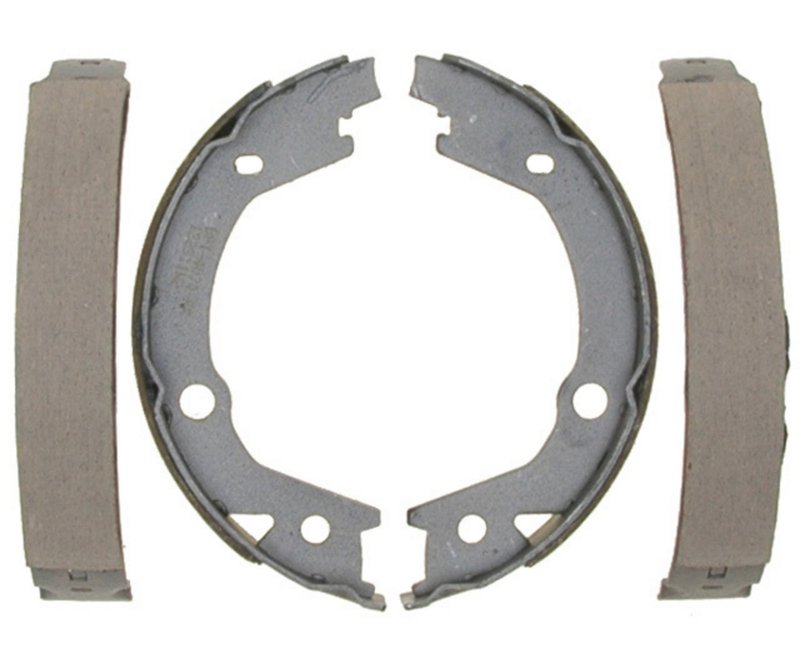

Raybestos 845PG Parking Brake Shoe - Rear

Raybestos 845PG Parking Brake Shoe for Rear Applications

The Raybestos 845PG parking brake shoe is built for rear drum parking brake service on select Hyundai and Kia vehicles. It uses an organic friction material and a 6.614-inch brake drum diameter specification to support consistent parking brake engagement in the listed applications.

Key Features

• Part number: 845PG
• Raybestos Element3; Organic product line
• Organic friction material for parking brake service
• Brake shoe width: 1.051 in. / 26.700 mm
• Brake drum diameter: 6.614 in. / 168.000 mm
• Shoe assembly radius: 3.300 in.
• Steel width: 1.050 in.
• Rear position fitment for select Hyundai Elantra, Sonata, Tucson, and Kia Optima and Sportage models

Product Details

Raybestos Element3; Organic parking brake shoes are specified for rear applications where a precise drum match and stable friction surface matter. The 845PG uses organic lining material and defined shoe geometry to match the listed drum diameter and width requirements. This part fits 2007-2010 Hyundai Elantra, rear; 2006-2010 Hyundai Sonata, rear; 2007-2010 Kia Optima, rear; 2005-2010 Kia Sportage, rear; 2005-2009 Hyundai Tucson, rear; and 2006 Hyundai Elantra, rear. This part cross-references Bosch BS845 and Wagner Brake Z845 for the same application.

Common Issues This Part Can Address

• Weak or inconsistent parking brake hold
• Noise from worn rear parking brake shoes
• Reduced friction from glazed or contaminated shoe lining
• Parking brake travel that no longer engages properly
• Uneven rear parking brake performance on drum-style systems

Installation Notes and Tips

Verify drum diameter, shoe width, and rear fitment before installation. Clean the brake drum and inspect the parking brake hardware, adjuster, and backing plate contact points for wear before assembly. Confirm the vehicle application by year, make, model, and rear position: Fits 2007-2010 Hyundai Elantra, rear; Fits 2006-2010 Hyundai Sonata, rear; Fits 2007-2010 Kia Optima, rear; Fits 2005-2010 Kia Sportage, rear; Fits 2005-2009 Hyundai Tucson, rear; Fits 2006 Hyundai Elantra, rear.

Quality Assurance

Raybestos manufactures brake components for service applications that require dimensional accuracy and consistent friction characteristics. The Element3; Organic line identifies this shoe as an organic-friction parking brake component for the listed rear applications.
