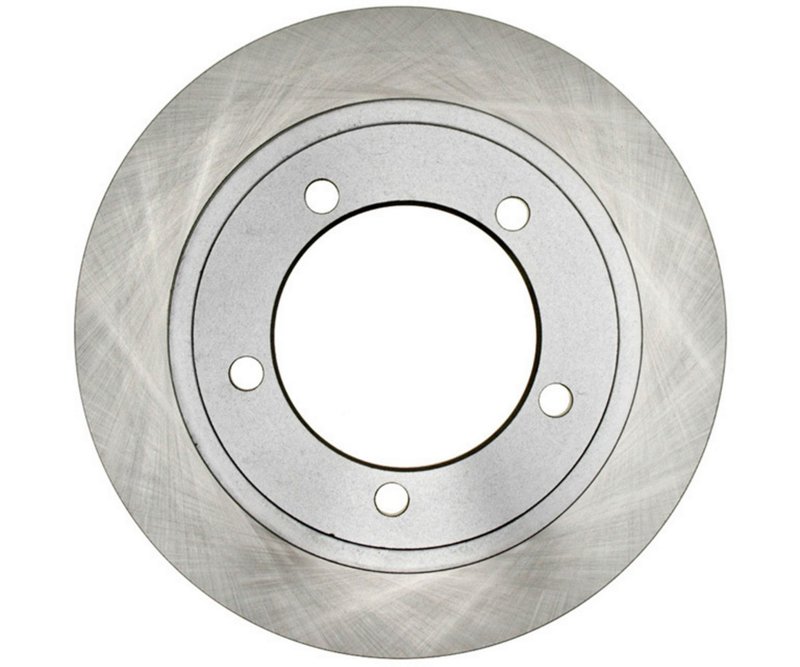

Raybestos 8512R Disc Brake Rotor - Front or Rear

Raybestos R-Line 8512R Disc Brake Rotor Overview

The Raybestos R-Line 8512R disc brake rotor is engineered for reliable braking performance and durability. Designed as a vented, conventional rotor, it offers effective heat dissipation and consistent stopping power for various vehicle applications.

• Vented disc brake rotor design for improved heat management
• Overall height of 3.800 inches (96.5 mm) ensures proper fitment
• Outside diameter measures 14.750 inches (374.65 mm) for compatibility with specific brake systems
• Mounting bolt hole quantity of 5 with a 0.660 inch (16.75 mm) diameter
• Center hole diameter of 5.404 inches (137.25 mm) for accurate hub alignment
• Nominal thickness of 1.345 inches (34.15 mm) with discard thickness at 1.225 inches (31.1 mm) to maintain rotor integrity
• Mounting bolt hole circle diameter of 6.750 inches (171.45 mm) for secure installation
• Stud/lug hole quantity of 5 for proper wheel attachment

Detailed Product Description

The Raybestos R-Line 8512R rotor is a vented, conventional disc brake rotor designed to provide consistent braking performance under various driving conditions. The vented design allows for enhanced airflow, reducing heat buildup during braking and minimizing the risk of brake fade. With an overall height of 3.800 inches and an outside diameter of 14.750 inches, this rotor is engineered to fit specific vehicle brake assemblies requiring these dimensions.

The rotor features a nominal thickness of 1.345 inches, with a discard thickness of 1.225 inches, indicating the minimum thickness before replacement is necessary to maintain safe braking performance. The 5 mounting bolt holes and 5 stud/lug holes ensure compatibility with vehicles that use this bolt pattern, while the center hole diameter of 5.404 inches guarantees proper hub centering. The mounting bolt hole circle diameter of 6.750 inches further supports secure and precise installation.

Raybestos R-Line Product Line

The R-Line by Raybestos is a product line focused on delivering dependable brake components that meet or exceed OEM specifications. This line emphasizes quality materials and manufacturing processes to provide rotors that maintain structural integrity and performance over time. The 8512R rotor is part of this line, offering a balance of durability and effective heat dissipation suitable for a range of vehicle applications.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors causing brake pulsation
• Upgrading from solid to vented rotors for improved heat dissipation
• Resolving brake noise or vibration related to rotor thickness wear
• Ensuring proper fitment for vehicles requiring a 5-lug, 14.75-inch diameter rotor
• Maintaining braking performance by replacing rotors at discard thickness

Installation Notes and Tips

• Verify rotor dimensions and bolt pattern compatibility with your vehicle before installation
• Inspect hub surface for cleanliness and flatness to ensure proper rotor seating
• Torque mounting bolts to manufacturer specifications to avoid rotor warping
• Check brake pads for wear and replace if necessary when installing new rotors
• Perform a bed-in procedure after installation to optimize braking performance

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet stringent quality standards, ensuring consistent performance and durability. While specific warranty details for part number 8512R are not provided here, Raybestos typically offers limited warranties covering defects in materials and workmanship. It is recommended to consult Raybestos or the vehicle manufacturer for exact warranty terms related to this rotor.
