OE Quality
60-Day Returns

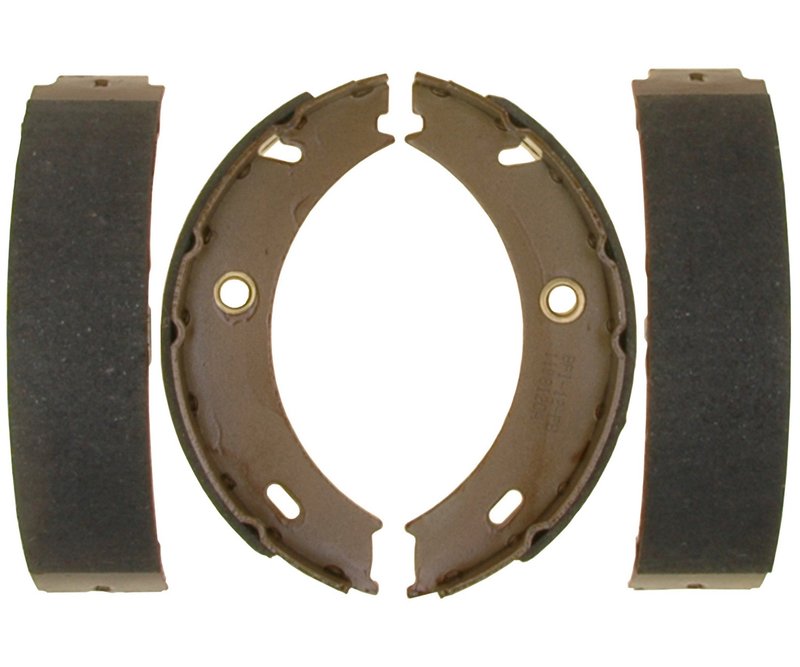

Raybestos 865PG Parking Brake Shoe - Rear
Raybestos Element3 Organic Parking Brake Shoe
Raybestos 865PG is a rear parking brake shoe built for specific Mercedes-Benz Sprinter and Dodge Sprinter applications. It uses an organic friction material and is sized for the listed brake drum diameter and shoe dimensions to support consistent parking brake engagement.
Key Features
- Organic friction material for parking brake service
- Brake shoe width: 1.579 in. / 40.100 mm
- Brake drum diameter: 6.614 in. / 168.000 mm
- Shoe assembly radius: 3.315 in.
- Steel width: 1.580 in.
- Rear-position parking brake shoe for listed Sprinter applications
Element3 Organic Product Line
The Raybestos Element3 Organic line focuses on OE-style friction characteristics for parking brake applications. For this part, the organic lining material is paired with the specified shoe geometry to match the rear drum parking brake setup used on the listed Mercedes-Benz Sprinter and Dodge Sprinter models.
Fitment
- Fits 2021-2023 Mercedes-Benz Sprinter 1500, rear, with Manual Parking Brake; Raybestos Element 3
- Fits 2021-2023 Mercedes-Benz Sprinter 2500, rear, with Manual Parking Brake; Raybestos Element 3
- Fits 2021-2023 Mercedes-Benz Sprinter 3500, rear, Solid Rotor; Raybestos Element 3
- Fits 2003-2006 Dodge Sprinter 2500, rear, with 285mm Diameter Rotor; Element3; Organic
- Fits 2003-2006 Dodge Sprinter 3500, rear, Vented Rotor; Element3; Organic
This part cross-references Wagner Brake Z865 for the same application.
What It Helps Address
- Weak or inconsistent parking brake hold
- Parking brake shoe wear on rear drum-style systems
- Noise or reduced contact from worn friction material
- Service replacement needs on Sprinter rear parking brake assemblies
Installation Notes and Tips
Confirm rear axle application, rotor type, and parking brake configuration before installation. Match the shoe dimensions and drum diameter to the existing hardware and inspect the drum surface, backing plate contact points, and related parking brake components during service. Verify fitment against the vehicle’s brake setup for the exact Mercedes-Benz Sprinter or Dodge Sprinter model listed.
Quality Assurance
Raybestos manufactures brake components for service applications that require dimensional accuracy and consistent friction performance. Part number 865PG is built to the listed specifications for the confirmed rear fitments.
| Brand | Raybestos |
|---|---|
| Part Number | 865PG |
| Position | Element3; Organic, Rear |
| Brake Shoe Width | 1.579 |
| Brake Shoe Width | 40.100 |
| Friction Material | Organic |
| Rotor Outside Diameter | 6.614 |
| Rotor Outside Diameter | 168.000 |
| Shoe Assembly Radius | 3.315 |
| Steel Width | 1.580 |
This part fits 17 vehicles. Search below:
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2023 | Mercedes-Benz | Sprinter 1500 | Rear | with Manual Parking Brake; Raybestos Element 3 |
| 2023 | Mercedes-Benz | Sprinter 2500 | Rear | with Manual Parking Brake; Raybestos Element 3 |
| 2023 | Mercedes-Benz | Sprinter 3500 | Rear | Solid Rotor; Raybestos Element 3 |
| 2022 | Mercedes-Benz | Sprinter 1500 | Rear | with Manual Parking Brake; Raybestos Element 3 |
| 2022 | Mercedes-Benz | Sprinter 2500 | Rear | with Manual Parking Brake; Raybestos Element 3 |
| 2022 | Mercedes-Benz | Sprinter 3500 | Rear | Solid Rotor; Raybestos Element 3 |
| 2021 | Mercedes-Benz | Sprinter 1500 | Rear | with Manual Parking Brake; Raybestos Element 3 |
| 2021 | Mercedes-Benz | Sprinter 2500 | Rear | with Manual Parking Brake; Raybestos Element 3 |
| 2021 | Mercedes-Benz | Sprinter 3500 | Rear | Solid Rotor; Raybestos Element 3 |
| 2006 | Dodge | Sprinter 2500 | Rear | with 285mm Diameter Rotor; Element3; Organic |
| 2006 | Dodge | Sprinter 3500 | Rear | Vented Rotor; Element3; Organic |
| 2005 | Dodge | Sprinter 2500 | Rear | with 285mm Diameter Rotor; Element3; Organic |
| 2005 | Dodge | Sprinter 3500 | Rear | Vented Rotor; Element3; Organic |
| 2004 | Dodge | Sprinter 2500 | Rear | with 285mm Diameter Rotor; Element3; Organic |
| 2004 | Dodge | Sprinter 3500 | Rear | Vented Rotor; Element3; Organic |
| 2003 | Dodge | Sprinter 2500 | Rear | with 285mm Diameter Rotor; Element3; Organic |
| 2003 | Dodge | Sprinter 3500 | Rear | Vented Rotor; Element3; Organic |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
