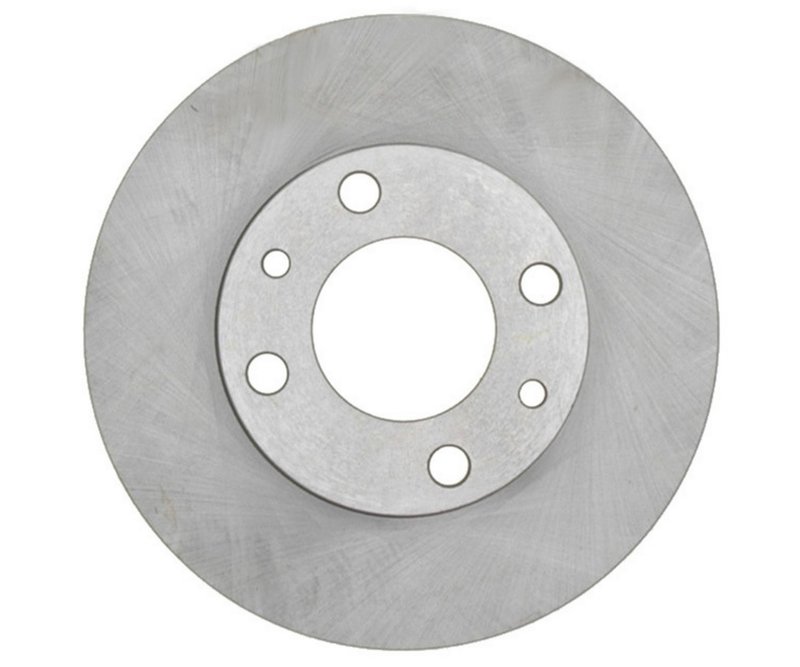

Raybestos 9006R Disc Brake Rotor - Front or Rear

Raybestos R-Line 9006R Disc Brake Rotor Overview

The Raybestos R-Line 9006R disc brake rotor is engineered for reliable braking performance in vehicles requiring a solid rotor design. This conventional rotor features precise dimensions to ensure proper fitment and consistent stopping power for compatible makes and models.

• Solid disc brake rotor with conventional design
• Overall height: 1.807 inches (45.900 mm)
• Outside diameter: 8.940 inches (227.100 mm)
• Mounting bolt hole quantity: 4 with 3.858 inch (98.000 mm) bolt circle diameter
• Center hole diameter: 2.440 inches (62.000 mm)
• Nominal thickness: 0.425 inches (10.800 mm)
• Discard thickness: 0.354 inches (9.000 mm)
• Stud/lug hole quantity: 4

Detailed Specifications and Design Features

The 9006R rotor from Raybestos' R-Line is a solid rotor designed for vehicles that require a conventional disc brake rotor rather than a vented or drum-in-hat type. Its nominal thickness of 0.425 inches (10.800 mm) provides a durable braking surface, while the discard thickness of 0.354 inches (9.000 mm) indicates the minimum safe thickness before replacement is necessary. The rotor's outside diameter of 8.940 inches (227.100 mm) and overall height of 1.807 inches (45.900 mm) ensure compatibility with specific vehicle brake assemblies. The 4 mounting bolt holes arranged on a 3.858 inch (98.000 mm) bolt circle diameter and 4 stud/lug holes facilitate secure installation.

Raybestos R-Line Product Line

The R-Line by Raybestos is a product line focused on delivering dependable brake components that meet or exceed OEM specifications. The 9006R rotor exemplifies this approach by combining precise manufacturing tolerances with materials engineered for consistent wear and performance. This line is suitable for drivers seeking reliable replacement rotors that maintain factory-level braking characteristics.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor thickness below manufacturer discard limits
• Resolving uneven brake pad wear due to rotor surface irregularities
• Improving braking stability in vehicles with solid rotor requirements
• Ensuring proper fitment in vehicles with 4-bolt mounting patterns and specific diameter needs

Installation Notes and Tips

Before installation, verify rotor dimensions against vehicle specifications to ensure compatibility. Clean the rotor surface to remove any protective coatings or contaminants. Use proper torque specifications on mounting bolts to avoid rotor warping. It is recommended to replace brake pads simultaneously to optimize braking performance and rotor lifespan.

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet stringent quality standards, ensuring consistent thickness and surface finish. While specific warranty details for part number 9006R should be confirmed with the supplier, Raybestos typically offers coverage against defects in materials and workmanship under normal use conditions.
