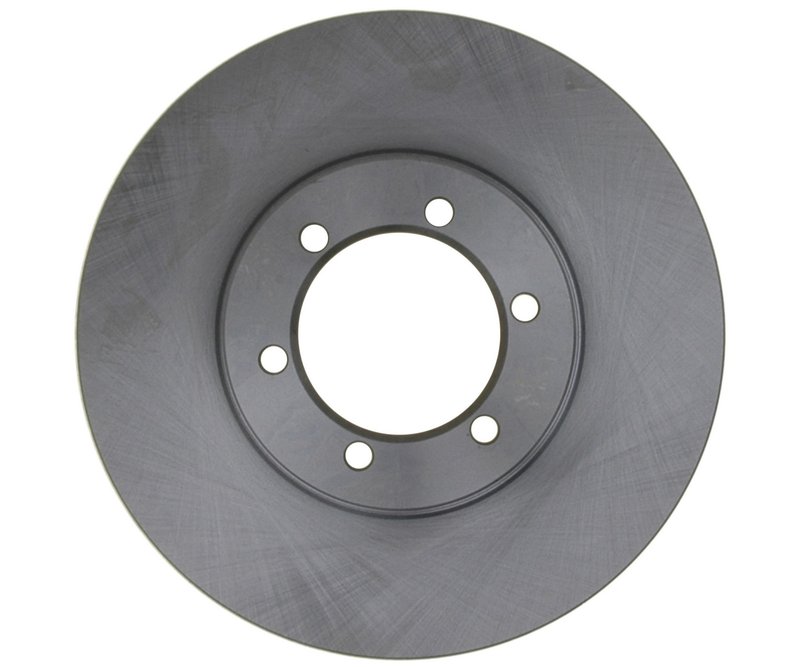

Raybestos 9204R Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Nissan 720

The Raybestos R-Line 9204R disc brake rotor is engineered to provide consistent braking performance for Nissan 720 vehicles. Designed with precision, this vented rotor ensures effective heat dissipation and durability under demanding driving conditions.

• Compatible with Nissan 720 models
• Vented disc brake rotor design for improved cooling
• Overall height: 1.710 inches (43.450 mm)
• Outside diameter: 10.675 inches (271.150 mm)
• Nominal thickness: 0.492 inches (12.500 mm)
• Discard thickness: 0.414 inches (10.500 mm)
• Mounting bolt hole quantity: 6 with 0.416 inch (10.550 mm) diameter
• Center hole diameter: 3.190 inches (81.050 mm)
• Mounting bolt hole circle diameter: 4.055 inches (103.000 mm)
• Conventional rotor type with drum-in-hat design

Raybestos R-Line Product Line Overview

The R-Line by Raybestos focuses on delivering reliable, OEM-quality brake components designed to meet or exceed factory specifications. The 9204R rotor is part of this line, offering a balance of performance and durability suitable for Nissan 720 owners seeking dependable replacement parts.

Technical Details and Performance

This disc brake rotor features a vented design that enhances heat dissipation, reducing the risk of brake fade during extended use. The nominal thickness of 0.492 inches (12.500 mm) ensures structural integrity, while the discard thickness of 0.414 inches (10.500 mm) indicates the minimum safe thickness for replacement. The rotor’s overall height of 1.710 inches (43.450 mm) and outside diameter of 10.675 inches (271.150 mm) are engineered to match Nissan 720 specifications precisely. With six mounting bolt holes and a center hole diameter of 3.190 inches (81.050 mm), installation aligns with factory standards.

Common Applications and Problem Solving

• Replacement for worn or warped rotors on Nissan 720
• Addresses brake pulsation and vibration issues
• Improves braking consistency and pedal feel
• Restores proper rotor thickness for safe braking
• Helps reduce overheating and brake fade during heavy use

Installation Notes and Tips

Ensure the rotor surface and hub are clean and free of rust before installation. Verify that the rotor thickness is above the discard thickness of 0.414 inches (10.500 mm) to maintain safety standards. Use proper torque specifications for the six mounting bolts to avoid rotor warping. It is recommended to inspect brake pads and replace them if worn to optimize braking performance with the new rotor.

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring reliable performance and durability. While specific warranty details are not provided here, Raybestos typically offers coverage against defects in materials and workmanship. Refer to Raybestos documentation for complete warranty information.
