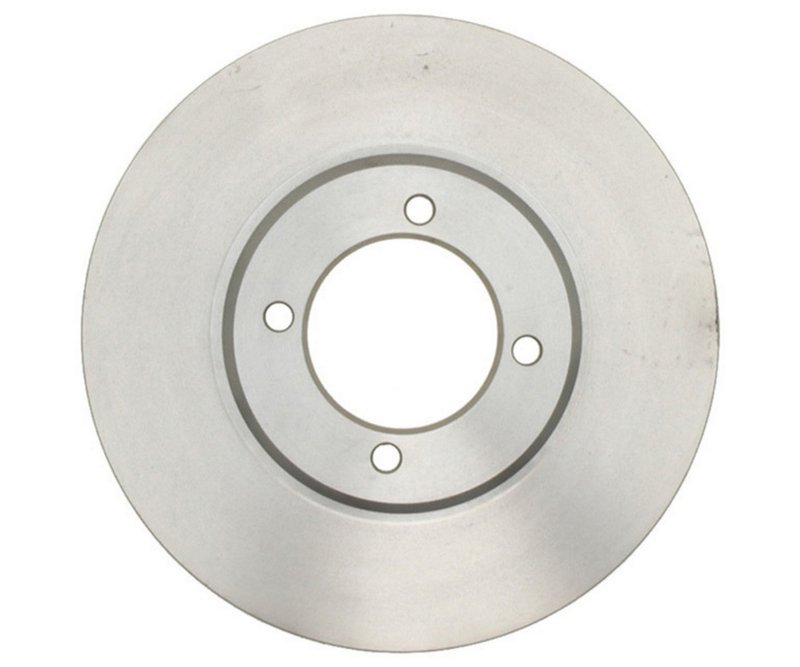

Raybestos 9248R Disc Brake Rotor - Front
| Brand | Raybestos 9248R |
|---|---|
| Position | Front |
| Center Hole Diameter | 2.992 |
| Center Hole Diameter | 76.000 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.453 |
| Discard Thickness | 11.500 |
| Mounting Bolt Hole Circle Diameter | 3.937 |
| Mounting Bolt Hole Circle Diameter | 100.000 |
| Mounting Bolt Hole Diameter | 0.411 |
| Mounting Bolt Hole Diameter | 10.450 |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.492 |
| Nominal Thickness | 12.500 |
| Outside Diameter | 10.475 |
| Outside Diameter | 266.050 |
| Overall Height | 1.650 |
| Overall Height | 41.900 |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
| Product line | R-Line |
| Fits | Toyota · 14 vehicles |
Conventional rotor. A straightforward disc brake rotor design for dependable braking performance.
Solid construction. Helps keep the rotor simple and durable for everyday use.
R-Line series. Raybestos replacement line focused on dependable fit and function.
Cross-references AMS Automotive 4027, Anchor 3117 and Anchor 9248 for the same application. See all 72.
Raybestos R-Line 9248R Front Brake Rotor
Raybestos R-Line 9248R is a solid front disc brake rotor built for select Toyota applications. It matches the listed OE-style dimensions for outside diameter, center hole, bolt circle, and mounting hole layout, making it a direct-fit replacement for the specified Corona and Cressida front brake setups.
The R-Line product line focuses on dependable replacement brake components for everyday service. For buyers searching for a front brake rotor for Toyota Corona or Toyota Cressida, Raybestos 9248R provides the dimensional accuracy needed for proper rotor alignment and brake system service.
- Solid, conventional front disc brake rotor
- Outside diameter: 10.475 in. / 266.050 mm
- Nominal thickness: 0.492 in. / 12.500 mm
- Discard thickness: 0.453 in. / 11.500 mm
- Overall height: 1.650 in. / 41.900 mm
- Center hole diameter: 2.992 in. / 76.000 mm
- 4 mounting bolt holes and 4 stud/lug holes
- Mounting bolt hole circle diameter: 3.937 in. / 100.000 mm
- Mounting bolt hole diameter: 0.411 in. / 10.450 mm
- Conventional, drum-in-hat type: conventional
Raybestos 9248R is used as a front brake rotor replacement for 1972 Toyota Corona, 1973 Toyota Corona, 1974-1982 Toyota Corona, and 1978-1980 Toyota Cressida. This part cross-references Centric Parts 121.44009 and Remy 14857 for the same application.
Common Replacement Uses
- Front brake pulsation caused by rotor wear or thickness variation
- Rotor scoring, grooves, or heat checking
- Brake noise related to an uneven rotor surface
- Service replacement for a worn Toyota Corona or Cressida front rotor
- Brake pedal vibration during stopping
Installation Notes and Tips
Verify rotor dimensions, bolt pattern, and center bore before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect pads, calipers, and wheel bearings at the same time to avoid repeat brake issues. After installation, follow the vehicle manufacturer’s brake bedding procedure.
Quality Assurance
Raybestos R-Line parts are built as replacement brake components for service applications, with specifications listed to support accurate fitment on the confirmed Toyota Corona and Toyota Cressida front brake applications.
| Year | Make | Model | Submodel | Position | Notes |
|---|---|---|---|---|---|
| 1982 | Toyota | Corona | — | Front | R-Line |
| 1981 | Toyota | Corona | — | Front | R-Line |
| 1980 | Toyota | Corona | — | Front | R-Line |
| 1980 | Toyota | Cressida | — | Front | R-Line |
| 1979 | Toyota | Corona | — | Front | R-Line |
| 1979 | Toyota | Cressida | — | Front | R-Line |
| 1978 | Toyota | Corona | — | Front | R-Line |
| 1978 | Toyota | Cressida | — | Front | R-Line |
| 1977 | Toyota | Corona | — | Front | R-Line |
| 1976 | Toyota | Corona | — | Front | R-Line |
| 1975 | Toyota | Corona | — | Front | R-Line |
| 1974 | Toyota | Corona | — | Front | R-Line |
| 1973 | Toyota | Corona | Mark II | Front | Replaces 9248; Raybestos R-Line |
| 1972 | Toyota | Corona | Mark II | Front | R-Line |
