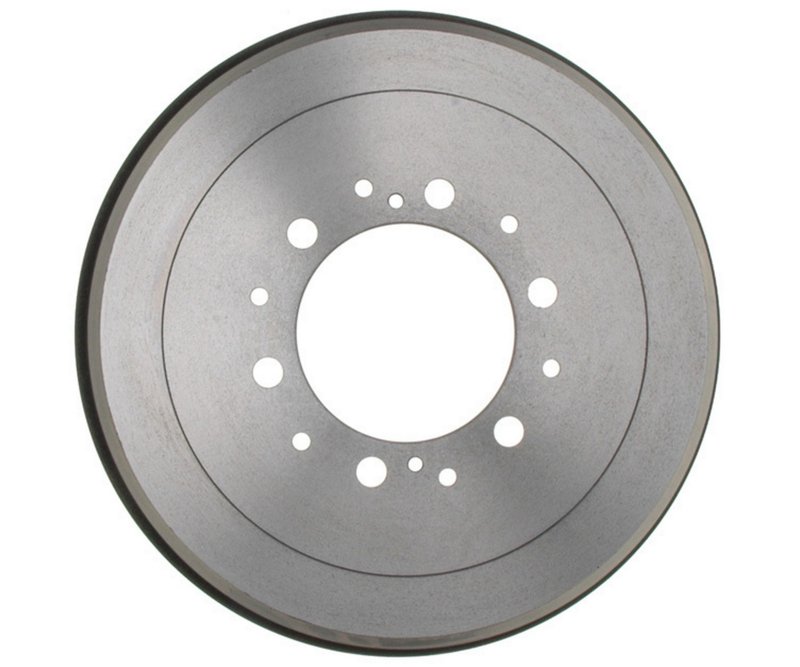

Raybestos 9328R Brake Drum - Rear
OE Quality 60-Day Returns
Raybestos
 R-Line

Raybestos 9328R Brake Drum - Rear

Brand Raybestos 9328R
Position Rear
Depth 2.530
Depth 64.250
Nominal Drum Diameter 0.460
Nominal Drum Diameter 11.700
Outer Cooling Fins Yes
Outside Diameter 0.531
Outside Diameter 13.500
Stud/Lug Hole Diameter 0.569
Stud/Lug Hole Diameter 14.450
Stud/Lug Hole Quantity 6
Product line R-Line
Fits Toyota · 49 vehicles

Brake drum. R-Line replacement for dependable braking performance.

Cooling fins. Help move heat away for more consistent stopping.

Six lug holes. Built with a 6-hole pattern for secure wheel mounting.

Cross-references Anchor 3558, Anchor 9516 and Beck/Arnley 083-2164 for the same application. See all 53.

$80.72Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Brake Drums are typically replaced in pairs, axle by axle.
Order total $80.72
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Brake Drum options

Raybestos R-Line Brake Drum 9328R for Toyota Rear Fitment

Raybestos R-Line brake drum 9328R is built for rear brake service on select Toyota trucks and SUVs, including Tacoma, Tundra, 4Runner, T100, and Pickup applications. With a 13.500-inch outside diameter, 2.530-inch depth, and 11.700-inch nominal drum diameter, it matches the dimensional requirements needed for proper rear drum brake operation.

Key Features

  • Raybestos R-Line brake drum, part number 9328R
  • 13.500-inch outside diameter and 2.530-inch depth
  • 11.700-inch nominal drum diameter
  • 6 stud/lug holes with 14.450 mm lug hole diameter
  • Outer cooling fins for added heat dissipation
  • Rear application for select Toyota models

Product Details

The Raybestos R-Line is the brand’s value-focused replacement line for everyday brake service, offering direct-fit coverage for common repair needs without unnecessary complexity. This brake drum 9328R is specified for rear use and is listed for 1986-2001 Toyota 4Runner, 1995-2003 Toyota Tacoma, 2000-2002 Toyota Tundra, 1993-1998 Toyota T100 with a 1/2 ton chassis, and 1986-1995 Toyota Pickup. This part cross-references DuraGo BD3558 and Beck/Arnley 083-2164 for the same application.

What This Brake Drum Helps Address

  • Rear brake pulsation caused by worn drum surfaces
  • Reduced braking consistency from heat-worn drums
  • Noise from out-of-spec rear drum components
  • Service replacement needs on Toyota Tacoma, Tundra, 4Runner, T100, and Pickup rear brakes
  • Brake shoe contact issues related to drum wear or scoring

Installation Notes and Tips

Verify drum diameter, lug pattern, and rear axle application before installation. Measure the existing drum and inspect brake shoes, wheel cylinders, and hardware condition during service so the new drum seats correctly and the rear brake system operates evenly. For Toyota T100 applications, confirm the vehicle is equipped with a 1/2 ton chassis.

Quality Assurance

Raybestos R-Line parts are positioned as practical replacement components for routine brake service. Part number 9328R is cataloged with defined dimensional specifications and vehicle-specific rear fitment for 1986-2003 Toyota applications.

Related reading

This part fits 49 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelDrive TypePositionNotes
2003ToyotaTacoma—4WDRearR-Line
2002ToyotaTacoma—4WDRearR-Line
2002ToyotaTacomaPre RunnerRWDRearR-Line
2002ToyotaTundra——RearR-Line
2001Toyota4Runner——RearR-Line
2001ToyotaTacoma—4WDRearR-Line
2001ToyotaTacomaPre RunnerRWDRearR-Line
2001ToyotaTundra——RearR-Line
2000Toyota4Runner——RearR-Line
2000ToyotaTacoma—4WDRearR-Line
2000ToyotaTacomaPre RunnerRWDRearR-Line
2000ToyotaTundra——RearR-Line
1999Toyota4Runner——RearR-Line
1999ToyotaTacoma—4WDRearR-Line
1999ToyotaTacomaPre RunnerRWDRearR-Line
1998Toyota4Runner——RearR-Line
1998ToyotaT100——RearCompatible with vehicles equipped with a 1/2 ton chassis.; R-Line
1998ToyotaTacoma—4WDRearR-Line
1998ToyotaTacomaPre RunnerRWDRearR-Line
1997Toyota4Runner——RearR-Line
1997ToyotaT100——RearCompatible with vehicles equipped with a 1/2 ton chassis.; R-Line
1997ToyotaTacoma—4WDRearR-Line
1996Toyota4Runner——RearR-Line
1996ToyotaT100——RearCompatible with vehicles equipped with a 1/2 ton chassis.; R-Line
1996ToyotaTacoma—4WDRearR-Line
1995Toyota4Runner——RearR-Line
1995ToyotaPickup—4WDRearR-Line
1995ToyotaT100——RearCompatible with vehicles equipped with a 1/2 ton chassis.; R-Line
1995ToyotaTacoma—4WDRearR-Line
1994Toyota4Runner——RearR-Line
1994ToyotaPickup—4WDRearR-Line
1994ToyotaT100——RearCompatible with vehicles equipped with a 1/2 ton chassis.; R-Line
1993Toyota4Runner——RearR-Line
1993ToyotaPickup—4WDRearR-Line
1993ToyotaT100——RearCompatible with vehicles equipped with a 1/2 ton chassis.; R-Line
1992Toyota4Runner——RearR-Line
1992ToyotaPickup—4WDRearR-Line
1991Toyota4Runner——RearR-Line
1991ToyotaPickup—4WDRearR-Line
1990Toyota4Runner——RearR-Line
1990ToyotaPickup—4WDRearR-Line
1989Toyota4Runner——RearR-Line
1989ToyotaPickup—4WDRearR-Line
1988Toyota4Runner——RearR-Line
1988ToyotaPickup—4WDRearR-Line
1987Toyota4Runner——RearR-Line
1987ToyotaPickup—4WDRearR-Line
1986Toyota4Runner——RearR-Line
1986ToyotaPickup—4WDRearR-Line
Directly replaces or cross-references 53 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Anchor — 3558Anchor — 9516Beck/Arnley — 083-2164Bosch — 15504Brembo — 14.6757.10Centric Parts — 122.44022Centric Parts — 123.44022DuraGo — BD3558FEL-PRO — 60850National — 35028Promax — 16-3558Raybestos Brakes — 9328R52-6085063-79-530080-216488-22020788-22020523993289328DGS21080140517207352212306-C345045379530666043340589646095164243104020424313511042431351804243135200BD06870BD267BD1583BD1585BD60850BD60850EC10-1254CD9373D79530DB4147G9328JBD304JBD304EP60850SB9328TOD39TSR1744X21803YH6043YH140517
