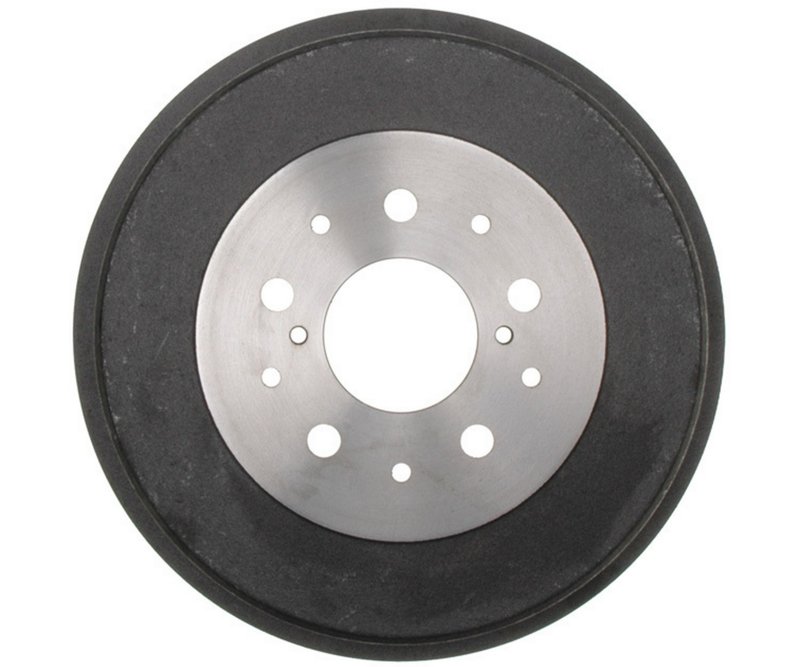

Raybestos 9481R Brake Drum - Rear
OE Quality 60-Day Returns
Raybestos
 R-Line

Raybestos 9481R Brake Drum - Rear

Brand Raybestos 9481R
Position Rear
Depth 2.510
Depth 63.750
Nominal Drum Diameter 0.397
Nominal Drum Diameter 10.100
Outer Cooling Fins No
Outside Diameter 0.474
Outside Diameter 12.050
Stud/Lug Hole Diameter 0.569
Stud/Lug Hole Diameter 14.450
Stud/Lug Hole Quantity 5
Product line R-Line
Fits Toyota · 25 vehicles

Brake drum replacement. Raybestos R-Line for dependable stopping performance.

Cooling fins omitted. Simple drum design keeps the focus on braking.

Five-lug pattern. Built with five stud holes for secure wheel mounting.

Cross-references Anchor 3596, Anchor 9481 and Anchor 9552 for the same application. See all 41.

$63.31Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Brake Drums are typically replaced in pairs, axle by axle.
Order total $63.31
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Brake Drum options

Raybestos R-Line Brake Drum 9481R

The Raybestos R-Line 9481R brake drum is built for rear brake service on select Toyota applications, including Toyota Tacoma and Toyota Pickup models. With a 12.050-inch outside diameter, 2.510-inch depth, and 10.100-inch nominal drum diameter, it is sized for direct-fit rear drum brake replacement where the original drum has worn, scored, or out-of-round surfaces.

Key Features

  • Raybestos R-Line brake drum, part number 9481R
  • 12.050-inch outside diameter and 2.510-inch depth
  • 10.100-inch nominal drum diameter
  • 5 lug holes with 14.450 mm stud/lug hole diameter
  • No outer cooling fins
  • Rear brake drum for Toyota Tacoma and Toyota Pickup applications

R-Line Product Line Details

Raybestos R-Line covers everyday brake service parts for drivers who need a straightforward replacement component. The 9481R follows that approach with application-specific sizing for rear drum brake systems, making it a practical choice for restoring proper drum-to-shoe contact on the listed Toyota vehicles.

Detailed Description

Compatible With 1995-2004 Toyota Tacoma, rear, and 1989-1994 Toyota Pickup, rear, w/ 1/2 Ton Chassis; with 10in x 1-31/32in Brakes; R-Line. The Raybestos 9481R brake drum is engineered around the listed dimensions and bolt pattern to match the rear brake setup used on these vehicles. This part cross-references DuraGo BD3596 for the same application. If you are servicing a Toyota Tacoma rear brake drum or replacing a worn Toyota Pickup rear drum, 9481R provides the correct dimensional profile for the specified fitment.

What It Helps Address

  • Rear brake pulsation caused by an out-of-round drum
  • Brake noise from a scored or uneven drum surface
  • Reduced shoe contact from drum wear
  • Brake fade related to excessive drum wear or heat damage
  • Service issues on Toyota Tacoma and Toyota Pickup rear drum brake systems

Installation Notes and Tips

Verify rear drum brake dimensions, lug count, and vehicle configuration before installation. This part is listed for 1995-2004 Toyota Tacoma rear applications and 1989-1994 Toyota Pickup rear applications with a 1/2 ton chassis and 10in x 1-31/32in brakes. Inspect brake shoes, wheel cylinders, and hardware condition during service, and confirm the drum seats evenly before road testing.

Quality Assurance

Raybestos is a recognized brake parts brand, and the R-Line line is positioned for standard replacement service. The 9481R is built to the listed dimensional specifications for the confirmed Toyota fitments.

Related reading

This part fits 25 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelDrive TypePositionNotes
2004ToyotaTacomaBaseRWDRearR-Line
2004ToyotaTacomaS-RunnerRWDRearR-Line
2003ToyotaTacomaBaseRWDRearR-Line
2003ToyotaTacomaDLXRWDRearR-Line
2003ToyotaTacomaS-RunnerRWDRearR-Line
2002ToyotaTacomaBaseRWDRearR-Line
2002ToyotaTacomaDLXRWDRearR-Line
2002ToyotaTacomaS-RunnerRWDRearR-Line
2001ToyotaTacomaBaseRWDRearR-Line
2001ToyotaTacomaDLXRWDRearR-Line
2001ToyotaTacomaS-RunnerRWDRearR-Line
2000ToyotaTacomaBaseRWDRearR-Line
2000ToyotaTacomaDLXRWDRearR-Line
2000ToyotaTacomaSR5RWDRearR-Line
1999ToyotaTacomaDLXRWDRearR-Line
1998ToyotaTacomaDLXRWDRearR-Line
1997ToyotaTacoma—RWDRearR-Line
1996ToyotaTacoma—RWDRearR-Line
1995ToyotaTacoma—RWDRearR-Line
1994ToyotaPickup—RWDRearw/ 1/2 Ton Chassis; with 10in x 1-31/32in Brakes; R-Line
1993ToyotaPickup—RWDRearw/ 1/2 Ton Chassis; with 10in x 1-31/32in Brakes; R-Line
1992ToyotaPickup—RWDRearw/ 1/2 Ton Chassis; with 10in x 1-31/32in Brakes; R-Line
1991ToyotaPickup—RWDRearw/ 1/2 Ton Chassis; with 10in x 1-31/32in Brakes; R-Line
1990ToyotaPickup—RWDRearw/ 1/2 Ton Chassis; with 10in x 1-31/32in Brakes; R-Line
1989ToyotaPickup—RWDRearw/ 1/2 Ton Chassis; with 10in x 1-31/32in Brakes; R-Line
Directly replaces or cross-references 41 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Anchor — 3596Anchor — 9481Anchor — 9552Anchor — 9702Centric Parts — 122.44017Centric Parts — 123.44017Dorman - HELP — 15904DuraGo — BD3596KYB — 345068Raybestos Brakes — 9481R63-79-520080-2270083-227088-22016788-220169481DGS21120125287140582207870212304-C3795203405888424310401042431351504243135151BD06971BD173BD125264BD125287C10-1261CD9408D9437D79520DB7052GR902SB9481TOD50X21813YH6051YH140582
