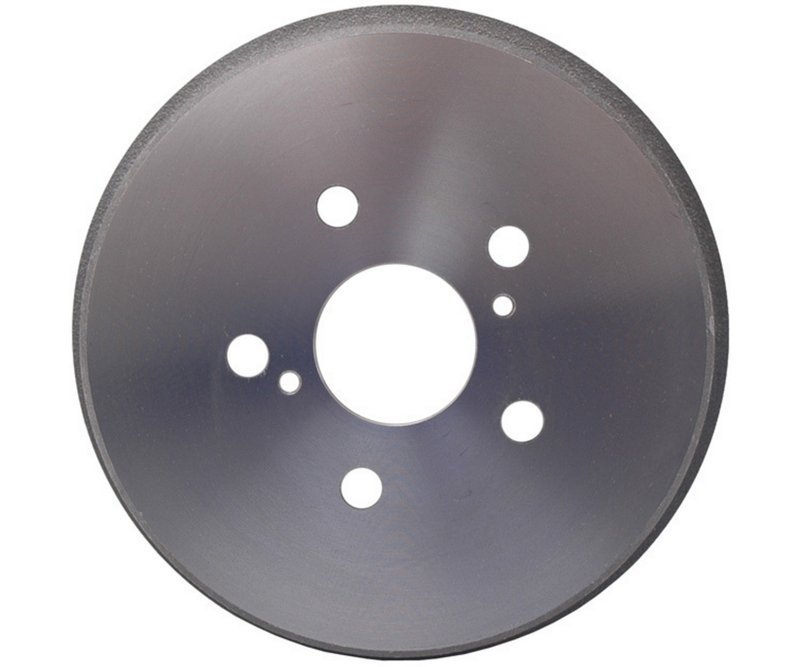

Raybestos 9486R Brake Drum - Rear
OE Quality 60-Day Returns
Raybestos
 R-Line

Raybestos 9486R Brake Drum - Rear

Brand Raybestos 9486R
Position Rear
Outside Diameter 0.365
Outside Diameter 9.250
Depth 2.150
Depth 54.600
Outer Cooling Fins No
Nominal Drum Diameter 0.311
Nominal Drum Diameter 7.900
Stud/Lug Hole Quantity 5
Stud/Lug Hole Diameter 0.575
Stud/Lug Hole Diameter 14.600
Product line R-Line
Fits Toyota · 4 vehicles

Direct replacement. Replacement brake drum for service on the listed application.

Five-lug design. Matches the specified stud-hole count and diameter for proper wheel mounting.

R-Line replacement. Raybestos service line focused on brake component replacement.

Cross-references Anchor 3530, Anchor 9486 and Anchor 9565 for the same application. See all 29.

$62.03Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Brake Drums are typically replaced in pairs, axle by axle.
Order total $62.03
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Brake Drum options

Brake Drum Overview

The Raybestos R-Line brake drum 9486R is a direct-fit replacement for select Toyota rear drum brake applications. It is built to match the specified drum dimensions and five-lug configuration for consistent fitment on the intended vehicle application.

  • Raybestos R-Line brake drum for replacement service
  • 9.250 in. outside diameter with 2.150 in. depth
  • 7.900 in. nominal drum diameter
  • Five stud/lug holes with 14.600 mm hole diameter
  • Rear brake drum application for select Toyota Celica models

Fitment Details

Fits 1990-1993 Toyota Celica, rear.

This part cross-references Anchor (e.g., 3530, 9486) for the same application.

Raybestos R-Line focuses on replacement brake components built for straightforward service use. The 9486R brake drum follows the listed dimensional and bolt-pattern specifications, making it a practical choice when replacing a worn rear drum on a Toyota Celica. Part number 9486R is also referenced in interchange listings for related brake drum applications.

Common Replacement Issues

  • Brake drum wear that affects braking surface condition
  • Out-of-round drum symptoms that can contribute to pulsation or noise
  • Incorrect drum dimensions from prior replacement parts
  • Five-lug rear drum fitment concerns on the specified application

Installation Notes

Verify drum diameter, depth, and stud-hole specifications before installation. Confirm rear brake application and compare the existing drum to the listed dimensions for proper fit. Professional installation is recommended for brake service.

Quality Assurance

Raybestos R-Line is positioned as a replacement brake line for service applications. Part number 9486R is supported by published fitment and dimensional data for the listed Toyota Celica models.

Related reading

This part fits 4 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelSubmodelPositionNotes
1993ToyotaCelicaSTRearR-Line
1992ToyotaCelicaSTRearR-Line
1991ToyotaCelicaGTRearR-Line
1990ToyotaCelicaGTRearR-Line
Directly replaces or cross-references 29 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Anchor — 3530Anchor — 9486Anchor — 9565Centric Parts — 123.44027NTK — 21069Raybestos Brakes — 9486RSKF — 1470414.5814.10080-2408083-240888-22025122.440279486DGS125023140568207000212307-C4243132020BD06877BD132BD1588BD3530BD125023D9409JBD362TOD54X21798YH6190YH140568
