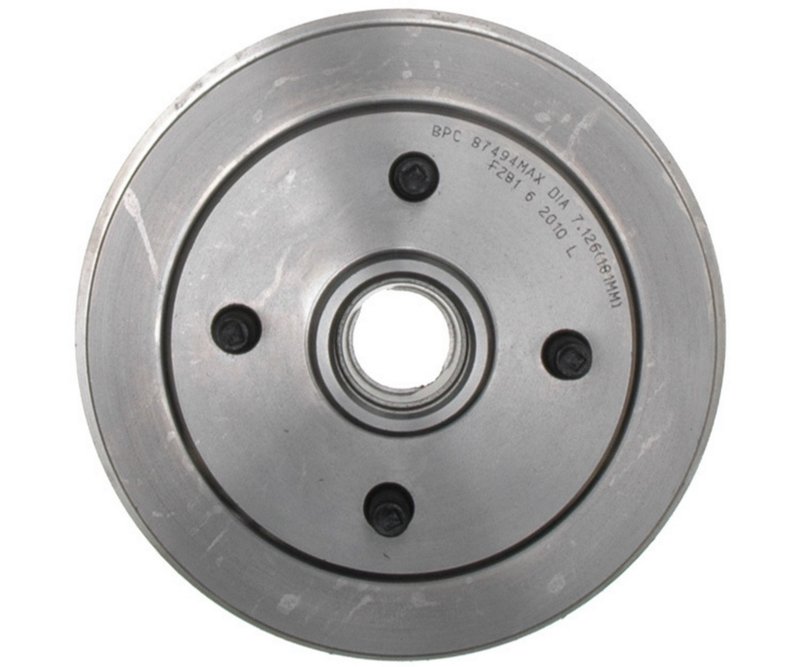

Raybestos 9494R Brake Drum - Rear
| Brand | Raybestos 9494R |
|---|---|
| Position | Rear |
| Depth | 1.400 |
| Depth | 35.550 |
| Nominal Drum Diameter | 0.281 |
| Nominal Drum Diameter | 7.150 |
| Outer Cooling Fins | No |
| Outside Diameter | 0.320 |
| Outside Diameter | 8.150 |
| Stud/Lug Hole Diameter | 0.542 |
| Stud/Lug Hole Diameter | 13.750 |
| Stud/Lug Hole Quantity | 4 |
| Product line | R-Line |
| Fits | Toyota · 3 vehicles |
Brake drum. R-Line replacement for dependable braking performance.
Cooling fins omitted. Simple drum design keeps the profile clean and straightforward.
4-lug pattern. Built with four stud holes for a secure wheel fit.
Cross-references Anchor 3576, Anchor 9494 and Beck/Arnley 083-2401 for the same application. See all 29.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Rear Brake Drum for Toyota Tercel and Paseo
Raybestos R-Line 9494R is a rear brake drum built for direct-fit service on select Toyota compact cars. It is listed for the 1992 Toyota Paseo rear and 1991-1992 Toyota Tercel rear, making it a focused replacement for common rear drum brake service needs.
Key Features
- Brake drum for rear axle applications
- Outside diameter: 8.150 in. / 0.320 in. listed in the provided data
- Depth: 1.400 in. / 35.550 mm
- Nominal drum diameter: 7.150 in. / 0.281 in. listed in the provided data
- 4 stud/lug holes with 13.750 mm lug hole diameter
- No outer cooling fins
- Raybestos R-Line part number 9494R
R-Line Product Line Details
Raybestos R-Line covers service replacement brake components for everyday repair work. For this application, 9494R is specified as a rear brake drum for Toyota Tercel and Toyota Paseo models, giving technicians a straightforward option when replacing worn or out-of-spec drum brake parts.
Detailed Description
Use Raybestos 9494R when servicing rear drum brake systems on the 1992 Toyota Paseo and 1991-1992 Toyota Tercel. The drum’s 4-lug pattern, 8.150-inch outside diameter, and 1.400-inch depth align with the listed application data, helping support proper brake shoe contact and drum-to-hub fitment during brake service. This part cross-references Beck/Arnley 083-2401 and Quality-Built 15604 for the same application.
What It Helps Address
- Rear brake pulsation caused by drum wear or scoring
- Reduced braking performance from an out-of-round drum
- Brake noise related to worn drum surfaces
- Uneven rear brake shoe contact
- Service replacement for a damaged or corroded rear drum
Installation Notes and Tips
Confirm rear drum brake measurements, lug pattern, and hub fitment before installation. Inspect brake shoes, wheel cylinders, hardware, and the backing plate for wear or contamination while the drum is removed. Clean the mating surfaces and verify the drum rotates freely after assembly. For best results, service both rear sides as needed and follow the vehicle manufacturer’s brake adjustment procedure.
Quality Assurance
Raybestos is a recognized brake parts brand, and the R-Line is positioned as a service replacement line for routine brake repairs. Verify all listed dimensions and vehicle fitment before ordering to ensure the correct rear brake drum for your Toyota application.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 1992 | Toyota | Paseo | Rear | R-Line |
| 1992 | Toyota | Tercel | Rear | R-Line |
| 1991 | Toyota | Tercel | Rear | R-Line |
