Part #: 9498R

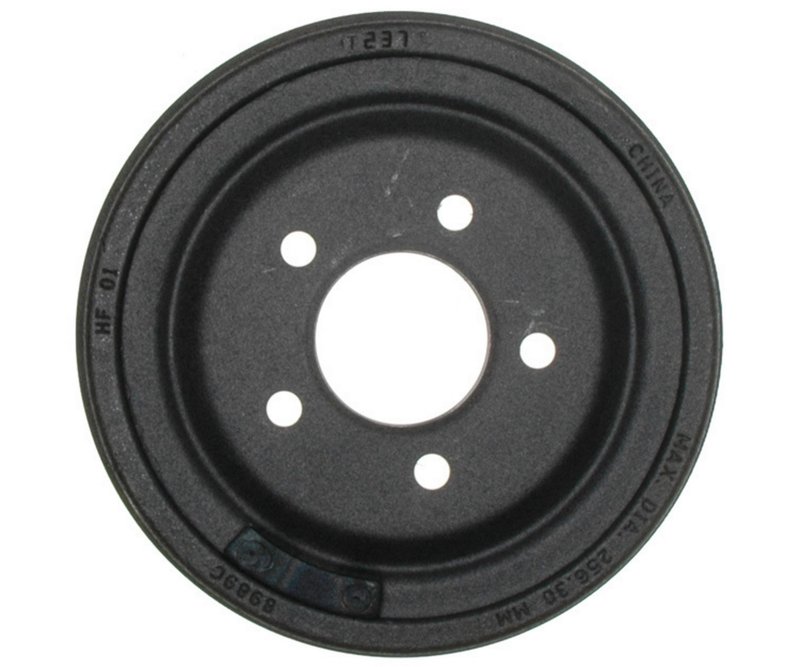

Raybestos 9498R Brake Drum - Rear

R-Line, Rear
⚙️ 58 vehicles fit this part
🔍
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
$68.71Free Shipping
🚚Free ShippingNo Cost to Continental U.S.
🔄Free Returns*Wrong fit? No cost
🛡️60-Day ReturnsMoney back guarantee
*Free return shipping only qualifies if our fitment verification tool is used.
Out of Stock
✅OE Direct Replacement — Bolt-on fit, no modifications needed
📦R-Line, Rear
🚗Fitment: Mazda and Ford, B2300, B4000, Ranger, B3000, B2500, Explorer, and Navajo
🔄Easy Returns — Return within 60 days for a full refund
🚚Fast Shipping — Most orders ship same business day before 1pm CST
Not what you need? Click here for all Brake Drum options

Overview of Raybestos R-Line 9498R Brake Drum

The Raybestos R-Line 9498R brake drum is engineered for reliable performance on select Ford and Mazda vehicles. Designed to meet precise specifications, this brake drum supports consistent braking and durability for models like the Ford Ranger and Mazda B2300.

  • Outside diameter: 11.700 inches (297.18 mm)
  • Depth: 2.960 inches (75.20 mm)
  • Nominal drum diameter: 10.100 inches (256.54 mm)
  • Five stud/lug holes with 0.566 inch (14.40 mm) diameter
  • No outer cooling fins for standard heat dissipation

Detailed Product Description

The Raybestos R-Line 9498R brake drum is manufactured to exacting dimensions, including an outside diameter of 11.700 inches and a depth of 2.960 inches, ensuring proper fit and function on compatible vehicles. The nominal drum diameter of 10.100 inches provides the braking surface necessary for effective stopping power. This brake drum features five stud/lug holes, each measuring 0.566 inches in diameter, matching the wheel bolt pattern of specific Ford and Mazda models. The absence of outer cooling fins indicates a design optimized for standard braking applications without additional heat dissipation features.

Compatible Vehicles and Applications

  • Ford Ranger (various years)
  • Ford Explorer
  • Ford B4000
  • Mazda B2300, B2500, B3000
  • Mazda Navajo

This brake drum is suitable for drivers seeking replacement parts that maintain factory specifications on these vehicles.

R-Line Product Line Information

The Raybestos R-Line is a product line focused on delivering dependable brake components that meet original equipment standards. The 9498R brake drum is part of this line, offering consistent quality and fitment for Ford and Mazda trucks and SUVs. R-Line products are designed to provide reliable braking performance without additional features such as cooling fins, aligning with standard brake system requirements.

Installation Notes and Tips

  • Ensure the brake drum matches the vehicle’s stud/lug pattern and diameter before installation.
  • Inspect brake shoes and hardware for wear and replace as necessary during installation.
  • Clean the hub surface to prevent runout and ensure proper drum seating.
  • Use proper torque specifications on lug nuts to avoid warping the drum.

Quality Assurance and Warranty

Raybestos R-Line brake drums are manufactured to meet or exceed OEM standards for fit, form, and function. While specific warranty details for part number 9498R should be confirmed with the supplier, Raybestos typically offers limited warranties covering defects in materials and workmanship to support product reliability.

BrandRaybestos
Part Number9498R
PositionR-Line, Rear
Depth2.960
Depth75.200
Nominal Drum Diameter0.397
Nominal Drum Diameter10.100
Outer Cooling FinsNo
Outside Diameter0.461
Outside Diameter11.700
Stud/Lug Hole Diameter0.566
Stud/Lug Hole Diameter14.400
Stud/Lug Hole Quantity5

This part fits 58 vehicles. Search below:
