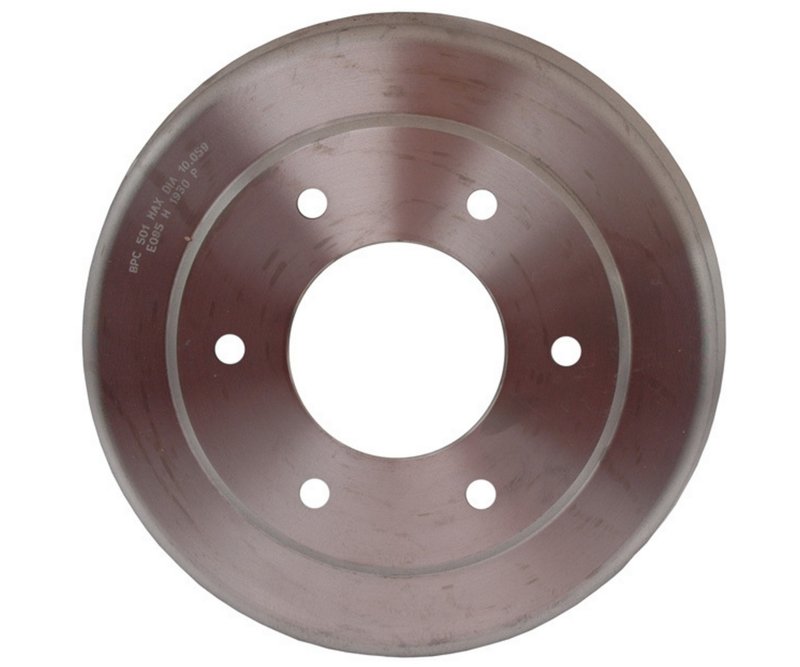

Raybestos 9501R Brake Drum - Rear

Overview of Raybestos R-Line 9501R Brake Drum

The Raybestos R-Line 9501R brake drum is engineered for reliable braking performance on Nissan 720 models. Designed with precise dimensions and quality materials, this brake drum ensures consistent fit and function for your vehicle's braking system.

• Outside diameter: 11.400 inches (290 mm)
• Depth: 2.170 inches (55.1 mm)
• Nominal drum diameter: 10.050 inches (255.3 mm)
• Stud/Lug hole quantity: 6
• Stud/Lug hole diameter: 0.488 inches (12.4 mm)
• No outer cooling fins for standard heat dissipation

Detailed Product Description

The Raybestos R-Line 9501R brake drum is specifically designed to meet the braking requirements of Nissan 720 trucks. With an outside diameter of 11.400 inches and a nominal drum diameter of 10.050 inches, this brake drum provides a precise fit for the vehicle’s rear braking system. The 2.170-inch depth allows for proper shoe contact and heat management during braking. Featuring six stud/lug holes with a diameter of 0.488 inches, it matches the factory specifications for secure mounting. This brake drum does not include outer cooling fins, which is typical for standard brake drum designs intended for everyday driving conditions.

Raybestos R-Line Product Line Information

The R-Line by Raybestos is a product line focused on delivering dependable brake components that align with original equipment specifications. The 9501R brake drum is part of this line, offering consistent quality and fitment for Nissan 720 vehicles. The R-Line emphasizes durability and precise manufacturing tolerances to support safe and effective braking performance.

Common Applications and Problem Solving

• Replacement for worn or scored brake drums on Nissan 720 models
• Addresses brake pulsation caused by uneven drum surfaces
• Resolves noise issues related to damaged or out-of-round drums
• Improves braking consistency and pedal feel
• Restores proper brake shoe contact and reduces vibration

Installation Notes and Tips

• Ensure compatibility with Nissan 720 before installation
• Inspect wheel studs and lug nuts for wear or damage
• Clean mounting surfaces to prevent misalignment
• Check brake shoes for wear and replace if necessary
• Torque lug nuts to manufacturer specifications for safety

Quality Assurance and Warranty

Raybestos R-Line brake drums are manufactured to meet strict quality standards, ensuring reliable performance and durability. The 9501R part number undergoes rigorous testing to comply with OEM fit and function requirements. Warranty coverage details should be confirmed with the product documentation or supplier.
