Raybestos 9540R Brake Drum - Rear
OE Quality 60-Day Returns
Raybestos
 R-Line

Raybestos 9540R Brake Drum - Rear

Brand Raybestos 9540R
Position Rear
Depth 2.810
Depth 71.350
Nominal Drum Diameter 0.390
Nominal Drum Diameter 9.900
Outer Cooling Fins Yes
Outside Diameter 0.504
Outside Diameter 12.800
Stud/Lug Hole Diameter 0.500
Stud/Lug Hole Diameter 12.700
Stud/Lug Hole Quantity 5
Product line R-Line
Fits Mercury and Nissan · 20 vehicles

Cooling fins. Help dissipate heat for more consistent braking performance.

Brake drum. Built for dependable drum brake service and stopping power.

Cross-references Anchor 9540, Beck/Arnley 083-2589 and Centric Parts 123.65033 for the same application. See all 41.

$82.74Free shipping
Out of stock
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Brake Drums are typically replaced in pairs, axle by axle.
Order total $82.74
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Brake Drum options

Raybestos R-Line Brake Drum 9540R

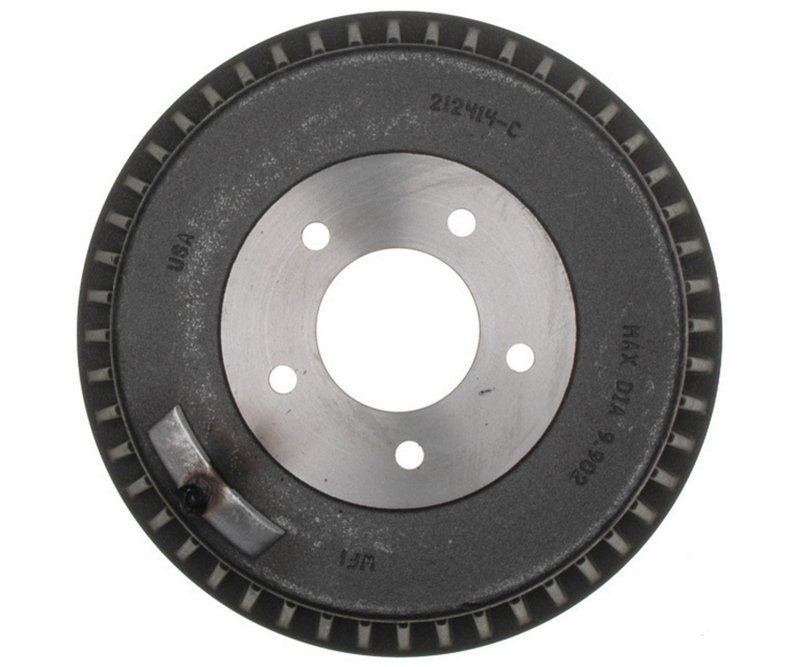

The Raybestos R-Line 9540R brake drum is built for rear brake service on select Mercury Villager and Nissan Quest applications. It features a 12.800-inch outside diameter, 2.810-inch depth, and 9.900-inch nominal drum diameter for the specified fitment.

Key Features

  • Raybestos R-Line brake drum, part number 9540R
  • 12.800-inch outside diameter and 2.810-inch depth
  • 9.900-inch nominal drum diameter
  • Outer cooling fins for heat management
  • 5 stud/lug holes with 12.700 mm hole diameter
  • Rear brake drum for listed vehicle applications

R-Line Product Line

Raybestos R-Line covers everyday brake service parts for drivers who need direct-fit replacement components. The 9540R follows that approach with application-specific dimensions and rear drum fitment for 1993-2002 Mercury Villager and 1993-2002 Nissan Quest models.

Detailed Description

Use the Raybestos 9540R when replacing a worn rear brake drum on compatible Mercury Villager or Nissan Quest vehicles. The drum’s 12.800-inch outside diameter, 2.810-inch depth, and 9.900-inch nominal drum diameter are the key dimensions that support proper brake shoe contact and drum fitment. Outer cooling fins are included in the design to help manage heat during braking.

This part cross-references Anchor 9540 for the same application.

Common Problems This Part Addresses

  • Rear brake pulsation from an out-of-round drum
  • Reduced braking performance from drum wear
  • Noise caused by scored or heat-affected drum surfaces
  • Improper shoe contact due to incorrect drum dimensions
  • Service issues on rear drum brake systems for Mercury Villager and Nissan Quest

Installation Notes and Tips

Verify rear brake drum dimensions and lug-hole pattern before installation. Inspect brake shoes, wheel cylinders, and hardware condition during service, and confirm the drum seats correctly on the hub before road testing. For best results, replace brake drums in pairs on the same axle when wear patterns indicate both sides are affected.

Quality Assurance

Raybestos is a recognized brake parts brand with application-specific replacement components for passenger vehicles. Confirm fitment by year, make, model, and rear position before ordering the 9540R.

Compatible Vehicles

  • Fits 1993-2002 Mercury Villager, Rear
  • Fits 1993-2002 Nissan Quest, Rear
