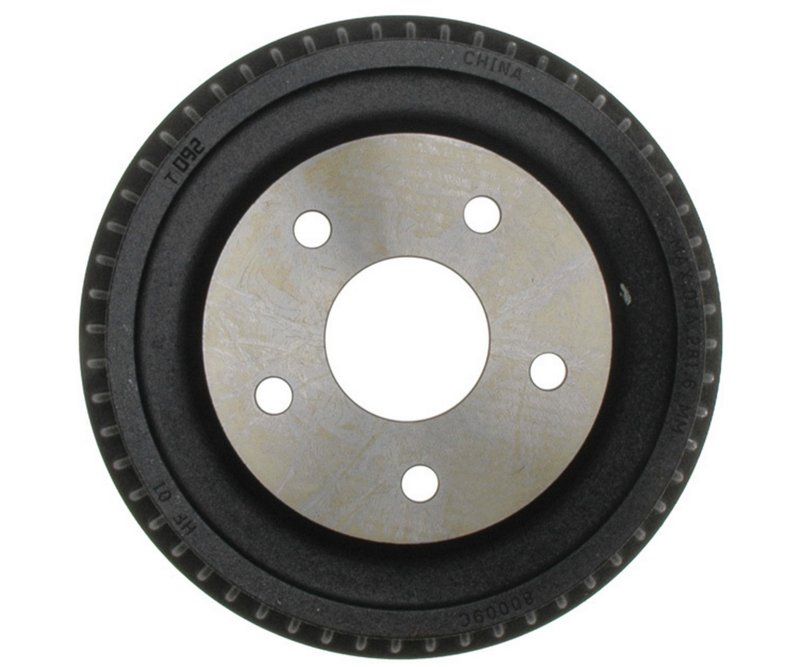

Raybestos 9563R Brake Drum - Rear

Overview of Raybestos R-Line 9563R Brake Drum

The Raybestos R-Line 9563R brake drum is engineered for reliable performance on Dodge Ram 1500 trucks. Designed to meet precise specifications, this brake drum ensures consistent braking and durability for your vehicle.

• Outside Diameter: 13.550 inches
• Depth: 2.540 inches
• Nominal Drum Diameter: 11.100 inches
• Includes Outer Cooling Fins for heat dissipation
• 5 Stud/Lug Holes with 0.672 inch diameter

Detailed Product Features and Specifications

This brake drum features an outside diameter of 13.550 inches and a depth of 2.540 inches, providing the correct fit and function for the Dodge Ram 1500. The nominal drum diameter measures 11.100 inches, ensuring compatibility with the vehicle's braking system. The inclusion of outer cooling fins helps dissipate heat during braking, reducing the risk of brake fade and extending the life of the drum. The 5 stud/lug holes, each with a diameter of 0.672 inches, align precisely with the Ram 1500’s wheel studs for secure installation.

About the Raybestos R-Line Product Line

The R-Line by Raybestos is a product line focused on delivering dependable brake components that meet or exceed OEM standards. This line is designed for drivers who require consistent braking performance and durability. The 9563R brake drum is part of this line, offering a balance of quality materials and engineering suitable for Dodge Ram 1500 trucks.

Common Applications and Problem Solving

• Replacement for worn or damaged brake drums on Dodge Ram 1500
• Addresses brake noise caused by uneven drum surfaces
• Helps restore proper braking performance and pedal feel
• Reduces brake fade through improved heat dissipation
• Corrects fitment issues related to incorrect drum dimensions

Installation Notes and Tips

When installing the Raybestos R-Line 9563R brake drum, ensure the vehicle is securely lifted and supported. Clean the hub surface before mounting the drum to prevent misalignment. Verify that the 5 lug holes align properly with the wheel studs on the Dodge Ram 1500. It is recommended to inspect brake shoes and hardware during installation for optimal performance.

Quality Assurance and Warranty

Raybestos manufactures the 9563R brake drum to meet strict quality standards, ensuring reliable performance and durability. While specific warranty details may vary, Raybestos products typically come with a limited warranty against defects in materials and workmanship. Consult product documentation for exact warranty terms.
