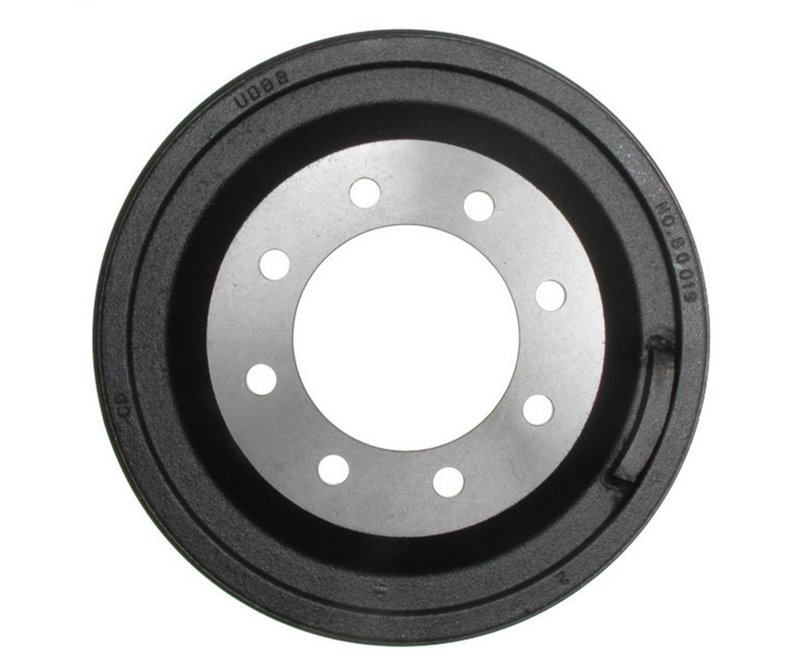

Raybestos 9568R Brake Drum - Rear
| Brand | Raybestos 9568R |
|---|---|
| Position | Rear |
| Outside Diameter | 0.612 |
| Outside Diameter | 15.550 |
| Depth | 3.190 |
| Depth | 81.050 |
| Outer Cooling Fins | Yes |
| Nominal Drum Diameter | 0.515 |
| Nominal Drum Diameter | 13.100 |
| Stud/Lug Hole Quantity | 8 |
| Stud/Lug Hole Diameter | 0.652 |
| Stud/Lug Hole Diameter | 16.550 |
| Product line | R-Line |
| Fits | Dodge · 7 vehicles |
Cooling fins. Help dissipate heat for more consistent braking performance.
Brake drum. A direct replacement drum for dependable stopping power.
Cross-references Anchor 9568, Centric Parts 122.67027 and Centric Parts 123.67027 for the same application. See all 41.
Raybestos R-Line Brake Drum for Ram 2500
The Raybestos R-Line 9568R brake drum is built for rear brake service on select Dodge Ram 2500 applications. It combines a 15.550-inch outside diameter, 13.100-inch nominal drum diameter, and 3.190-inch depth to match the specified fitment and braking geometry.
Compatible With 1994-2000 Dodge Ram 2500 rear brake applications, this brake drum also features outer cooling fins and an 8-lug hole pattern with 16.550 mm stud/lug hole diameter for proper wheel and hub alignment. The Raybestos 9568R is a direct-fit replacement for drivers servicing rear drum brakes on Ram 2500 trucks.
Key Features
- Raybestos R-Line brake drum, part number 9568R
- 15.550-inch outside diameter and 13.100-inch nominal drum diameter
- 3.190-inch depth for the specified rear brake setup
- Outer cooling fins for improved heat dissipation
- 8 stud/lug holes with 16.550 mm hole diameter
- Compatible With 1994-2000 Dodge Ram 2500 rear brake applications
Product Details
The Raybestos R-Line is a service-focused product line for everyday brake repairs, offering application-specific replacement parts for common maintenance needs. The 9568R brake drum is engineered around the listed dimensions and rear-position fitment for 1994-2000 Dodge Ram 2500 trucks, helping maintain proper drum-to-shoe contact and consistent brake operation. This part cross-references DuraGo BD80019 for the same application.
Common Brake Drum Issues This Part Addresses
- Rear brake pulsation caused by worn or out-of-round drum surfaces
- Reduced braking consistency from heat-related drum wear
- Noise during rear brake application
- Uneven shoe contact from a damaged or dimensionally incorrect drum
- Service replacement for rear drum brake wear on Dodge Ram 2500 trucks
Installation Notes and Tips
Verify drum diameter, depth, lug-hole pattern, and rear-position fitment before installation. Inspect brake shoes, wheel cylinders, and related rear brake components for wear or contamination while the drum is removed. Clean the friction surface and confirm the drum seats correctly on the hub before road testing.
Quality Assurance
Raybestos manufactures the R-Line 9568R as a replacement brake drum for specified rear brake applications. Confirm vehicle fitment against the listed dimensions and application details before installation.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2000 | Dodge | Ram 2500 | Rear | R-Line |
| 1999 | Dodge | Ram 2500 | Rear | R-Line |
| 1998 | Dodge | Ram 2500 | Rear | R-Line |
| 1997 | Dodge | Ram 2500 | Rear | R-Line |
| 1996 | Dodge | Ram 2500 | Rear | R-Line |
| 1995 | Dodge | Ram 2500 | Rear | R-Line |
| 1994 | Dodge | Ram 2500 | Rear | R-Line |
