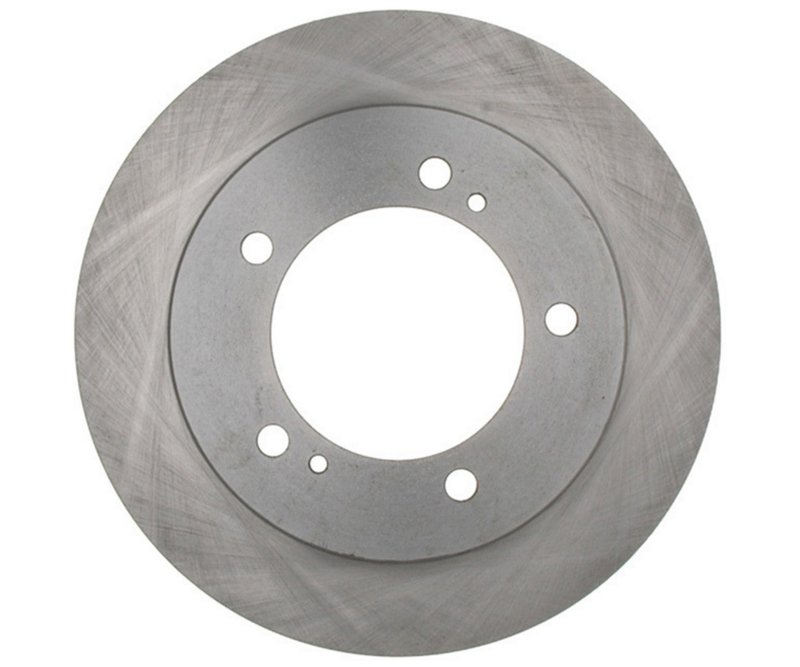

Raybestos 96008R Disc Brake Rotor - Front
| Brand | Raybestos 96008R |
|---|---|
| Position | Front |
| Center Hole Diameter | 4.214 |
| Center Hole Diameter | 107.050 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.315 |
| Discard Thickness | 8.000 |
| Mounting Bolt Hole Circle Diameter | 5.500 |
| Mounting Bolt Hole Circle Diameter | 139.700 |
| Mounting Bolt Hole Diameter | 0.500 |
| Mounting Bolt Hole Diameter | 12.700 |
| Mounting Bolt Hole Quantity | 5 |
| Nominal Thickness | 0.394 |
| Nominal Thickness | 10.000 |
| Outside Diameter | 11.415 |
| Outside Diameter | 289.950 |
| Overall Height | 1.820 |
| Overall Height | 46.250 |
| Solid Or Vented Type Rotor | Vented |
| Stud/Lug Hole Quantity | 5 |
| Product line | R-Line |
| Fits | Chevrolet, Suzuki, Geo, and GMC · 43 vehicles |
Vented design. Helps promote airflow for more consistent braking performance.
Conventional rotor. A straightforward disc brake replacement for common applications.
R-Line series. Raybestos line focused on dependable everyday braking.
Cross-references Anchor 3222, Anchor 9422 and AP Exhaust 2588 for the same application. See all 69.
Raybestos R-Line Front Brake Rotor
The Raybestos R-Line 96008R is a front vented disc brake rotor for select Chevrolet Tracker, Geo Tracker, GMC Tracker, Suzuki Sidekick, Suzuki Samurai, and Suzuki X-90 applications. It is built to match the listed OE-style dimensions for proper rotor fitment, braking surface contact, and wheel mounting alignment.
For shoppers searching for a front brake rotor for 1989-1998 Suzuki Sidekick, 1989-1997 Geo Tracker, or 1985-1995 Suzuki Samurai, this rotor provides the specified size and hub interface needed for direct replacement service. The 96008R part number is also used in cross-reference listings for the same application.
R-Line Product Line Details
Raybestos R-Line covers everyday replacement brake components with application-specific fitment and dimensional accuracy. For this rotor, the line focuses on the core measurements that matter most: outside diameter, nominal thickness, discard thickness, center hole diameter, bolt circle, and vented construction.
Key Features
- Part number: 96008R
- Raybestos R-Line front disc brake rotor
- Vented rotor construction for front axle use
- Outside diameter: 11.415 in. / 289.950 mm
- Nominal thickness: 0.394 in. / 10.000 mm
- Discard thickness: 0.315 in. / 8.000 mm
- Overall height: 1.820 in. / 46.250 mm
- Center hole diameter: 4.214 in. / 107.050 mm
- 5-lug / 5-bolt mounting pattern
- Bolt circle diameter: 5.500 in. / 139.700 mm
- Conventional rotor design
Detailed Description
Raybestos 96008R is a vented front brake rotor engineered around the listed OE dimensions for vehicles that use a 5-lug, 5.5-inch bolt circle setup. It measures 11.415 inches in outside diameter with a 4.214-inch center hole and 1.820-inch overall height, helping ensure correct rotor placement on the hub and proper caliper clearance. The nominal thickness is 0.394 inch, with a discard thickness of 0.315 inch, giving technicians the key measurements needed during brake service and rotor inspection.
Fits 1989-1998 Suzuki Sidekick, front. Fits 1989-1997 Geo Tracker, front. Fits 1989-1991 Chevrolet Tracker, front. Fits 1990-1991 GMC Tracker, front. Fits 1998 Chevrolet Tracker, front. Fits 1996-1998 Suzuki X-90, front. Fits 1985-1995 Suzuki Samurai, front. This part cross-references Bosch 25010726 and Brembo 08.5266.10 for the same application.
Common Uses
- Replacing a worn front brake rotor on a Suzuki Sidekick
- Correcting brake pulsation caused by rotor thickness variation
- Restoring braking surface condition on a Geo Tracker or Chevrolet Tracker
- Addressing rotor wear that has reached discard thickness
- Servicing front brake systems on Suzuki Samurai and Suzuki X-90 models
Installation Notes and Tips
Verify rotor dimensions, bolt pattern, and hub fitment before installation. Inspect pads, caliper hardware, and wheel bearings during brake service, and measure rotor thickness after installation to confirm it remains above discard thickness. Clean the hub mounting surface thoroughly so the rotor seats flat and runs true.
Quality Assurance
Raybestos R-Line brake components are built to application-specific dimensions for replacement service. Confirm fitment by year, make, model, and front position before ordering the 96008R rotor.
| Year | Make | Model | Submodel | Body Type | # Doors | Position | Notes |
|---|---|---|---|---|---|---|---|
| 1998 | Chevrolet | Tracker | — | Sport Utility | 2 Door | Front | R-Line |
| 1998 | Suzuki | Sidekick | JS | Sport Utility | 2 Door | Front | R-Line |
| 1998 | Suzuki | Sidekick | JX | Sport Utility | 2 Door | Front | R-Line |
| 1998 | Suzuki | X-90 | — | — | — | Front | R-Line |
| 1997 | Geo | Tracker | — | Sport Utility | 2 Door | Front | R-Line |
| 1997 | Suzuki | Sidekick | JS | Sport Utility | 2 Door | Front | R-Line |
| 1997 | Suzuki | Sidekick | JX | Sport Utility | 2 Door | Front | R-Line |
| 1997 | Suzuki | X-90 | — | — | — | Front | R-Line |
| 1996 | Geo | Tracker | — | Sport Utility | 2 Door | Front | R-Line |
| 1996 | Suzuki | Sidekick | JS | Sport Utility | 2 Door | Front | R-Line |
| 1996 | Suzuki | Sidekick | JX | Sport Utility | 2 Door | Front | R-Line |
| 1996 | Suzuki | X-90 | — | — | — | Front | R-Line |
| 1995 | Geo | Tracker | — | — | — | Front | R-Line |
| 1995 | Suzuki | Samurai | — | — | — | Front | Replaces 1096008; Raybestos R-Line |
| 1995 | Suzuki | Sidekick | — | Sport Utility | 2 Door | Front | R-Line |
| 1994 | Geo | Tracker | — | — | — | Front | R-Line |
| 1994 | Suzuki | Samurai | — | — | — | Front | Replaces 1096008; Raybestos R-Line |
| 1994 | Suzuki | Sidekick | — | Sport Utility | 2 Door | Front | R-Line |
| 1993 | Geo | Tracker | — | — | — | Front | R-Line |
| 1993 | Suzuki | Samurai | — | — | — | Front | Replaces 1096008; Raybestos R-Line |
| 1993 | Suzuki | Sidekick | — | Sport Utility | 2 Door | Front | R-Line |
| 1992 | Geo | Tracker | — | — | — | Front | R-Line |
| 1992 | Suzuki | Samurai | — | — | — | Front | Replaces 1096008; Raybestos R-Line |
| 1992 | Suzuki | Sidekick | — | Sport Utility | 2 Door | Front | R-Line |
| 1991 | Chevrolet | Tracker | — | — | — | Front | R-Line |
| 1991 | Geo | Tracker | — | — | — | Front | R-Line |
| 1991 | GMC | Tracker | — | — | — | Front | R-Line |
| 1991 | Suzuki | Samurai | — | — | — | Front | Replaces 1096008; Raybestos R-Line |
| 1991 | Suzuki | Sidekick | — | Sport Utility | 2 Door | Front | R-Line |
| 1990 | Chevrolet | Tracker | — | — | — | Front | R-Line |
| 1990 | Geo | Tracker | — | — | — | Front | R-Line |
| 1990 | GMC | Tracker | — | — | — | Front | R-Line |
| 1990 | Suzuki | Samurai | — | — | — | Front | Replaces 1096008; Raybestos R-Line |
| 1990 | Suzuki | Sidekick | — | Sport Utility | 2 Door | Front | R-Line |
| 1989 | Chevrolet | Tracker | — | — | — | Front | R-Line |
| 1989 | Geo | Tracker | — | — | — | Front | R-Line |
| 1989 | GMC | Tracker | — | — | — | Front | Replaces 1096008; Raybestos R-Line |
| 1989 | Suzuki | Samurai | — | — | — | Front | Replaces 1096008; Raybestos R-Line |
| 1989 | Suzuki | Sidekick | — | Sport Utility | 2 Door | Front | R-Line |
| 1988 | Suzuki | Samurai | — | — | — | Front | Replaces 1096008; Raybestos R-Line |
| 1987 | Suzuki | Samurai | — | — | — | Front | Replaces 1096008; Raybestos R-Line |
| 1986 | Suzuki | Samurai | — | — | — | Front | Replaces 1096008; Raybestos R-Line |
| 1985 | Suzuki | Samurai | — | — | — | Front | Replaces 1096008; Raybestos R-Line |
