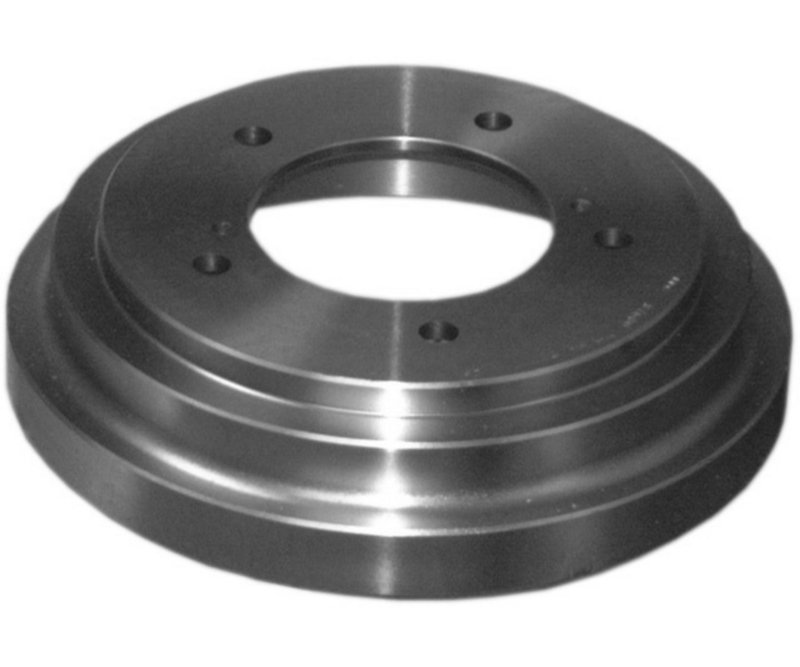

Raybestos 9600R Brake Drum - Rear

Overview of Raybestos R-Line 9600R Brake Drum

The Raybestos R-Line 9600R brake drum is engineered for reliable braking performance on select Chevrolet, Geo, Pontiac, and Suzuki vehicles. Designed specifically for models like the Sidekick, Sunrunner, Tracker, and X-90, this brake drum offers precise fitment and consistent durability.

• Outside Diameter: 10.300 inches
• Depth: 1.580 inches
• Nominal Drum Diameter: 8.750 inches
• Stud/Lug Hole Quantity: 5
• No outer cooling fins for standard heat dissipation

Raybestos R-Line Product Line Details

The R-Line by Raybestos focuses on delivering dependable brake components that meet original equipment specifications. This product line emphasizes quality materials and manufacturing processes to ensure consistent performance and fit. The 9600R brake drum is part of this line, providing a balance of durability and precision for compatible vehicles.

Detailed Product Description

The 9600R brake drum features an outside diameter of 10.300 inches and a depth of 1.580 inches, dimensions that align with the braking system requirements of Chevrolet Sidekick, Geo Sunrunner, Pontiac Sunrunner, and Suzuki Tracker and X-90 models. With a nominal drum diameter of 8.750 inches and a 5-lug stud hole configuration, this brake drum is designed to match factory specifications for proper installation and operation. The absence of outer cooling fins indicates a standard design suitable for typical driving conditions without specialized cooling needs.

Common Applications and Problem Solving

• Replacement for worn or scored brake drums on Chevrolet Sidekick and Geo Sunrunner
• Restores proper braking surface for Pontiac Sunrunner models
• Addresses brake noise and vibration issues caused by damaged drums on Suzuki Tracker and X-90
• Helps maintain braking efficiency and safety on vehicles with 5-lug wheel configurations
• Supports consistent brake shoe contact and wear patterns

Installation Notes and Tips

• Verify compatibility with vehicle make and model before installation
• Inspect wheel studs and lug nuts for wear or damage during replacement
• Ensure brake shoes are properly adjusted to the 8.750-inch nominal drum diameter
• Clean mounting surfaces to prevent uneven drum seating
• Torque lug nuts to manufacturer specifications to avoid warping

Quality Assurance and Warranty

Raybestos R-Line brake drums are manufactured to meet or exceed OEM standards, ensuring reliable performance and fitment. The 9600R part number undergoes rigorous quality control to maintain consistency. Warranty coverage details should be confirmed through Raybestos or authorized distributors.
