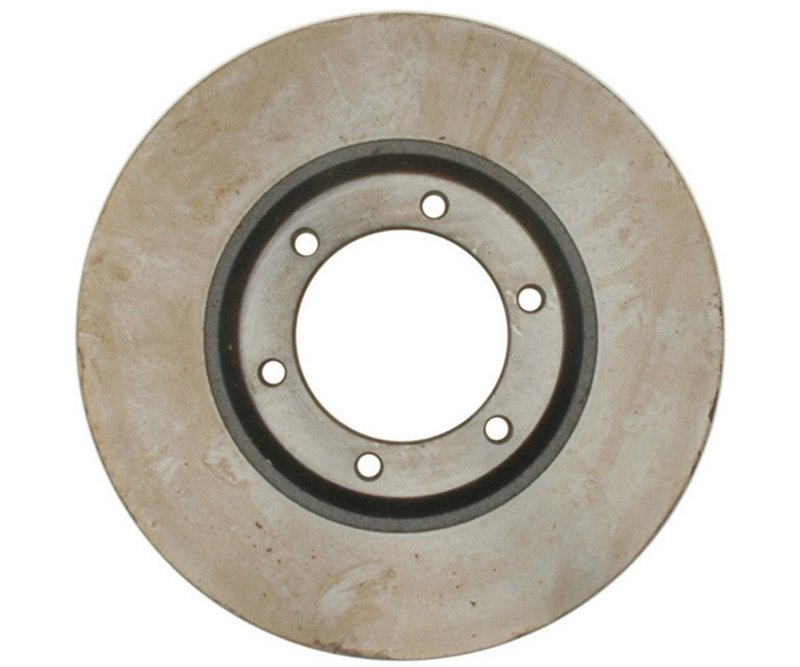

Raybestos 96034R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 96034R

The Raybestos R-Line Disc Brake Rotor 96034R is engineered for reliable braking performance on Isuzu Pickup and Trooper models. Designed as a vented, conventional rotor, it offers effective heat dissipation and consistent stopping power for these vehicles.

• Compatible with Isuzu Pickup and Trooper
• Vented disc brake rotor design for improved cooling
• Overall height: 1.310 inches (33.250 mm)
• Outside diameter: 9.890 inches (251.200 mm)
• Mounting bolt hole quantity: 6 with 4.016 inch (102.000 mm) bolt circle diameter
• Center hole diameter: 3.152 inches (80.050 mm)
• Nominal thickness: 0.710 inches (18.050 mm)
• Discard thickness: 0.654 inches (16.600 mm)
• Stud/lug hole quantity: 6

Detailed Product Description

The Raybestos R-Line 96034R disc brake rotor is a vented, conventional rotor designed specifically for Isuzu Pickup and Trooper vehicles. Its vented construction enhances heat dissipation during braking, reducing the risk of brake fade under demanding conditions. The rotor features a nominal thickness of 0.710 inches (18.050 mm) and a discard thickness of 0.654 inches (16.600 mm), ensuring a clear service life indicator for safe replacement. With an outside diameter of 9.890 inches (251.200 mm) and an overall height of 1.310 inches (33.250 mm), this rotor matches factory specifications for proper fit and function. The 6 mounting bolt holes with a 4.016 inch (102.000 mm) bolt circle diameter and 6 stud/lug holes provide secure installation on compatible Isuzu models.

About the Raybestos R-Line Product Line

The R-Line by Raybestos is a product line focused on delivering reliable, OEM-quality brake components for a range of vehicles. This line emphasizes precise fitment and consistent performance, making it suitable for drivers seeking dependable replacement parts. The 96034R rotor exemplifies the R-Line’s commitment to quality and durability, tailored for Isuzu Pickup and Trooper applications.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors on Isuzu Pickup and Trooper
• Improves braking performance by restoring proper rotor thickness and surface
• Reduces brake noise and vibration caused by uneven rotor wear
• Helps prevent brake fade through vented rotor design
• Ensures safe stopping distances by maintaining factory specifications

Installation Notes and Tips

• Verify rotor thickness before installation to ensure it meets minimum discard thickness
• Clean mounting surfaces to prevent rotor runout and vibration
• Torque mounting bolts to manufacturer specifications for secure fitment
• Inspect brake pads and replace if worn to optimize rotor performance
• Perform a bed-in procedure after installation to ensure proper rotor and pad mating

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet or exceed OEM standards for fit, form, and function. Each rotor undergoes rigorous quality control to ensure durability and consistent braking performance. Warranty coverage details should be confirmed with the product documentation or supplier, as they may vary by region and application.
