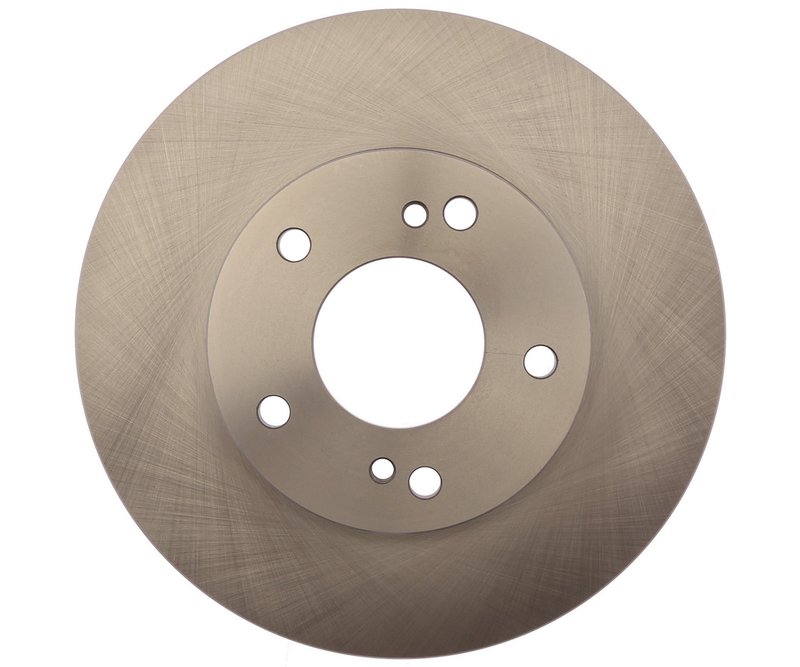

Raybestos 96065R Disc Brake Rotor - Front
OE Quality 60-Day Returns
Raybestos
R-Line

Raybestos 96065R Disc Brake Rotor - Front

Brand Raybestos 96065R
Position Front
Center Hole Diameter 2.678
Center Hole Diameter 68.000
Conventional Or Drum-In-Hat Type Rotor Conventional
Discard Thickness 0.787
Discard Thickness 20.000
Mounting Bolt Hole Circle Diameter 4.500
Mounting Bolt Hole Circle Diameter 114.300
Mounting Bolt Hole Diameter 4.500
Mounting Bolt Hole Diameter 114.300
Mounting Bolt Hole Quantity 5
Nominal Thickness 0.865
Nominal Thickness 21.950
Outside Diameter 11.015
Outside Diameter 279.800
Overall Height 1.935
Overall Height 49.150
Solid Or Vented Type Rotor Vented
Stud/Lug Hole Quantity 5
Product line R-Line
Fits INFINITI and Nissan · 15 vehicles

Vented design. Helps promote airflow for more consistent braking performance.

Conventional rotor. A straightforward disc brake replacement for common applications.

R-Line series. Raybestos line focused on dependable everyday braking parts.

Cross-references Anchor 3218, Anchor 9433 and Beck/Arnley 083-2297 for the same application. See all 87.

$49.79Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $49.79
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Raybestos R-Line Front Brake Rotor

The Raybestos R-Line 96065R is a vented front disc brake rotor built for direct replacement on select Nissan and INFINITI applications. It matches the original-style conventional rotor layout and supports consistent braking performance for 1989-1999 Nissan Maxima and 1996-1999 INFINITI I30 front brake service.

Key Features

  • Part number: 96065R
  • Raybestos R-Line replacement rotor for front axle applications
  • Vented, conventional rotor design
  • Outside diameter: 11.015 in. / 279.800 mm
  • Nominal thickness: 0.865 in. / 21.950 mm
  • Discard thickness: 0.787 in. / 20.000 mm
  • Overall height: 1.935 in. / 49.150 mm
  • 5-lug pattern with 5 mounting bolt holes
  • Center hole diameter: 2.678 in. / 68.000 mm
  • Bolt circle diameter: 4.500 in. / 114.300 mm

Detailed Description

Raybestos R-Line 96065R is a front brake rotor engineered for vehicles that use a vented, conventional rotor design. Its dimensions, including the 11.015-inch outside diameter, 0.865-inch nominal thickness, and 1.935-inch overall height, are specified for proper fitment on the front brake assembly. This rotor is a direct replacement choice for 1990-1999 Nissan Maxima front brake service and 1996-1999 INFINITI I30 front brake service, with 1989 Nissan Maxima front vented rotor coverage also listed. The Raybestos R-Line 96065R is a practical option when replacing a worn front rotor on a Nissan Maxima or INFINITI I30 and when maintaining OE-style brake geometry matters.

The R-Line product line focuses on replacement brake components for everyday service needs, giving technicians and do-it-yourself installers a straightforward option for front rotor replacement. This part cross-references Bosch 40011034 and Brembo 09.5254.10 for the same application.

What This Rotor Helps Address

  • Front brake pulsation caused by rotor wear or thickness variation
  • Brake noise related to uneven rotor surfaces
  • Reduced braking consistency from a worn front disc rotor
  • Service replacement for a damaged or below-spec rotor
  • Restoring proper front brake contact on Nissan Maxima and INFINITI I30 applications

Installation Notes and Tips

Verify rotor dimensions, bolt pattern, and hub center diameter before installation. Clean the hub mounting surface thoroughly so the rotor seats flat, and inspect pads, calipers, and hardware condition during brake service. For best results, follow the vehicle manufacturer’s torque specifications and bedding procedure after installation. Fits 1989 Nissan Maxima, front; Fits 1990-1999 Nissan Maxima, front; Fits 1996-1999 INFINITI I30, front.

Quality Assurance

Raybestos manufactures brake components for replacement service applications, and the R-Line 96065R is built to match the listed fitment and dimensional requirements for the vehicles shown above.

Related reading

This part fits 15 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
1999INFINITII30FrontR-Line
1999NissanMaximaFrontR-Line
1998INFINITII30FrontR-Line
1998NissanMaximaFrontR-Line
1997INFINITII30FrontR-Line
1997NissanMaximaFrontR-Line
1996INFINITII30FrontR-Line
1996NissanMaximaFrontR-Line
1995NissanMaximaFrontR-Line
1994NissanMaximaFrontR-Line
1993NissanMaximaFrontR-Line
1992NissanMaximaFrontR-Line
1991NissanMaximaFrontR-Line
1990NissanMaximaFrontR-Line
1989NissanMaximaFrontVented Rotor; R-Line
Directly replaces or cross-references 87 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Anchor — 3218Anchor — 9433Beck/Arnley — 083-2297Bosch — 40011034Brembo — 09.5254.10Centric Parts — 120.42043Centric Parts — 121.42043Centric Parts — 125.42043Centric Parts — 320.42043CSF — 3956DuraGo — BR3218Four Seasons — 78381National — 6781OSC — 2574PowerStop — JBR918EVCPromax — 14-3218Raybestos Brakes — 96064FZNRaybestos Brakes — 96065Raybestos Brakes — 96065RStopTech — 126.42043SLStopTech — 126.42043SRStopTech — 127.42043LWix — 3300214-3112252-6195664-76-590080-229781-61956083-261089-04043125.42043CRY126.42043CSL126.42043CSR127.42043R128.42043L128.42043R321.42043789-040431407-253143218B3218DG253146195696065RGS109180109801141441325086402062L903442110476590160056634056804020688E014020688E034020688E044020688E054618576809606540206880402068800040206880000A03218BD61956BD61956EBDC3813BR04104BR1614BR2030CW22712D7987DF2574SDL3218GR837JBR505JBR505EJBR505EVCNS361VP61956PS61956R76590RB377RBR3218X50473YH2110YH141441YH141441C
