OE Quality
60-Day Returns

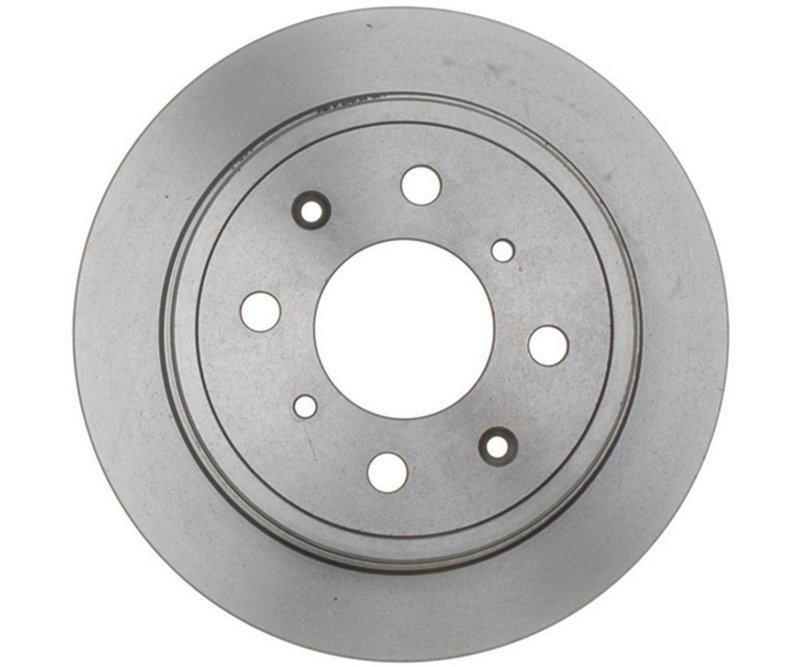

Raybestos 96068R Disc Brake Rotor - Rear
Reliable Disc Brake Rotor for Acura and Honda Vehicles
The Raybestos R-Line 96068R disc brake rotor is engineered to meet the braking needs of select Acura and Honda models. Designed as a solid rotor with precise dimensions, it ensures consistent performance and durability for vehicles like the Honda Accord, Civic, and Acura Integra.
- Compatible with Acura and Honda models including Accord, Civic, Civic del Sol, CRX, Integra, and Prelude
- Solid disc brake rotor design for reliable braking
- Outside diameter of 9.4 inches (238.75 mm) for proper fitment
- Nominal thickness of 0.394 inches (10.000 mm) with discard thickness at 0.315 inches (8.000 mm)
- Four mounting bolt holes with a 3.937 inch (100 mm) bolt circle diameter
- Center hole diameter of 2.404 inches (61.05 mm) for accurate hub alignment
- Overall height of 1.895 inches (48.15 mm) ensuring correct rotor positioning
Raybestos R-Line Product Line Overview
The R-Line by Raybestos offers a range of brake components designed for dependable performance and fitment. This product line focuses on delivering rotors that meet OEM specifications, providing a balance of quality and value. The 96068R rotor exemplifies the R-Line’s commitment to precise engineering and consistent braking performance for Acura and Honda vehicles.
Technical Details and Specifications
This conventional solid disc brake rotor features a nominal thickness of 0.394 inches (10.000 mm) and a discard thickness of 0.315 inches (8.000 mm), indicating when replacement is necessary to maintain safe braking. The rotor’s outside diameter measures 9.4 inches (238.75 mm), matching the original equipment dimensions for proper fitment. It includes four mounting bolt holes arranged on a 3.937 inch (100 mm) bolt circle diameter, compatible with the specified Acura and Honda models. The center hole diameter of 2.404 inches (61.05 mm) ensures precise hub centering, while the overall height of 1.895 inches (48.15 mm) maintains correct rotor positioning relative to the caliper and wheel assembly.
Applications and Problem Solving
- Replacement for worn or warped rotors causing brake pulsation or noise
- Restores proper braking performance on Acura Accord and Honda Civic models
- Addresses rotor thickness below discard limits to maintain safety
- Eliminates uneven brake pad wear due to rotor surface irregularities
- Suitable for vehicles experiencing reduced braking efficiency or vibration
Installation Notes and Tips
- Ensure rotor thickness is measured before installation to confirm discard limits
- Clean rotor surface and hub mounting area to prevent runout and vibration
- Torque mounting bolts to manufacturer specifications for secure fitment
- Inspect brake pads and replace if worn to optimize braking system performance
- Perform a bed-in procedure after installation to ensure proper rotor and pad contact
Quality Assurance and Warranty
Raybestos R-Line rotors are manufactured to meet or exceed OEM standards, providing reliable braking performance. While specific warranty details for part number 96068R are not provided here, Raybestos products typically come with a limited warranty against defects in material and workmanship. Users should consult product documentation or the manufacturer for exact warranty terms.
| Brand | Raybestos |
|---|---|
| Part Number | 96068R |
| Position | R-Line, Rear |
| Center Hole Diameter | 2.404 |
| Center Hole Diameter | 61.050 |
| Conventional Or Drum-In-Hat Type Rotor | Conventional |
| Discard Thickness | 0.315 |
| Discard Thickness | 8.000 |
| Mounting Bolt Hole Circle Diameter | 3.937 |
| Mounting Bolt Hole Circle Diameter | 100.000 |
| Mounting Bolt Hole Diameter | 3.937 |
| Mounting Bolt Hole Diameter | 100.000 |
| Mounting Bolt Hole Quantity | 4 |
| Nominal Thickness | 0.394 |
| Nominal Thickness | 10.000 |
| Outside Diameter | 9.400 |
| Outside Diameter | 238.750 |
| Overall Height | 1.895 |
| Overall Height | 48.150 |
| Solid Or Vented Type Rotor | Solid |
| Stud/Lug Hole Quantity | 4 |
This part fits 30 vehicles. Search below:
| Year | Make | Model | Submodel | Body Type | Position | Notes |
|---|---|---|---|---|---|---|
| 2001 | Acura | Integra | LS | Rear | Replaces 96068; Raybestos R-Line | |
| 2000 | Acura | Integra | LS | Rear | Replaces 96068; Raybestos R-Line | |
| 2000 | Honda | Civic | Si | Rear | Replaces 96068; Raybestos R-Line | |
| 1999 | Acura | Integra | LS | Rear | Replaces 96068; Raybestos R-Line | |
| 1999 | Honda | Civic | Si | Rear | Replaces 96068; Raybestos R-Line | |
| 1998 | Acura | Integra | RS | Rear | Replaces 96068; Raybestos R-Line | |
| 1997 | Acura | Integra | RS | Rear | Replaces 96068; Raybestos R-Line | |
| 1997 | Honda | Civic del Sol | VTEC | Rear | Replaces 96068; Raybestos R-Line | |
| 1996 | Acura | Integra | Rear | Replaces 96068; Raybestos R-Line | ||
| 1996 | Honda | Civic del Sol | VTEC | Rear | Replaces 96068; Raybestos R-Line | |
| 1995 | Acura | Integra | Rear | Replaces 96068; Raybestos R-Line | ||
| 1995 | Honda | Civic | Si | Hatchback | Rear | Replaces 96068; Raybestos R-Line |
| 1995 | Honda | Civic del Sol | VTEC | Rear | Replaces 96068; Raybestos R-Line | |
| 1994 | Acura | Integra | Rear | R-Line | ||
| 1994 | Honda | Civic | Si | Hatchback | Rear | Replaces 96068; Raybestos R-Line |
| 1994 | Honda | Civic del Sol | VTEC | Rear | Replaces 96068; Raybestos R-Line | |
| 1993 | Acura | Integra | Rear | R-Line | ||
| 1993 | Honda | Civic | Si | Hatchback | Rear | Replaces 96068; Raybestos R-Line |
| 1993 | Honda | Civic del Sol | Rear | Replaces 96068; Raybestos R-Line | ||
| 1992 | Acura | Integra | Rear | R-Line | ||
| 1992 | Honda | Civic | Si | Hatchback | Rear | Replaces 96068; Raybestos R-Line |
| 1991 | Acura | Integra | Rear | R-Line | ||
| 1991 | Honda | CRX | Si | Rear | R-Line | |
| 1991 | Honda | Prelude | Rear | R-Line | ||
| 1990 | Acura | Integra | Rear | R-Line | ||
| 1990 | Honda | CRX | Si | Rear | R-Line | |
| 1990 | Honda | Prelude | Rear | R-Line | ||
| 1989 | Honda | Accord | SEi | Rear | R-Line | |
| 1989 | Honda | Prelude | Rear | R-Line | ||
| 1988 | Honda | Prelude | Rear | R-Line |
* Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
This part directly replaces or is cross-referenced with the following part numbers:
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
