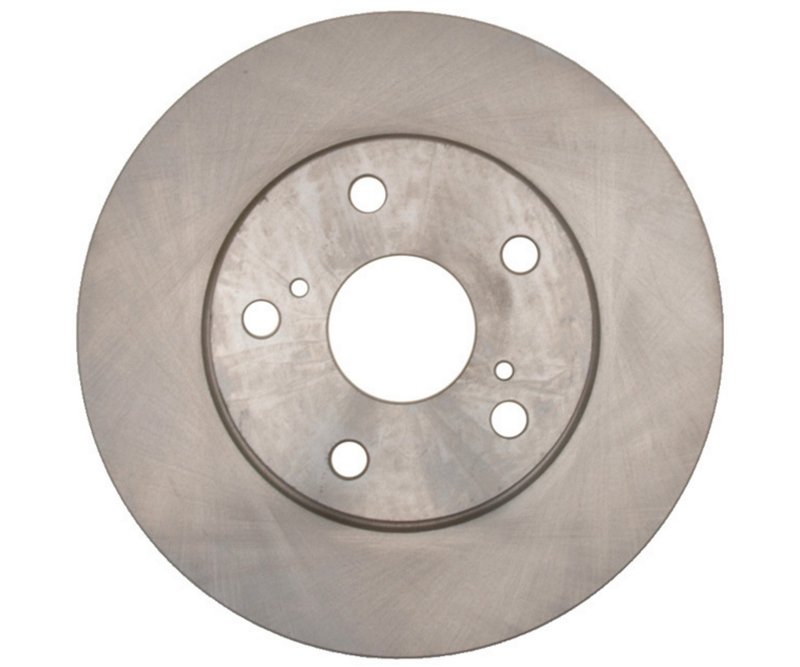

Raybestos 96113R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 96113R

The Raybestos R-Line 96113R disc brake rotor is engineered for reliable braking performance on Toyota Cressida models. Designed as a vented, conventional rotor, it offers consistent heat dissipation and durability for everyday driving conditions.

• Compatible with Toyota Cressida vehicles
• Vented disc brake rotor design for improved cooling
• Overall diameter of 10.980 inches (278.9 mm)
• Nominal thickness of 0.875 inches (22.2 mm) with discard thickness at 0.819 inches (20.8 mm)
• Five mounting bolt holes with a 4.5 inch (114.3 mm) bolt circle diameter
• Center hole diameter of 2.363 inches (60 mm)
• Conventional rotor type suitable for standard braking systems

Raybestos R-Line Product Line Details

The R-Line by Raybestos focuses on providing dependable replacement brake components that meet or exceed OEM specifications. This product line emphasizes quality materials and precise manufacturing tolerances, ensuring that the 96113R rotor maintains proper fitment and performance for Toyota Cressida vehicles requiring vented, conventional rotors.

Technical Specifications and Features

The 96113R rotor features a vented design that enhances heat dissipation during braking, reducing the risk of brake fade under normal driving conditions. With an outside diameter of 10.980 inches and an overall height of 2.680 inches (68.05 mm), this rotor fits securely on the Toyota Cressida's hub assembly. The nominal thickness of 0.875 inches (22.2 mm) ensures sufficient material for longevity, while the discard thickness of 0.819 inches (20.8 mm) indicates when replacement is necessary to maintain safe braking performance. The rotor includes five mounting bolt holes with a 0.563 inch (14.3 mm) diameter, arranged on a 4.5 inch (114.3 mm) bolt circle, matching the vehicle's hub specifications.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor thickness below manufacturer safety limits
• Improving heat dissipation to reduce brake fade during extended use
• Restoring proper rotor dimensions for consistent brake pad contact
• Ensuring compatibility with Toyota Cressida's conventional braking system

Installation Notes and Tips

When installing the Raybestos R-Line 96113R rotor, ensure the hub surface is clean and free of rust or debris to promote proper rotor seating. Verify that the mounting bolt holes align correctly with the vehicle’s hub assembly. It is recommended to replace brake pads simultaneously to optimize braking performance. Torque mounting bolts to manufacturer specifications and check for any signs of rotor runout after installation.

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet OEM standards, providing consistent quality and fitment for Toyota Cressida vehicles. While specific warranty details for part number 96113R are not provided here, Raybestos typically offers limited warranties covering defects in materials and workmanship. Users should consult product documentation or Raybestos directly for warranty terms.
