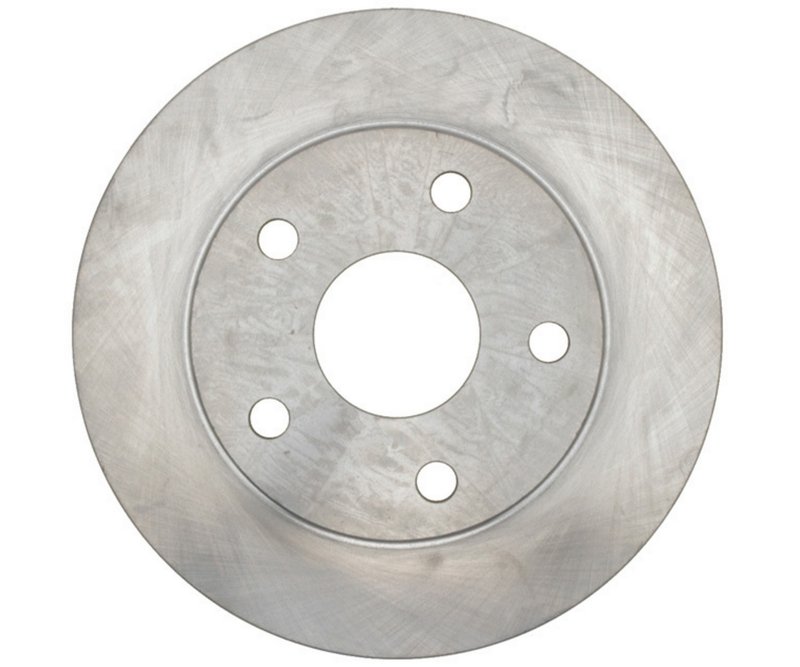

Raybestos 96174R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 96174R

The Raybestos R-Line Disc Brake Rotor 96174R is engineered for reliable braking performance on Toyota Previa models. This vented, conventional rotor is designed to meet precise fitment specifications, ensuring consistent stopping power and durability.

• Compatible with Toyota Previa vehicles
• Part number 96174R for exact replacement
• Vented disc brake rotor design for improved heat dissipation
• Overall height: 2.075 inches (52.7 mm)
• Outside diameter: 10.020 inches (254.5 mm)
• Mounting bolt hole quantity: 5 with 4.5 inch (114.3 mm) bolt circle diameter
• Center hole diameter: 2.442 inches (62.05 mm)
• Nominal thickness: 0.985 inches (25.0 mm)
• Discard thickness: 0.906 inches (23.0 mm)

Detailed Product Description

The Raybestos R-Line 96174R disc brake rotor is a vented, conventional type rotor designed specifically for Toyota Previa models. Its vented construction allows for enhanced heat dissipation during braking, reducing the risk of brake fade under normal driving conditions. The rotor measures 10.020 inches (254.5 mm) in outside diameter and has an overall height of 2.075 inches (52.7 mm), matching OEM specifications for proper fit and function.

This rotor features five mounting bolt holes arranged on a 4.5 inch (114.3 mm) bolt circle diameter, with a center hole diameter of 2.442 inches (62.05 mm), ensuring precise alignment and secure installation. The nominal thickness of 0.985 inches (25.0 mm) provides a solid braking surface, while the discard thickness of 0.906 inches (23.0 mm) indicates the minimum safe thickness before replacement is necessary.

About the Raybestos R-Line Product Line

The R-Line by Raybestos is a product line focused on delivering reliable, OEM-quality brake components designed to meet or exceed factory specifications. The R-Line disc brake rotors, including part number 96174R, are engineered for consistent performance and durability, making them suitable for routine maintenance and replacement on compatible vehicles such as the Toyota Previa.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors causing brake pulsation
• Restores braking efficiency lost due to rotor thickness below discard limits
• Addresses noise and vibration issues related to uneven rotor surfaces
• Improves heat dissipation to reduce brake fade during extended use
• Ensures proper fitment for Toyota Previa brake systems

Installation Notes and Tips

• Verify rotor dimensions and bolt pattern match your Toyota Previa before installation
• Inspect brake pads and hardware for wear and replace as necessary
• Clean rotor surface with brake cleaner to remove any protective coatings before installation
• Torque mounting bolts to manufacturer specifications to ensure secure fit
• Perform a bed-in procedure after installation to optimize braking performance

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring consistent performance and durability. While specific warranty details for part number 96174R may vary, Raybestos typically offers limited warranties covering defects in materials and workmanship. Consult product documentation or the manufacturer for exact warranty terms.
