Raybestos 96178R Disc Brake Rotor - Rear
OE Quality 60-Day Returns
Raybestos
 R-Line

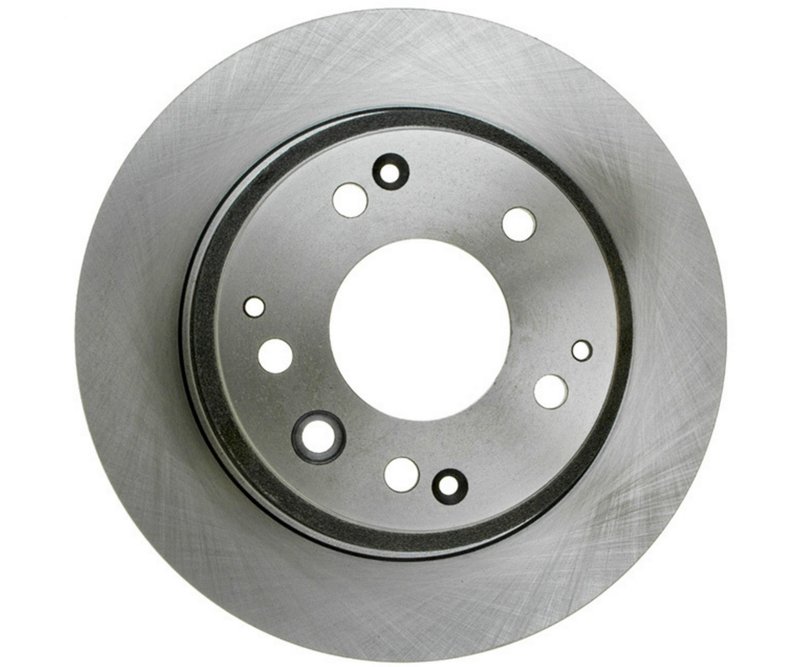

Raybestos 96178R Disc Brake Rotor - Rear

Brand Raybestos 96178R
Position Rear
Discard Thickness 0.295
Discard Thickness 7.500
Nominal Thickness 0.355
Nominal Thickness 9.000
Overall Height 2.400
Overall Height 60.950
Outside Diameter 11.100
Outside Diameter 281.950
Mounting Bolt Hole Quantity 5
Solid Or Vented Type Rotor Vented
Center Hole Diameter 2.763
Center Hole Diameter 70.200
Mounting Bolt Hole Circle Diameter 114.300
Mounting Bolt Hole Circle Diameter 4.500
Mounting Bolt Hole Diameter 0.500
Mounting Bolt Hole Diameter 12.700
Stud/Lug Hole Quantity 5
Conventional Or Drum-In-Hat Type Rotor Drum-in-hat
Product line R-Line
Fits Acura, Honda, and Isuzu · 16 vehicles

Vented design. Helps move heat away from the braking surface for more stable performance.

Drum-in-hat construction. Matches rear brake systems that use an integrated parking brake inside the rotor.

R-Line replacement. Raybestos replacement line for everyday brake service applications.

Cross-references Anchor 9692, AP Exhaust 78296 and Beck/Arnley 083-2469 for the same application. See all 77.

$47.70Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing β€” free returns if it doesn't
Step 2 — Quantity
Disc Brake Rotors are typically replaced in pairs, axle by axle.
Order total $47.70
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Disc Brake Rotor options

Overview

Raybestos R-Line disc brake rotor 96178R is a vented, drum-in-hat rear rotor built to match the listed applications. It is specified for rear brake service on select Acura, Honda, and Isuzu models, including Acura RL, Honda Odyssey, Acura Legend, and Isuzu Oasis.

Use this rotor when you need a direct-fit replacement for rear brake maintenance on the correct application. The 96178R part number is also referenced across multiple aftermarket listings for the same fitment.

Key Features

  • Vented rotor design for improved heat dissipation during braking.
  • Drum-in-hat construction for vehicles using an integrated parking brake setup.
  • 5-lug pattern with a 4.500-inch bolt circle and 5 mounting bolt holes.
  • 11.100-inch outside diameter and 2.400-inch overall height.
  • Raybestos R-Line replacement rotor, part number 96178R.

Detailed Description

The Raybestos 96178R is a rear disc brake rotor engineered for the specified Acura, Honda, and Isuzu applications. Its vented construction helps move air through the rotor, while the drum-in-hat layout matches vehicles that use a drum-style parking brake inside the rotor hat. With the listed thickness, center bore, and bolt pattern dimensions, this rotor is intended to align with the original brake package on the covered vehicles.

Compatible With 1991-1995 Acura Legend, rear; 1995-1998 Honda Odyssey, rear; 1996-1998 Acura RL, rear; and 1996-1999 Isuzu Oasis, rear. This part cross-references Centric Parts (e.g., 120.40027, 121.40027) for the same application. The 96178R part number is useful when matching replacement rotors across catalogs for these rear brake applications.

What It Helps Address

  • Brake pulsation caused by worn or out-of-spec rotor surfaces.
  • Reduced braking consistency from heat buildup in the rotor.
  • Parking brake service needs on drum-in-hat rear brake systems.
  • Fitment issues when replacing a rear rotor with the wrong bolt pattern or dimensions.

Installation Notes and Tips

Verify rear fitment against the vehicle application before ordering. Confirm the rotor dimensions, 5-lug bolt pattern, and drum-in-hat design match the existing brake setup. Inspect pads, caliper hardware, and parking brake components during service so the new rotor can seat properly.

Quality Assurance

Raybestos R-Line is positioned as a replacement brake line for everyday service applications. The 96178R rotor follows the listed dimensional specifications and application coverage for the referenced vehicles.

Related reading

This part fits 16 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
1999IsuzuOasisRearR-Line
1998AcuraRLRearR-Line
1998HondaOdysseyRearR-Line
1998IsuzuOasisRearR-Line
1997AcuraRLRearR-Line
1997HondaOdysseyRearR-Line
1997IsuzuOasisRearR-Line
1996AcuraRLRearR-Line
1996HondaOdysseyRearR-Line
1996IsuzuOasisRearR-Line
1995AcuraLegendRearR-Line
1995HondaOdysseyRearR-Line
1994AcuraLegendRearR-Line
1993AcuraLegendRearR-Line
1992AcuraLegendRearR-Line
1991AcuraLegendRearR-Line
Directly replaces or cross-references 77 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
Anchor — 9692AP Exhaust — 78296Beck/Arnley — 083-2469Bosch — 26010748Brembo — 08.6898.10Centric Parts — 120.40027Centric Parts — 121.40027Centric Parts — 320.40027DuraGo — BR31105Four Seasons — 45001Nissens — 96178NTK — 25191Promax — 14-31105Raybestos Brakes — 96178RStopTech — 126.40027SLStopTech — 126.40027SRStopTech — 127.40027LStopTech — 127.40027R52-12522164-71-100080-246981-125221083-275589-08028125.40027126.40027CSL126.40027CSR128.40027CL128.40027CR128.40027L128.40027R789-080283110531105B31105DG42510SP000042510SX000096178RGS115765125221141514210861-C3253684411354711005261814616178862029738620297458620297305862029740A31105AX31105BD125221BDC4840BR02038BR1742CW09714D17683DF4005SDF7792SHO559JBR529JBR529EJBR529EVCP125221PS31105Q202R71100RB427RBR31105SB96178TSR417X50908YH1135YH141514YH141514C
