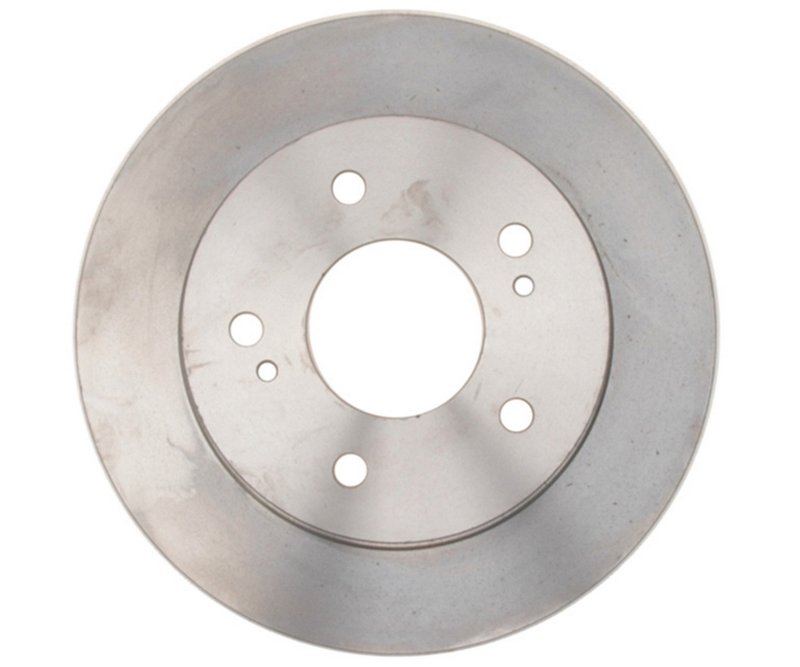

Raybestos 96208R Disc Brake Rotor - Rear

Overview of Raybestos R-Line Disc Brake Rotor 96208R

The Raybestos R-Line Disc Brake Rotor 96208R is engineered for reliable braking performance on Nissan Maxima models. This solid rotor is designed to meet precise specifications, ensuring consistent stopping power and durability.

• Compatible with Nissan Maxima vehicles
• Part number 96208R for accurate identification
• Solid disc brake rotor design
• Overall height: 1.755 inches (44.600 mm)
• Outside diameter: 10.150 inches (257.800 mm)
• Mounting bolt hole quantity: 5 with 0.500 inch (12.700 mm) diameter
• Center hole diameter: 2.680 inches (68.050 mm)
• Nominal thickness: 0.355 inches (9.000 mm)
• Discard thickness: 0.315 inches (8.000 mm)
• Conventional rotor type

Raybestos R-Line Product Line Details

The R-Line by Raybestos focuses on delivering dependable brake components that meet OEM specifications. This product line emphasizes solid rotors designed for conventional braking systems, providing consistent thickness and dimensions to maintain proper brake function and safety. The 96208R rotor exemplifies the R-Line’s commitment to quality and fitment accuracy for Nissan Maxima vehicles.

Technical Specifications and Features

The 96208R disc brake rotor features a solid construction with a nominal thickness of 0.355 inches (9.000 mm) and a discard thickness of 0.315 inches (8.000 mm), ensuring it can be resurfaced within safe limits. Its overall height measures 1.755 inches (44.600 mm), and the outside diameter is 10.150 inches (257.800 mm), matching Nissan Maxima factory dimensions. The rotor includes five mounting bolt holes with a diameter of 0.500 inches (12.700 mm) arranged on a 4.500 inch (114.300 mm) bolt circle diameter, and a center hole diameter of 2.680 inches (68.050 mm) for proper hub fitment.

Applications and Problem Solving

• Replacement for worn or warped rotors on Nissan Maxima
• Addresses brake pulsation caused by uneven rotor surfaces
• Restores proper rotor thickness for safe braking performance
• Eliminates noise and vibration from damaged rotors
• Compatible with conventional drum-in-hat brake systems

Installation Notes and Tips

• Verify rotor dimensions against vehicle specifications before installation
• Ensure mounting surfaces and hub are clean and free of debris
• Torque mounting bolts to manufacturer recommended specifications
• Inspect brake pads and replace if worn to prevent uneven rotor wear
• Check rotor thickness regularly to avoid discarding below minimum thickness

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet or exceed OEM standards for fit, form, and function. While specific warranty details for part number 96208R should be confirmed with the supplier, Raybestos products typically come with a limited warranty covering defects in materials and workmanship to ensure reliability and customer confidence.
