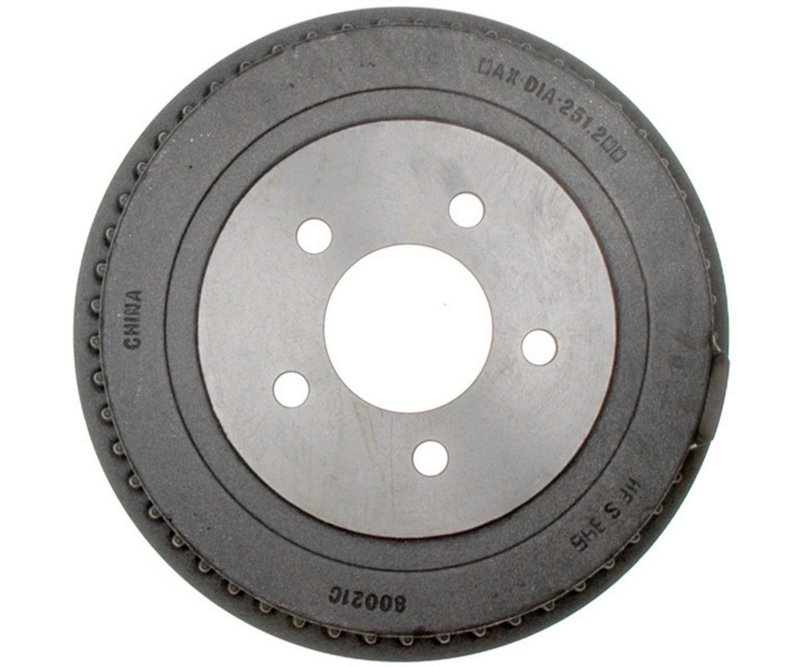

Raybestos 9622R Brake Drum - Rear

Overview of Raybestos R-Line 9622R Brake Drum

The Raybestos R-Line 9622R brake drum is engineered for reliable performance on Chrysler, Dodge, and Plymouth vehicles. Designed specifically for models like the Caravan, Grand Caravan, Grand Voyager, Town & Country, and Voyager, this brake drum ensures proper fitment and consistent braking function.

• Outside Diameter: 12.100 inches
• Depth: 2.720 inches
• Nominal Drum Diameter: 9.900 inches
• Includes Outer Cooling Fins for heat dissipation
• 5 Stud/Lug Holes with 0.569 inch diameter

Detailed Product Specifications

The 9622R brake drum from Raybestos features a 12.100-inch outside diameter and a 2.720-inch depth, providing the necessary dimensions for proper engagement with brake shoes. The nominal drum diameter measures 9.900 inches, matching the original equipment specifications for compatible Chrysler, Dodge, and Plymouth minivans. This brake drum includes outer cooling fins designed to improve heat dissipation during braking, which helps maintain consistent performance and reduces the risk of brake fade. The 5 stud/lug hole configuration with a diameter of 0.569 inches ensures secure mounting on the vehicle hub.

R-Line Product Line Information

The Raybestos R-Line is a product line focused on delivering dependable brake components that meet or exceed OEM standards. The R-Line brake drums are manufactured with precision to provide consistent dimensions and reliable braking performance. This line is suitable for drivers seeking replacement parts that maintain factory specifications without compromise.

Applications and Problem Solving

• Replacement for worn or scored brake drums on Chrysler Caravan and Dodge Grand Caravan
• Restores braking efficiency on Plymouth Voyager and Town & Country models
• Addresses issues related to brake noise and vibration caused by damaged drums
• Helps prevent brake fade through improved heat dissipation with cooling fins
• Ensures proper fitment and alignment with 5-lug wheel configurations

Installation Notes and Tips

When installing the Raybestos R-Line 9622R brake drum, ensure the hub surface is clean and free of debris to promote proper seating. Verify the stud/lug hole alignment matches the vehicle’s wheel pattern. It is recommended to inspect brake shoes and hardware for wear and replace as necessary to maintain optimal braking performance. Proper torque specifications should be followed when securing the drum to avoid warping.

Quality Assurance and Warranty

Raybestos manufactures the R-Line 9622R brake drum to meet stringent quality standards, ensuring durability and consistent performance. While specific warranty details may vary, Raybestos products typically come with a limited warranty against defects in material and workmanship. Always consult product documentation or the manufacturer for exact warranty terms.
