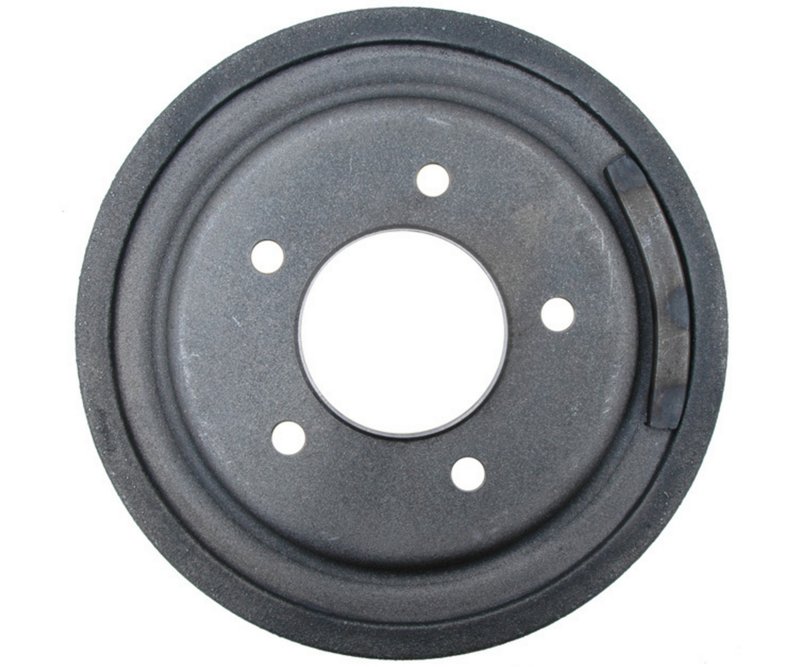

Raybestos 9626R Brake Drum - Rear
| Brand | Raybestos 9626R |
|---|---|
| Position | Rear |
| Depth | 2.830 |
| Depth | 71.900 |
| Nominal Drum Diameter | 0.438 |
| Nominal Drum Diameter | 11.100 |
| Outer Cooling Fins | No |
| Outside Diameter | 0.502 |
| Outside Diameter | 12.750 |
| Stud/Lug Hole Diameter | 0.566 |
| Stud/Lug Hole Diameter | 14.400 |
| Stud/Lug Hole Quantity | 5 |
| Product line | R-Line |
| Fits | Ford · 5 vehicles |
Brake drum. Precision-machined for dependable braking performance.
R-Line quality. Raybestos engineering delivers consistent fit and function.
Cross-references Anchor 9626, Centric Parts 122.65038 and Centric Parts 123.65038 for the same application. See all 39.
Will it fit your vehicle?
Free return shipping if it doesn't fit.
Raybestos R-Line Brake Drum 9626R Overview
The Raybestos R-Line 9626R brake drum is a rear drum brake replacement built around the listed OE-style dimensions for select Ford truck applications. It features a 12.750-inch outside diameter, 2.830-inch depth, and a 5-lug mounting pattern for direct-fit service on the specified vehicles.
Compatible with 1997-2000 Ford F-150 rear applications and 1997 Ford F-250 HD rear applications, this brake drum is sized for vehicles with 12 mm bolts and 5 stud mounting where noted. The Raybestos 9626R is a practical choice when restoring rear braking performance on Ford F-150 and Ford F-250 HD models.
Key Features
- Raybestos R-Line brake drum for rear axle service
- 12.750-inch outside diameter and 2.830-inch depth
- 11.100-inch nominal drum diameter
- 5 stud/lug holes with 14.400 mm lug hole diameter
- No outer cooling fins
- OE-style fitment for select Ford truck rear brake applications
Product Details
The Raybestos R-Line 9626R brake drum is engineered to match the listed dimensions and mounting layout for the specified Ford applications. Its 12.750-inch outside diameter and 71.900 mm depth support proper drum brake geometry, while the 5-lug configuration and 14.400 mm stud hole diameter align with the rear hub setup on the covered vehicles. For buyers searching for a rear brake drum for a 1997-2000 Ford F-150 or a 1997 Ford F-250 HD, this part number provides a direct reference point for service and replacement.
The Raybestos R-Line focuses on dependable replacement parts for everyday brake service. This part cross-references Anchor 9626 for the same application.
Common Reasons to Replace
- Rear brake pulsation or uneven braking feel
- Drum scoring, heat checking, or wear beyond service limits
- Out-of-round drum condition affecting brake shoe contact
- Noise from worn rear drum brake components
- Restoration of rear brake performance on Ford F-150 and Ford F-250 HD trucks
Installation Notes
Verify rear axle fitment by matching the vehicle year, model, and the listed notes before installation. Confirm the 12 mm bolt requirement and 5-stud mounting configuration on the application. Inspect brake shoes, wheel cylinders, and related hardware for wear before installing the new drum, and clean the hub mounting surface to help ensure proper seating.
Quality Assurance
Raybestos is a recognized brake parts brand with a broad aftermarket catalog, and the R-Line is positioned as its service replacement line for common brake repairs. The 9626R is built to the listed dimensional and fitment specifications for the covered Ford rear brake applications.
| Year | Make | Model | Position | Notes |
|---|---|---|---|---|
| 2000 | Ford | F-150 | Rear | with 12 MM Bolts; with 5 Stud Mounting; R-Line |
| 1999 | Ford | F-150 | Rear | with 12 MM Bolts; with 5 Stud Mounting; R-Line |
| 1998 | Ford | F-150 | Rear | with 12 MM Bolts; with 5 Stud Mounting; R-Line |
| 1997 | Ford | F-150 | Rear | with 12 MM Bolts; with 5 Stud Mounting; R-Line |
| 1997 | Ford | F-250 HD | Rear | Replaces 109626; Raybestos R-Line |
