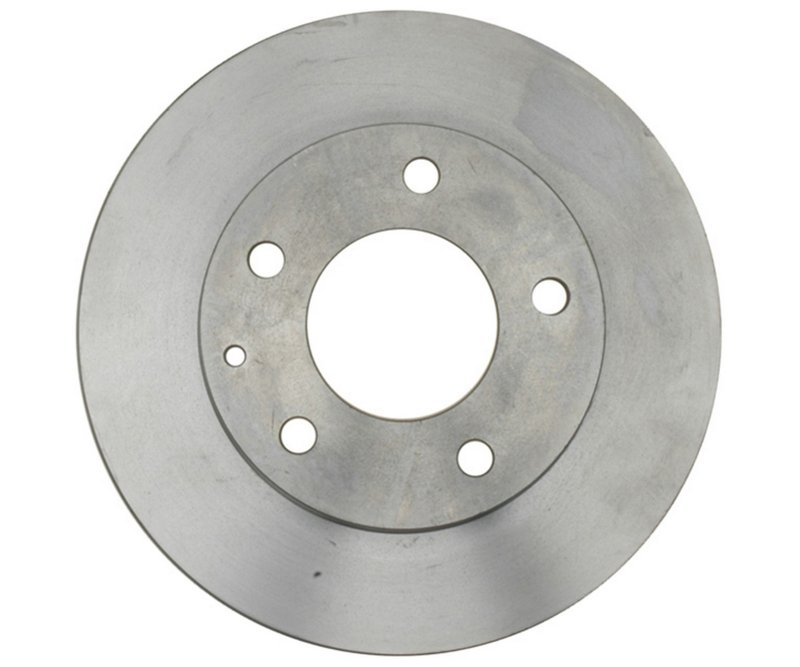

Raybestos 96278R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 96278R

The Raybestos R-Line Disc Brake Rotor 96278R is engineered for reliable braking performance on Mazda MPV vehicles. Designed as a vented, conventional rotor, it offers precise fitment and consistent stopping power tailored to this specific make and model.

• Compatible with Mazda MPV models
• Vented disc brake rotor design for improved heat dissipation
• Overall diameter of 10.070 inches (255.8 mm)
• Nominal thickness of 1.180 inches (29.95 mm) with discard thickness at 1.102 inches (28.00 mm)
• Five mounting bolt holes with a 4.5 inch (114.3 mm) bolt circle diameter
• Center hole diameter of 2.834 inches (72.00 mm)
• Conventional rotor type suitable for standard braking systems

Detailed Product Description

The Raybestos R-Line 96278R disc brake rotor is designed specifically for Mazda MPV vehicles, ensuring proper fit and function. This rotor features a vented design that helps dissipate heat more effectively during braking, reducing the risk of brake fade under normal driving conditions. The rotor's overall diameter measures 10.070 inches (255.8 mm), with a nominal thickness of 1.180 inches (29.95 mm), providing a solid braking surface. When the rotor thickness reaches the discard thickness of 1.102 inches (28.00 mm), replacement is recommended to maintain braking efficiency and safety.

The rotor includes five mounting bolt holes arranged on a 4.5 inch (114.3 mm) bolt circle diameter, matching the Mazda MPV's hub specifications. The center hole diameter of 2.834 inches (72.00 mm) ensures proper alignment and fitment. This conventional rotor type is compatible with standard drum-in-hat braking systems commonly found on the Mazda MPV.

About the Raybestos R-Line Product Line

The R-Line by Raybestos is a product line focused on delivering reliable, OEM-quality brake components designed for specific vehicle applications. The R-Line rotors, including the 96278R, are engineered to meet or exceed original equipment specifications, providing consistent performance and durability for vehicles like the Mazda MPV. This line emphasizes precise fitment and dependable braking characteristics without unnecessary features.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors on Mazda MPV
• Improves braking performance by restoring proper rotor thickness
• Reduces brake noise and vibration caused by uneven rotor surfaces
• Helps prevent brake fade through vented rotor design
• Ensures safe and consistent stopping power under normal driving conditions

Installation Notes and Tips

• Verify rotor thickness before installation; replace if below discard thickness of 1.102 inches (28.00 mm)
• Ensure mounting surfaces are clean and free of debris for proper rotor seating
• Torque mounting bolts to manufacturer specifications to avoid rotor warping
• Inspect brake pads and replace if worn to maintain optimal braking performance
• Perform a test drive to confirm proper brake operation after installation

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring consistent dimensions and material integrity. While specific warranty details for part number 96278R may vary, Raybestos typically offers limited warranties covering defects in materials and workmanship. Users should consult product documentation or contact authorized sources for exact warranty terms related to this disc brake rotor.
