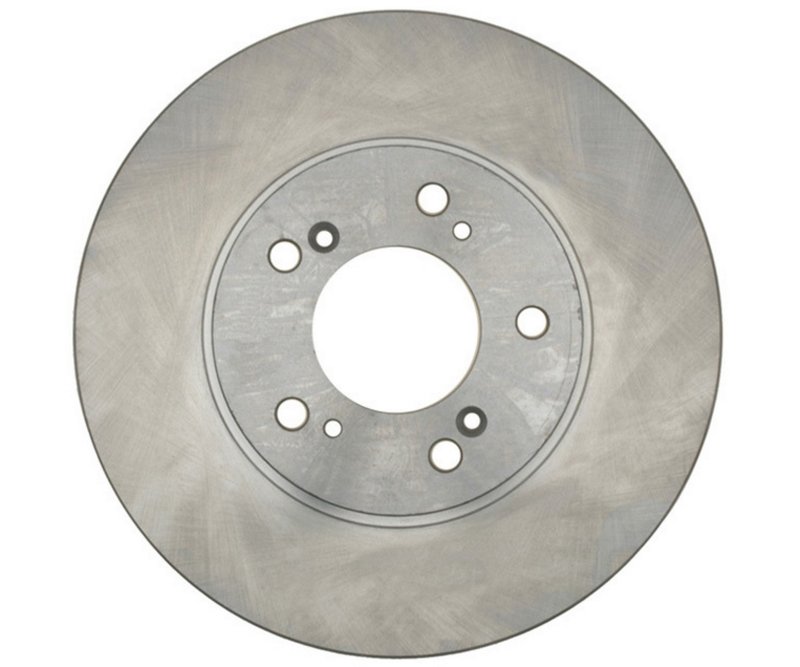

Raybestos 96364R Disc Brake Rotor - Front

Overview of Raybestos R-Line Disc Brake Rotor 96364R

The Raybestos R-Line Disc Brake Rotor 96364R is engineered for Acura Legend models, providing reliable braking performance with precise fitment. Designed as a vented, conventional rotor, it meets specific thickness and dimension requirements to ensure optimal operation.

• Compatible with Acura Legend vehicles
• Vented disc brake rotor for improved heat dissipation
• Nominal thickness of 1.105 inches (28.050 mm)
• Discard thickness of 1.023 inches (26.000 mm)
• Outside diameter of 11.100 inches (281.950 mm)
• Five mounting bolt holes with a 4.500 inch (114.300 mm) bolt circle diameter
• Center hole diameter of 2.763 inches (70.200 mm)
• Overall height of 1.855 inches (47.100 mm)

Detailed Specifications and Features

This Raybestos R-Line rotor (part number 96364R) is a vented, conventional disc brake rotor designed specifically for Acura Legend models. The vented design enhances cooling by allowing air to flow between the rotor surfaces, reducing the risk of brake fade during extended use. The rotor's nominal thickness is 1.105 inches (28.050 mm), with a discard thickness of 1.023 inches (26.000 mm), indicating when the rotor should be replaced to maintain safe braking performance.

The rotor measures 11.100 inches (281.950 mm) in outside diameter and has an overall height of 1.855 inches (47.100 mm). It features five mounting bolt holes arranged on a 4.500 inch (114.300 mm) bolt circle diameter, with each bolt hole measuring 0.500 inches (12.700 mm) in diameter. The center hole diameter is 2.763 inches (70.200 mm), ensuring proper alignment on the vehicle hub.

Raybestos R-Line Product Line Information

The R-Line by Raybestos is a product line focused on delivering reliable, OEM-quality brake components designed to meet or exceed factory specifications. This line emphasizes precise fitment and consistent performance, making it suitable for drivers seeking dependable replacement parts for their Acura Legend. The 96364R rotor exemplifies the R-Line's commitment to quality and durability in braking components.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing rotor thickness below manufacturer discard limits
• Improving heat dissipation to reduce brake fade during heavy use
• Resolving noise or vibration issues related to rotor surface irregularities
• Ensuring proper fitment for Acura Legend brake systems

Installation Notes and Tips

• Verify rotor dimensions and bolt pattern match your Acura Legend before installation
• Inspect brake pads and hardware for wear and replace as necessary
• Clean rotor surfaces with brake cleaner to remove any protective coatings
• Torque mounting bolts to manufacturer specifications to avoid rotor warping
• Perform a proper bed-in procedure after installation for optimal braking performance

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring consistent performance and durability. While specific warranty details for part number 96364R may vary, Raybestos typically offers limited warranties covering defects in materials and workmanship. Always consult product documentation or contact the manufacturer for precise warranty information.
