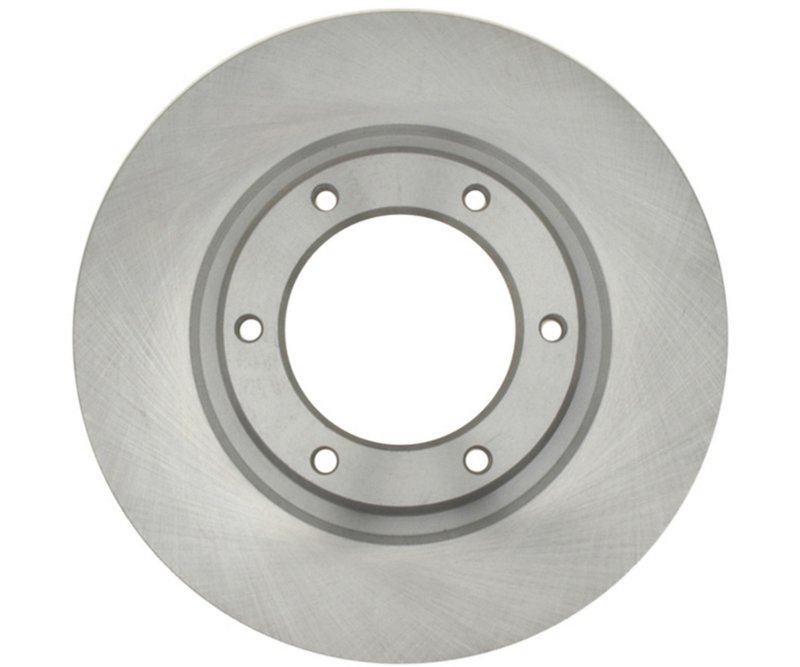

Raybestos 96386R Disc Brake Rotor - Front

Reliable Disc Brake Rotor for Lexus Land Cruiser and Toyota LX450

The Raybestos R-Line 96386R disc brake rotor is engineered to meet the braking demands of Lexus Land Cruiser and Toyota LX450 vehicles. Designed with precision, this vented rotor ensures consistent performance and heat dissipation for enhanced braking efficiency.

• Vented disc brake rotor for improved cooling
• Nominal thickness of 1.260 inches (32.000 mm) with discard thickness at 1.181 inches (30.000 mm)
• Overall height of 2.295 inches (58.300 mm)
• Outside diameter measuring 12.260 inches (311.400 mm)
• Six mounting bolt holes and stud/lug holes for secure fitment
• Center hole diameter of 4.135 inches (105.050 mm)
• Conventional rotor type compatible with specified vehicles

Raybestos R-Line Product Line Overview

The R-Line by Raybestos is a product line focused on delivering dependable braking components that meet or exceed OEM specifications. This line emphasizes durability and consistent performance, making it suitable for vehicles like the Lexus Land Cruiser and Toyota LX450 that require reliable stopping power under various driving conditions.

Detailed Product Description and Specifications

The Raybestos R-Line 96386R disc brake rotor features a vented design that promotes effective heat dissipation, reducing the risk of brake fade during extended use. With a nominal thickness of 1.260 inches (32.000 mm) and a discard thickness of 1.181 inches (30.000 mm), this rotor maintains structural integrity and performance throughout its service life. The overall height of 2.295 inches (58.300 mm) and an outside diameter of 12.260 inches (311.400 mm) ensure proper fitment and compatibility with the braking system of Lexus Land Cruiser and Toyota LX450 models. The rotor includes six mounting bolt holes and stud/lug holes, with a center hole diameter of 4.135 inches (105.050 mm), designed for a secure and precise installation.

Common Applications and Problem Solving

• Replacement for worn or warped rotors causing brake pulsation
• Addressing reduced braking efficiency due to rotor thickness below discard limits
• Improving heat dissipation to prevent brake fade during heavy use
• Restoring proper rotor dimensions for smooth braking performance
• Ensuring compatibility with Lexus Land Cruiser and Toyota LX450 brake systems

Installation Notes and Tips

When installing the Raybestos R-Line 96386R rotor, ensure the rotor surface is clean and free of any contaminants. Verify that the mounting bolt holes and center hole align correctly with the vehicle hub. It is recommended to inspect brake pads and hardware during installation to maintain optimal braking performance. Proper torque specifications should be followed for mounting bolts to avoid rotor warping.

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet strict quality standards, ensuring durability and consistent braking performance. While specific warranty details are not provided here, Raybestos products typically come with a limited warranty against defects in material and workmanship. Refer to Raybestos documentation for complete warranty information.
