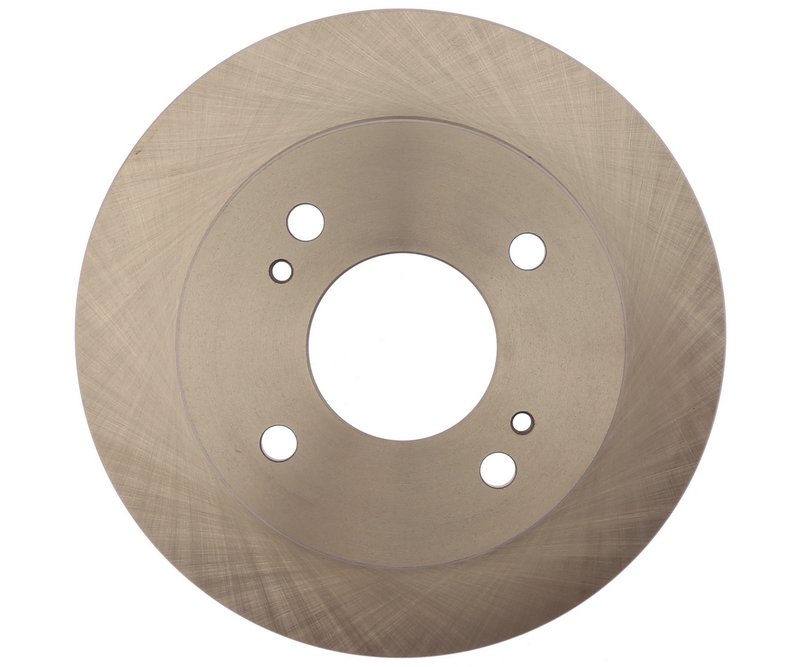

Raybestos 96408R Disc Brake Rotor - Rear

Overview of Raybestos R-Line Disc Brake Rotor 96408R

The Raybestos R-Line Disc Brake Rotor 96408R is engineered for reliable braking performance on select Nissan and INFINITI vehicles. Designed as a vented, conventional rotor, it offers precise fitment for models like the Nissan Altima, G20, and Sentra.

• Vented disc brake rotor for improved heat dissipation
• Nominal thickness of 0.355 inches (9.000 mm) with discard thickness at 0.310 inches (7.850 mm)
• Overall height of 1.755 inches (44.600 mm)
• Outside diameter measures 10.160 inches (258.050 mm)
• Four mounting bolt holes and four stud/lug holes for secure installation
• Center hole diameter of 2.678 inches (68.000 mm) and mounting bolt hole circle diameter of 4.500 inches (114.300 mm)

Detailed Product Description

The Raybestos R-Line 96408R disc brake rotor is a vented, conventional type rotor designed to meet the specific braking requirements of Nissan and INFINITI vehicles, including the Altima, G20, and Sentra models. Its vented design enhances heat dissipation during braking, reducing the risk of brake fade under demanding conditions. The rotor’s nominal thickness of 0.355 inches (9.000 mm) ensures durability and consistent braking performance, while the discard thickness of 0.310 inches (7.850 mm) provides a clear wear limit for safe replacement. With an overall height of 1.755 inches (44.600 mm) and an outside diameter of 10.160 inches (258.050 mm), this rotor fits precisely within the brake assembly specifications for the compatible vehicles. The four mounting bolt holes and stud/lug holes, along with the center hole diameter and mounting bolt hole circle diameter, ensure proper alignment and secure attachment.

About the Raybestos R-Line Product Line

The R-Line by Raybestos is a product line focused on delivering reliable, OEM-quality brake components designed for direct fit applications. This line emphasizes consistent manufacturing standards and material quality to provide dependable braking performance. The 96408R rotor exemplifies the R-Line’s commitment to meeting exact vehicle specifications, making it suitable for Nissan and INFINITI models requiring vented, conventional rotors.

Common Applications and Issues Addressed

• Replacement for worn or warped rotors causing brake pulsation
• Restoring braking efficiency on Nissan Altima, G20, and Sentra models
• Addressing rotor thickness below manufacturer discard limits
• Improving heat dissipation to reduce brake fade during extended use
• Ensuring proper rotor fitment for vehicles with four mounting bolt holes

Installation Notes and Tips

• Verify rotor thickness before installation to ensure it meets minimum discard thickness of 0.310 inches (7.850 mm)
• Clean mounting surfaces to prevent rotor runout and ensure proper fit
• Torque mounting bolts to manufacturer specifications for secure installation
• Inspect brake pads and replace if worn to maintain optimal braking performance
• Perform a test drive to confirm proper brake operation after installation

Quality Assurance and Warranty

Raybestos R-Line rotors are manufactured to meet or exceed OEM standards, ensuring consistent quality and performance. While specific warranty details for part number 96408R should be confirmed with the supplier, Raybestos typically offers coverage against defects in materials and workmanship. This rotor is designed to provide reliable service life when installed and maintained according to vehicle manufacturer guidelines.
